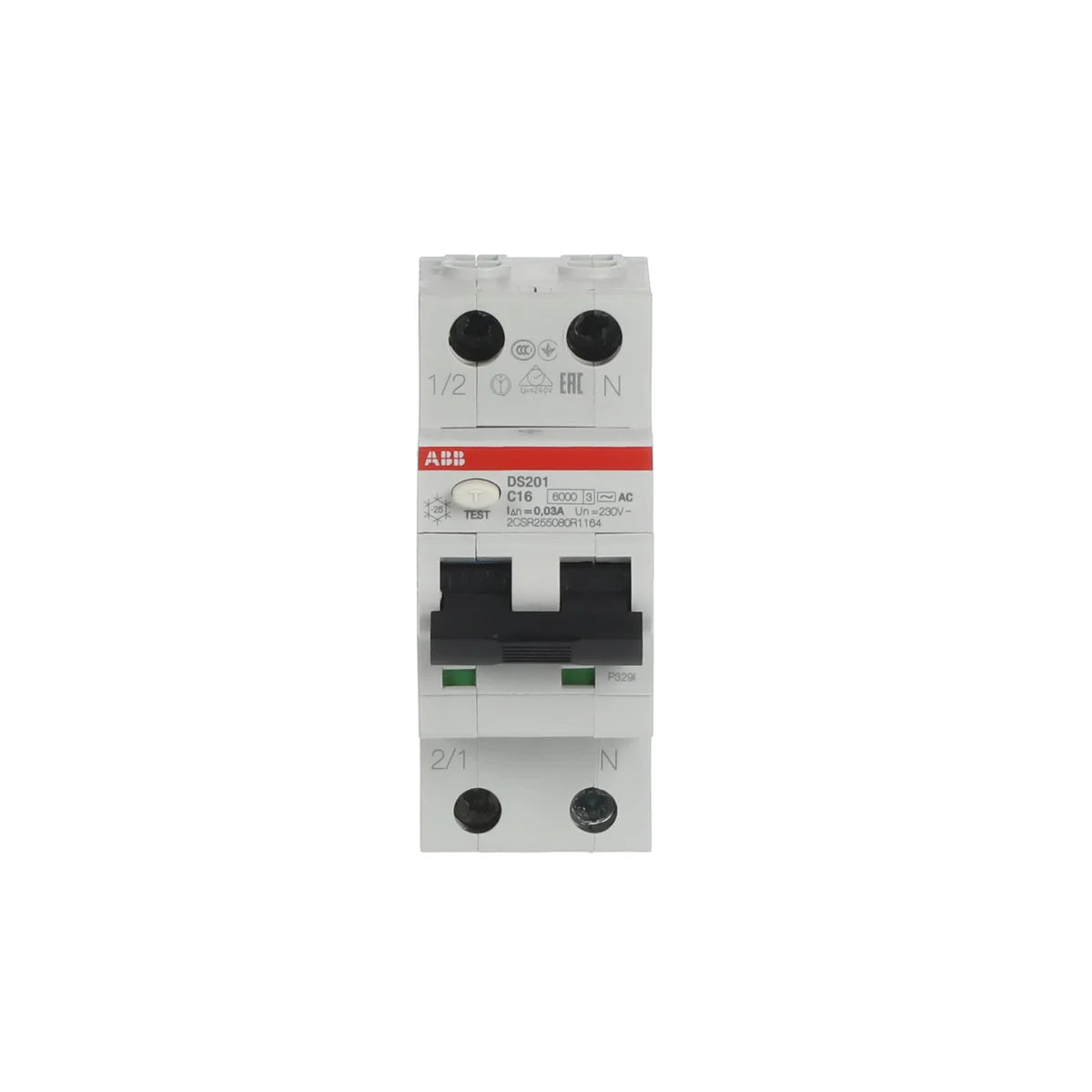

ABB 2CSR255080R1164 DS201 C16 AC30 1P+N 16A 30mA Type AC 6kA Earth Leakage Circuit Breaker RCBO

The ABB DS201 C16 AC30 (SKU: 2CSR255080R1164) is a 1P+N residual current circuit breaker with overcurrent protection (RCBO) rated at 16A, 230V, with a 30mA Type AC residual current sensitivity and a 6kA breaking capacity. Combining overcurrent and earth leakage protection in a single 2-module DIN rail device, the DS201 C16 AC30 delivers reliable personnel and installation protection in residential and light commercial control panels.

Technical Specifications

Certifications & Standards

• IEC 61009-1 / EN 61009-1: Primary standard for residual current operated circuit-breakers with integral overcurrent protection for household and similar uses
• IEC 61009-2-1 / EN 61009-2-1: Particular rules for RCBOs applicable to household and similar applications
• IEC 61009-2 / EN 61009-2: Supplementary requirements for RCBOs
• IEC/EN 61009-1: Combined IEC/EN harmonised standard for RCBOs
• IEC/EN 61009-2: Combined IEC/EN harmonised supplementary standard
• IEC61009 / EN61009: General RCBO compliance family
• IEC 60898: Circuit-breakers for overcurrent protection in household and similar installations
• IEC/EN 60664: Insulation coordination for equipment within low-voltage supply systems
• EN 60664: European harmonised insulation coordination standard
• IEC 60068-2: Environmental testing — general requirements
• IEC 60068-2-6: Environmental testing — vibration (sinusoidal)
• IEC 60068-2-27: Environmental testing — shock
• CE: European Conformity — meets EU Low Voltage and RoHS Directives
• RoHS: Restriction of Hazardous Substances — compliant
• REACH: EU chemical safety regulation compliance
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• EN45555-75: General methods for the assessment of the ability to repair, reuse and recycle electrical/electronic products
• CCC: China Compulsory Certification
• EAC: Eurasian Conformity mark for Russia/CIS markets

Applications & Use Cases

• Final circuit protection in residential distribution boards and consumer units
• Protection of socket outlet circuits requiring 30mA sensitivity per IEC 61009-1
• Light commercial and office electrical installations
• Bathroom, kitchen, and outdoor circuit protection where earth leakage risk is elevated
• Retrofit or new installation in 35mm DIN rail panels requiring combined RCD and MCB functionality in a space-saving 2-module format
