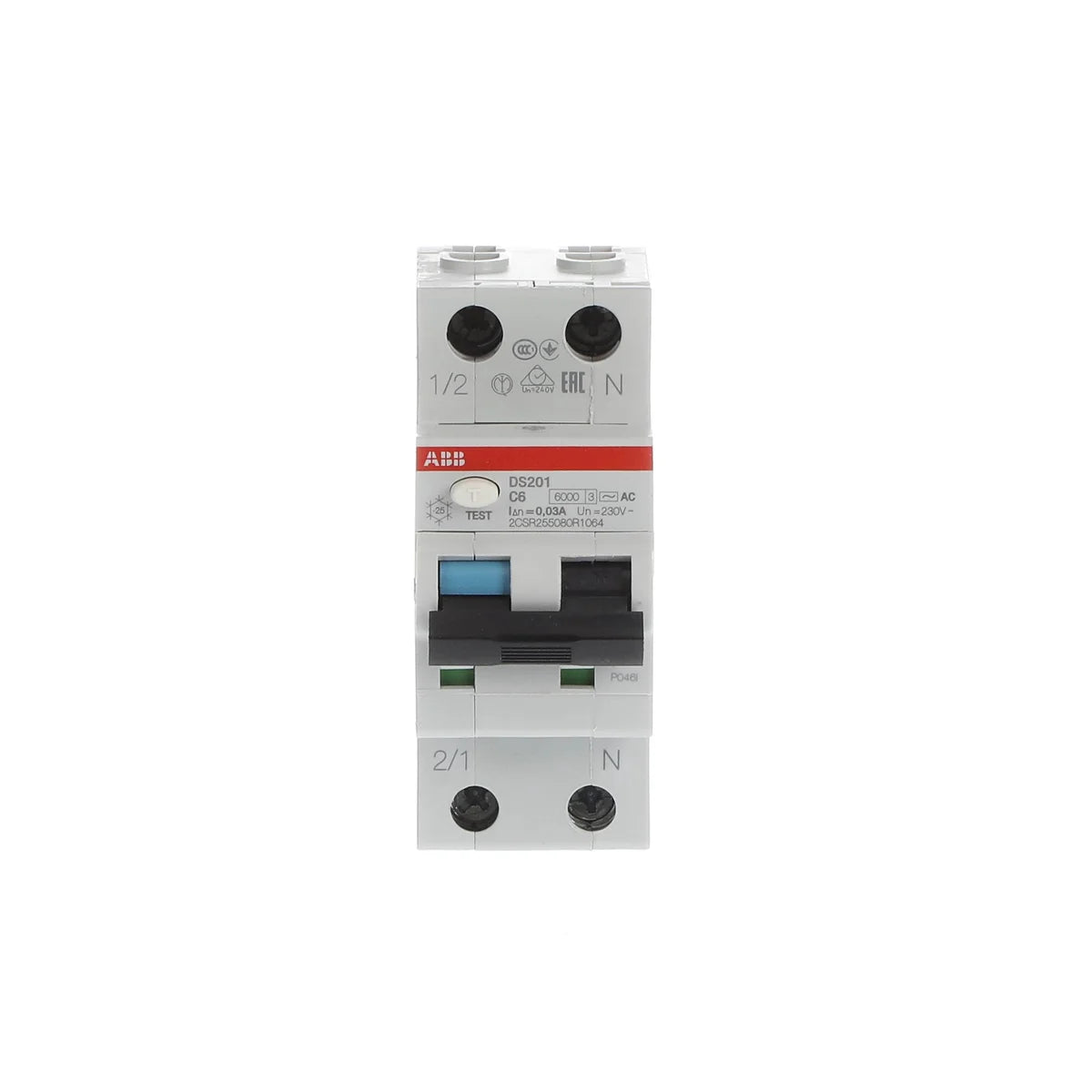

ABB 2CSR255080R1064 DS201 C6 AC30 1P+N 6A 30mA 10kA Type AC Earth Leakage Circuit Breaker RCBO

The ABB DS201 C6 AC30 (SKU: 2CSR255080R1064) is a 1P+N residual current circuit breaker with overcurrent protection (RCBO), rated at 6 A with a 30 mA Type AC residual current sensitivity and a 10 kA breaking capacity. Designed for DIN-rail installation in domestic and light commercial distribution boards, the DS201 C6 AC30 provides simultaneous protection against overload, short-circuit, and earth leakage faults in a compact 35 mm wide, single-module form factor.

Technical Specifications

Certifications & Standards

• IEC 61009-1: Residual current operated circuit-breakers with integral overcurrent protection for household and similar use (RCBOs) — Part 1: General rules
• EN 61009-1: European adoption of IEC 61009-1 for RCBO general rules
• IEC 61009-2: RCBOs — Part 2: Specific requirements
• EN 61009-2: European adoption of IEC 61009-2 for RCBO specific requirements
• IEC/EN 60664: Insulation coordination for equipment within low-voltage supply systems
• IEC/EN 61009-1: Combined IEC/EN designation for RCBO general rules
• IEC/EN 61009-2: Combined IEC/EN designation for RCBO specific requirements
• IEC 61009: Residual current operated circuit-breakers with integral overcurrent protection (general series reference)
• IEC 60898: Electrical accessories — Circuit-breakers for overcurrent protection for household and similar installations
• IEC 60068-2: Environmental testing — Part 2: Tests
• EN 45555: General methods for assessing the energy efficiency and other resource aspects of energy-related products
• EN 61009: European designation for residual current operated circuit-breakers with integral overcurrent protection
• EN 60664: European adoption of insulation coordination standard for low-voltage supply systems
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive 2011/65/EU
• REACH: Compliant with EU REACH Regulation (EC) No 1907/2006 on chemical substances
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU
• CCC: China Compulsory Certification for the Chinese market
• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• EAC: Eurasian Conformity mark for the Eurasian Economic Union market
