ABB 2CSM202041R1801 E 91/32 PV1500e 1P 32A 1500V DC Fuse Holder

% $-21.16

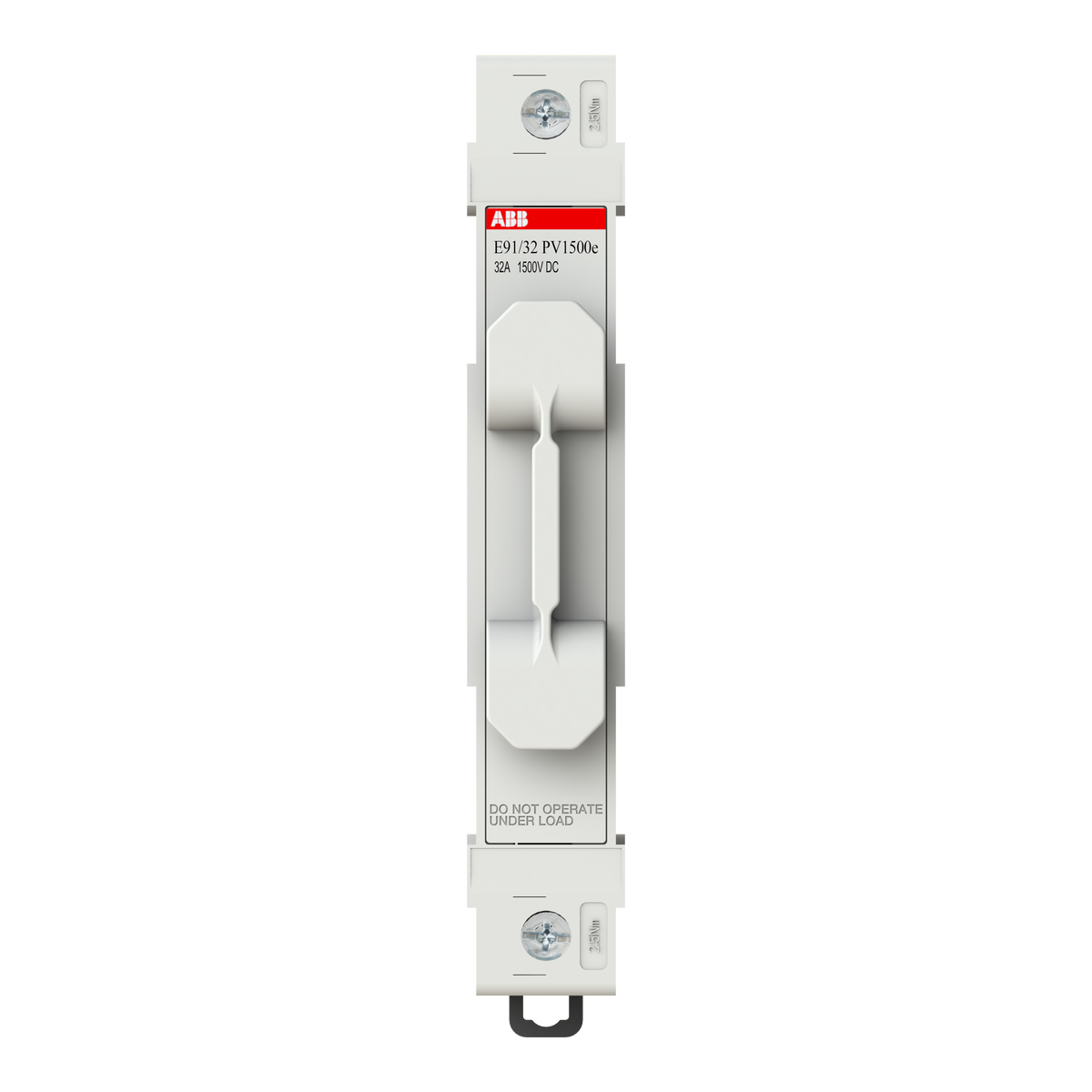

ABB 2CSM202041R1801 E 91/32 PV1500e Fuse Holder - 1P 32A 1500V DC gPV
ABB 2CSM202041R1801 E 91/32 PV1500e Fuse Holder - 1P 32A 1500V DC gPV

ABB 2CSM202041R1801 E 91/32 PV1500e 1P 32A 1500V DC Fuse Holder

Brand: ABB
Reference No: 2CSM202041R1801
Catalog No: E 91/32 PV1500e
Series: Cylindrical Fuse Holders and Fuse Switch Disconnectors
Tariff Code (HS): 853610
Rated Voltage: 1500 V DC
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$21.16

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSM202041R1801 E 91/32 PV1500e is a single-pole DIN-rail fuse holder for 10x85 mm cylindrical gPV fuse links, built for overcurrent and short-circuit protection in photovoltaic strings. It is rated for 32 A at 1500 V DC with a 1 kV insulation voltage, and accepts copper conductors from 0.75 to 25 mm² under screw terminals.

Technical Specifications

Catalog No E 91/32 PV1500e
SKU 2CSM202041R1801
Brand ABB
Series Cylindrical Fuse Holders and Fuse Switch Disconnectors
Rated Voltage (Ur) 1500 V DC
Rated Insulation Voltage (Ui) 1 kV
Rated Current (In) 32 A
Fuse Type gPV
Fuse Size 10 x 85 mm
Number of Poles 1P
Lock Type Non-Padlockable
Material of Conductor Copper
Connecting Capacity Stranded / Rigid 0.75-25 mm²
Power Loss 6 W
Degree of Protection IP20
Ambient Air Temperature (Operation) -5 to 85 °C
Dimensions (W x H x D) 22.5 x 134 x 65 mm
Net Weight 80 g
EAN 8012542020417

Certifications & Standards

  • IEC 60269-1
  • UL 4248-19

Selection Notes

The E 91/32 PV1500e is rated 1500 V DC, matching the open-circuit voltage of long photovoltaic strings rather than the lower 1000 V DC rating common on older PV fuse holders. Its gPV fuse type is dedicated to PV-grade characteristics, so a gG/gPV mismatch should be avoided when replacing fuse links. At 32 A it holds a 10x85 mm fuse link rather than the smaller 8x32 mm holders or larger holders used in higher-current PV combiner boxes.

Technical Details

Short Description
ABB E 91/32 PV1500e - 1P DIN-rail gPV fuse holder, 32 A, 1500 V DC, 10x85 mm.
Rated Voltage (VAC)
1500 V DC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
E 91/32 PV1500e
Number of Poles
1P
Standards
IEC 60269-1, UL 4248-19
Delivery Date (Days)
30 days
Model Number
E 91/32 PV1500e
Tariff Code
853610
