ABB 2CSG202160R1101 R4M-80 Rogowski Coil 80mm Bore 10000A Current Transformer

% $-196.89

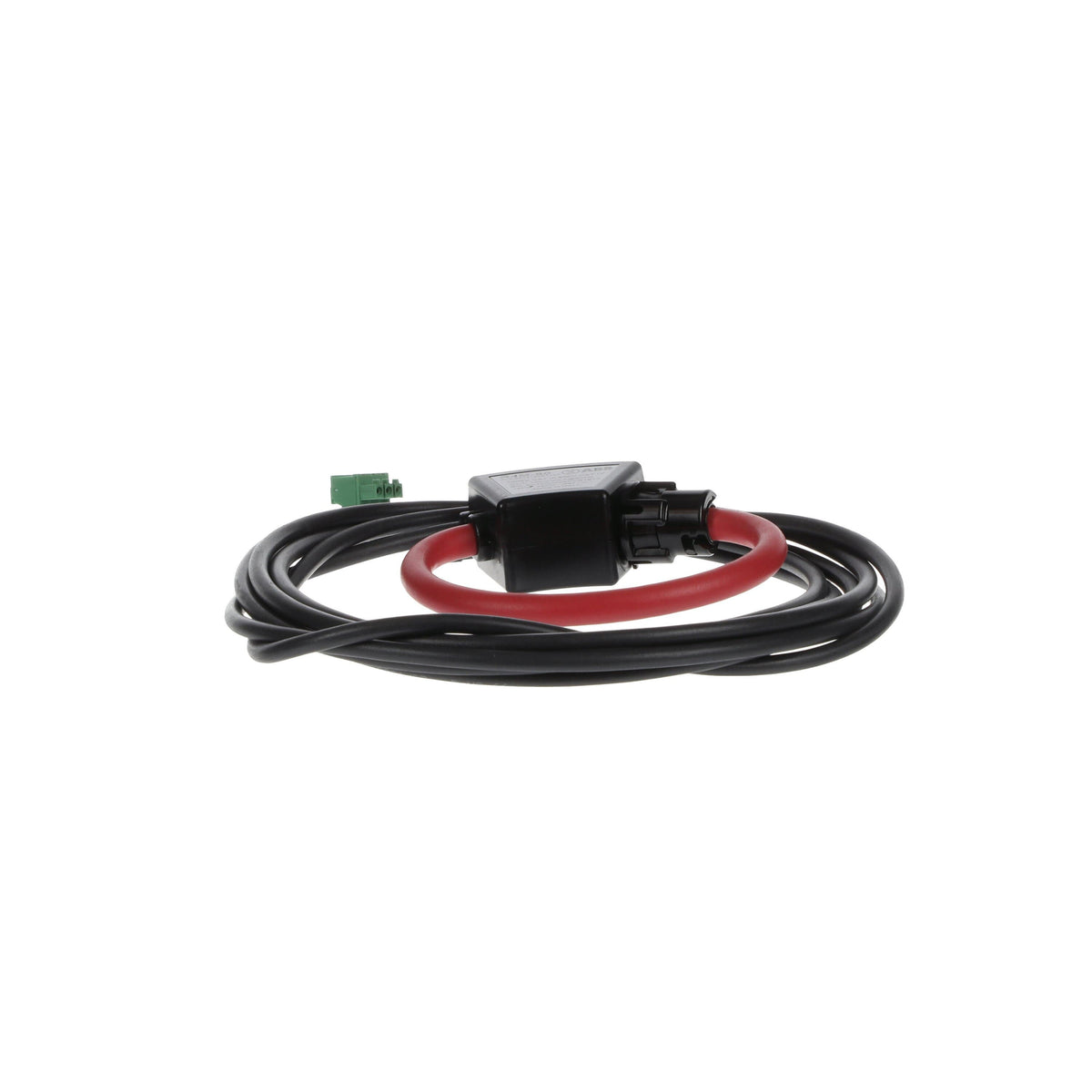

ABB 2CSG202160R1101 R4M-80 Flexible Rogowski Coil Current Transformer – 80mm bore
ABB 2CSG202160R1101 R4M-80 Flexible Rogowski Coil Current Transformer – 80mm bore

ABB 2CSG202160R1101 R4M-80 Rogowski Coil 80mm Bore 10000A Current Transformer

Brand: ABB
Reference No: 2CSG202160R1101
Catalog No: R4M-80
Series: Current Transformers
Tariff Code (HS): 850431
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$196.89

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSG202160R1101 (R4M-80) is a flexible Rogowski-coil current transformer with an 80 mm bore diameter and 3 m lead length, rated for a 10000 A primary current. It ships with pre-wired removable terminals for direct connection to M4M 20 and M4M 30 Rogowski energy meters, suited to smaller busbars and individual cable runs where a bulkier coil will not fit.

Technical Specifications

Catalog Designation R4M-80
SKU 2CSG202160R1101
Brand ABB
Series Current Transformers
EAN 8012542021605
Rated Primary Current (Ipn) 10000 A
Model Single-phase current converter
Number of Primary Inputs 1
Bore Diameter 80 mm
Net Width 30 mm
Net Height 350 mm
Net Depth 220 mm
Net Weight 0.15 kg

Selection Notes

An 80 mm bore targets single cables or small busbar sections, where the 200 mm variant's larger loop would be unnecessarily bulky to route and secure. The same flexible Rogowski construction lets it close around a conductor without opening the circuit, and it shares the same pre-wired removable terminal and M4M meter compatibility as the larger-bore coil. At 0.15 kg it is noticeably lighter than the 200 mm version, easing routing in tight panel space.

Technical Details

Short Description
ABB R4M-80 flexible Rogowski coil current transformer, 80mm bore, 10000A primary current, pre-wired removable terminals.
Catalog No
R4M-80
Delivery Date (Days)
30 days
Model Number
R4M-80
Tariff Code
850431
