ABB 2CSG152436R1202 ELR96PD Type A 110-400V AC Residual Current Monitor Relay Monitoring Relay

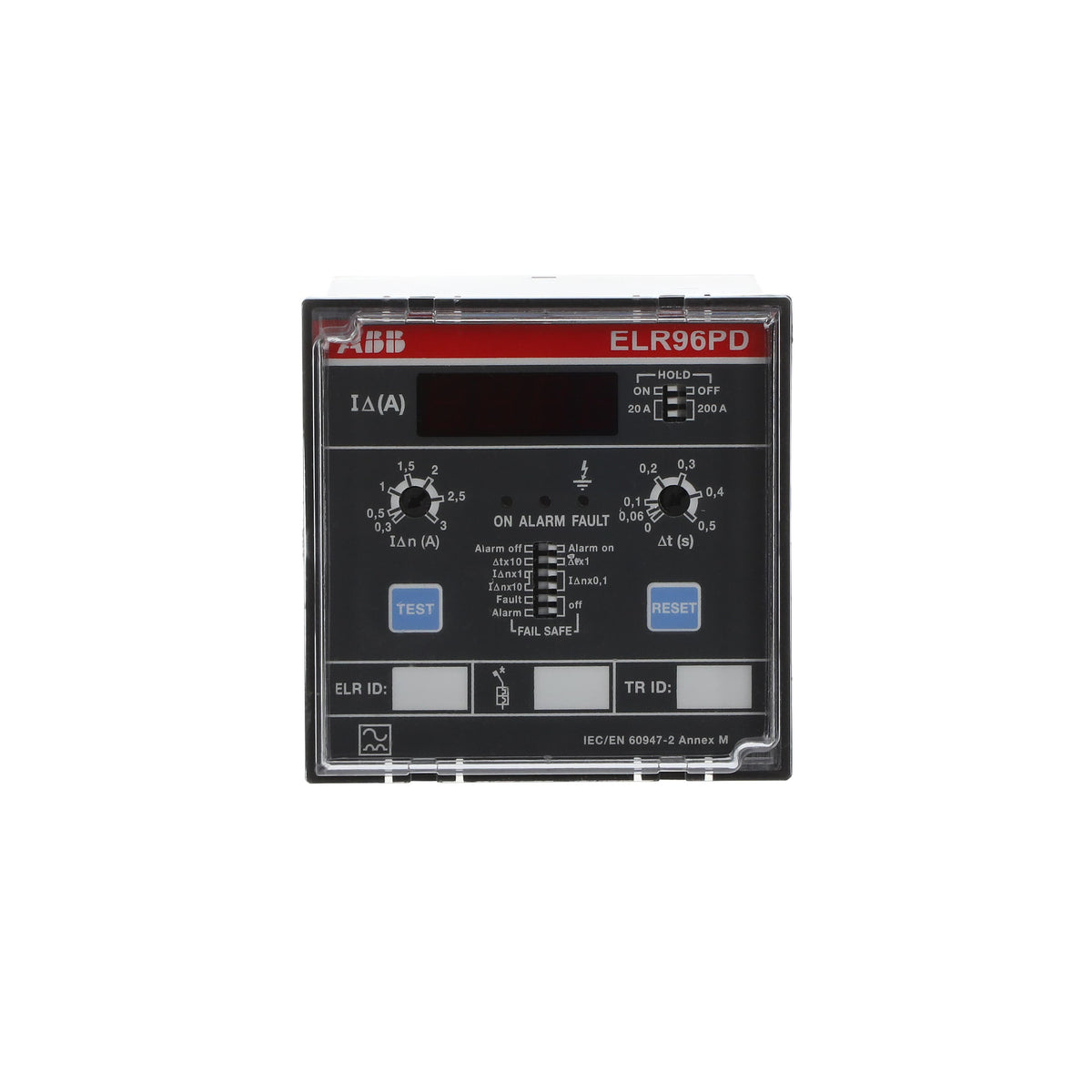

The ABB 2CSG152436R1202 ELR96PD is a panel-mount residual current monitor with two changeover contacts, a built-in frequency filter, and a 60% pre-alarm threshold, detecting earth-fault current from 30 mA to 30 A. Its control supply accepts 110-400 V AC at 50 or 60 Hz or 110-400 V DC, so it fits both AC and DC-fed control cabinets.

Technical Specifications

Certifications & Standards

• IEC/EN 60947-2 Annex M

Selection Notes

The ELR96PD adds a frequency filter and a DC-capable control supply to the two-contact, pre-alarm design shared with its AC-only sibling, making it the choice where the supply or fault signal includes non-50/60 Hz components that would otherwise cause nuisance tripping. Specify it on control cabinets fed from a DC auxiliary supply, since the AC-only pre-alarm variant cannot be wired to 110-400 V DC. The added filtering and DC input circuitry account for its heavier 454 g weight versus the 386 g AC-only version.
