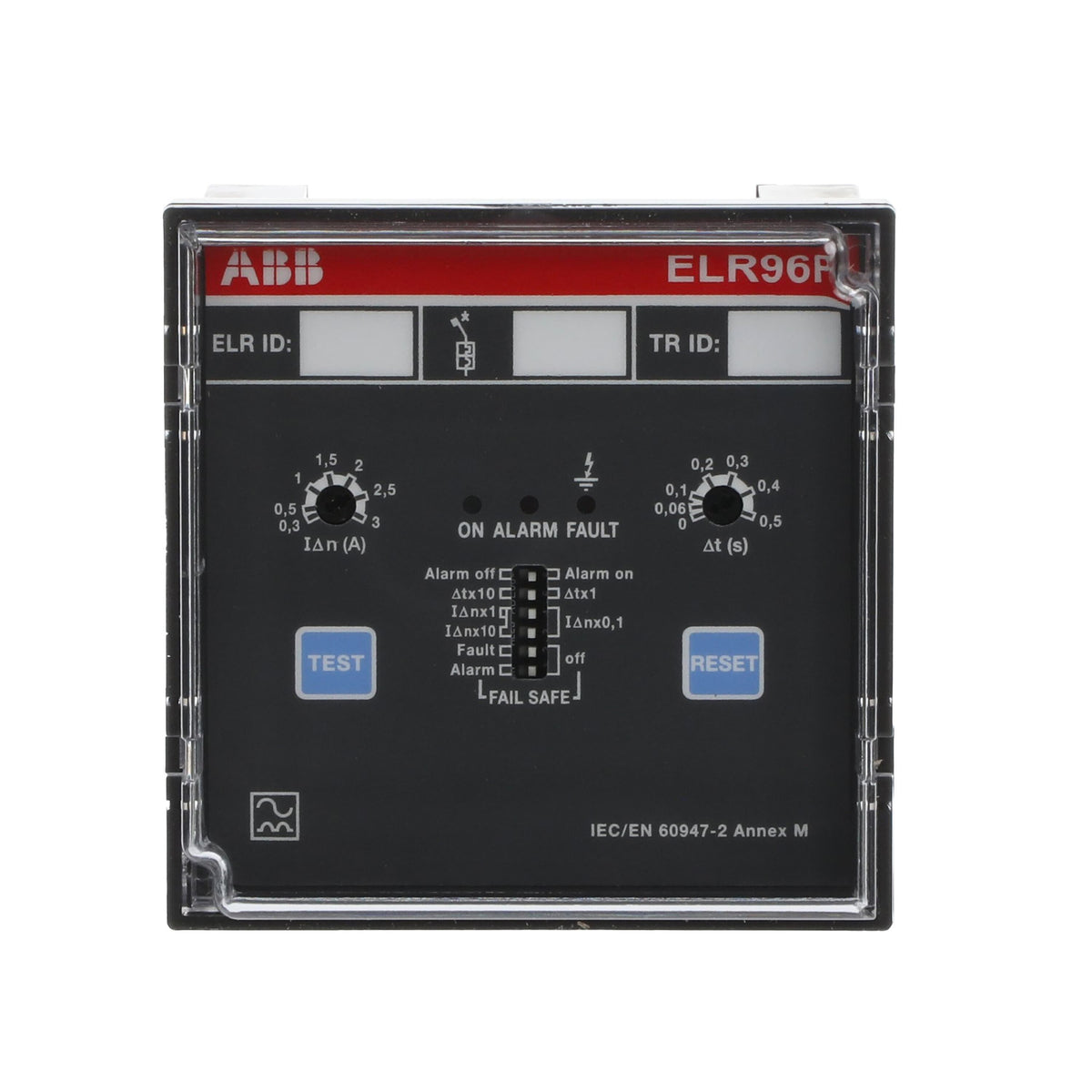

ABB 2CSG152434R1202 ELR96P Type A 110-400V AC Residual Current Monitor Relay Monitoring Relay

% $-425.85
ABB 2CSG152434R1202 ELR96P Residual Current Monitor Relay - Type A 2-Contact Pre-Alarm
ABB 2CSG152434R1202 ELR96P Residual Current Monitor Relay - Type A 2-Contact Pre-Alarm

ABB 2CSG152434R1202 ELR96P Type A 110-400V AC Residual Current Monitor Relay Monitoring Relay

Brand: ABB
Reference No: 2CSG152434R1202
Catalog No: ELR96P
Series: Residual Current Monitors, RCMs
Tariff Code (HS): 853649
Rated Voltage: 110/400 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$425.85

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSG152434R1202 ELR96P is a panel-mount residual current monitor with two changeover contacts, detecting earth-fault current from 30 mA to 30 A on 110-400 V AC circuits. A 60% pre-alarm threshold trips one contact before the main 30 A level trips the second, giving an early warning stage ahead of the final shunt-trip or alarm signal.

Technical Specifications

SKU 2CSG152434R1202
Brand ABB
Series Residual Current Monitors, RCMs
Catalog Designation ELR96P
EAN 8012542734529
Type of Residual Current Type A
Function For AC-current system
Response Thresholds 30 mA | 30 A
Number of Contacts (CO) 2
Delay Time Max 5 s | Min 0 s adjustable
Filter Option No frequency filter
Pre-Alarm Threshold 60%
Rated Voltage (Ur) 110-400 V
Rated Operational Voltage 115-230-400 V AC
Rated Control Supply Voltage (Us) 110-400 V at 50/60 Hz
Rated Frequency 50-60 Hz
Power Loss 4 W total
Mounting Type Front Panel
Net Width 96 mm
Net Height 96 mm
Net Depth 78 mm
Net Weight 386 g

Certifications & Standards

  • IEC/EN 60947-2 Annex M

Selection Notes

The ELR96P's two changeover contacts and 60% pre-alarm threshold let one contact flag an approaching fault while the second still trips the breaker at the full 30 A level, where the single-contact baseline model only trips once. Because it targets AC-current systems rather than the mixed-system baseline, specify it on circuits without significant pulsed DC fault components. Its heavier 386 g build reflects the added second relay stage compared with the single-contact model.

Technical Details

Short Description
ABB ELR96P Type A residual current monitor, 2 contacts, 60% pre-alarm, 30mA/30A thresholds, 110-400V AC.
Rated Voltage (VAC)
110/400 V AC
Mounting Type
Front Panel
Catalog No
ELR96P
Standards
IEC EN 60947-2 Ann M
Delivery Date (Days)
30 days
Model Number
ELR96P
Tariff Code
853649
