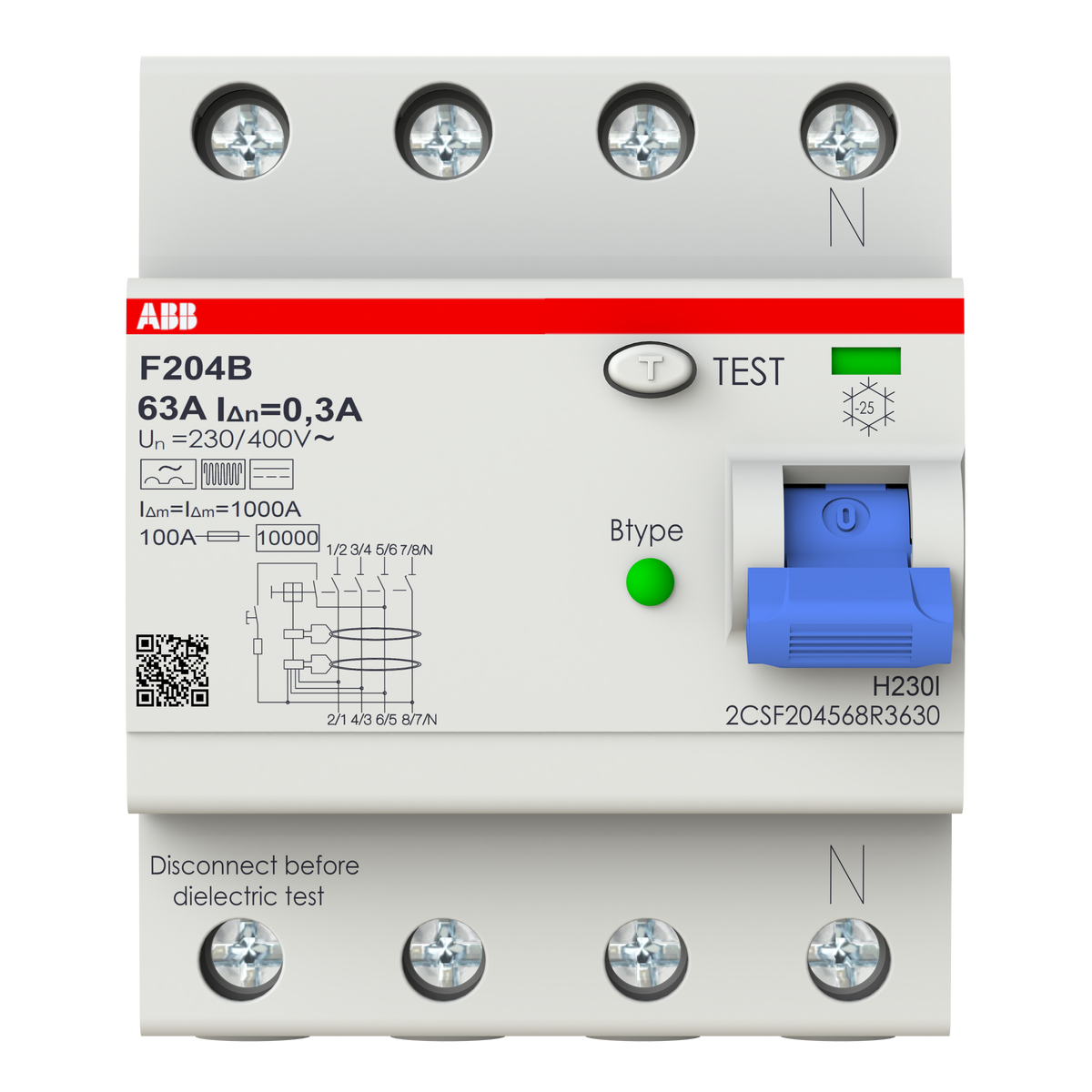

ABB 2CSF204568R3630 F204 B-63/0.3 4P 63A 300mA Type B Residual Current Circuit Breaker (RCCB)

% $-429.23
ABB 2CSF204568R3630 F204 B-63/0.3 RCCB - 4P 63A 300mA Type B
ABB 2CSF204568R3630 F204 B-63/0.3 RCCB - 4P 63A 300mA Type B

ABB 2CSF204568R3630 F204 B-63/0.3 4P 63A 300mA Type B Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF204568R3630
Catalog No: F204 B-63/0.3
Series: F200 B Type
Tariff Code (HS): 853630
Rated Current: 63
Breaking Capacity: IΔn 300 mA, Inc 100 A
Breaking Type: Type B, 10ms Delay (High Immunity)
Rated Voltage: 230/400 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$429.23

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's F204 B-63/0.3 (2CSF204568R3630) is a 4-pole, 63 A Type B residual current circuit breaker with a 300 mA threshold and a 10 ms high-immunity delay against nuisance tripping. Rated 230/400 V, it detects smooth DC earth-fault currents in addition to AC and pulsating DC, making it suitable for three-phase feeders supplying drives or rectifier loads.

Technical Specifications

SKU 2CSF204568R3630
Brand ABB
Series F200 B Type
Catalog Designation F204 B-63/0.3
EAN 8012542342458
Number of Poles 4P
Rated Current (In) 63 A
Rated Residual Current (IΔn) 300 mA
Type of Residual Current Type B
Operating Characteristic 10ms Delay (High Immunity)
Rated Voltage (Ur) 230/400 V
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 100 A (gG/gL fuse, 500 V)
Frequency 50/60 Hz
Power Loss (Total) 15.6 W
Degree of Protection Terminals IP20, Housing IP40
Ambient Air Temperature (Operation) -25...+50 °C
Mounting Type DIN-Rail
Width 70 mm (4 modules)
Height 85 mm
Depth 69 mm
Net Weight 380 g

Certifications & Standards

  • IEC/EN 61008-1
  • IEC/EN 61008-2-1
  • IEC/EN 62423

Selection Notes

At 63 A this is the top-current member of the F204 B-x/0.3 four-pole sub-group, sized for larger three-phase sub-distribution boards. The Type B classification is what separates it from an equivalent Type A or AC device at the same current: specify it where the downstream load, such as a drive or charger, can generate smooth DC earth-fault current that a non-B device would not detect.

Technical Details

Short Description
ABB F204 B-63/0.3, 4P 63A Type B RCCB with 300 mA residual current and 10ms high-immunity delay.
Rated Current (Ampere)
63
Breaking Capacity (kA)
IΔn 300 mA, Inc 100 A
Rated Voltage (VAC)
230/400 V
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F204 B-63/0.3
Number of Poles
4P
Standards
IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62423
Delivery Date (Days)
30 days
Model Number
F204 B-63/0.3
Tariff Code
853630
