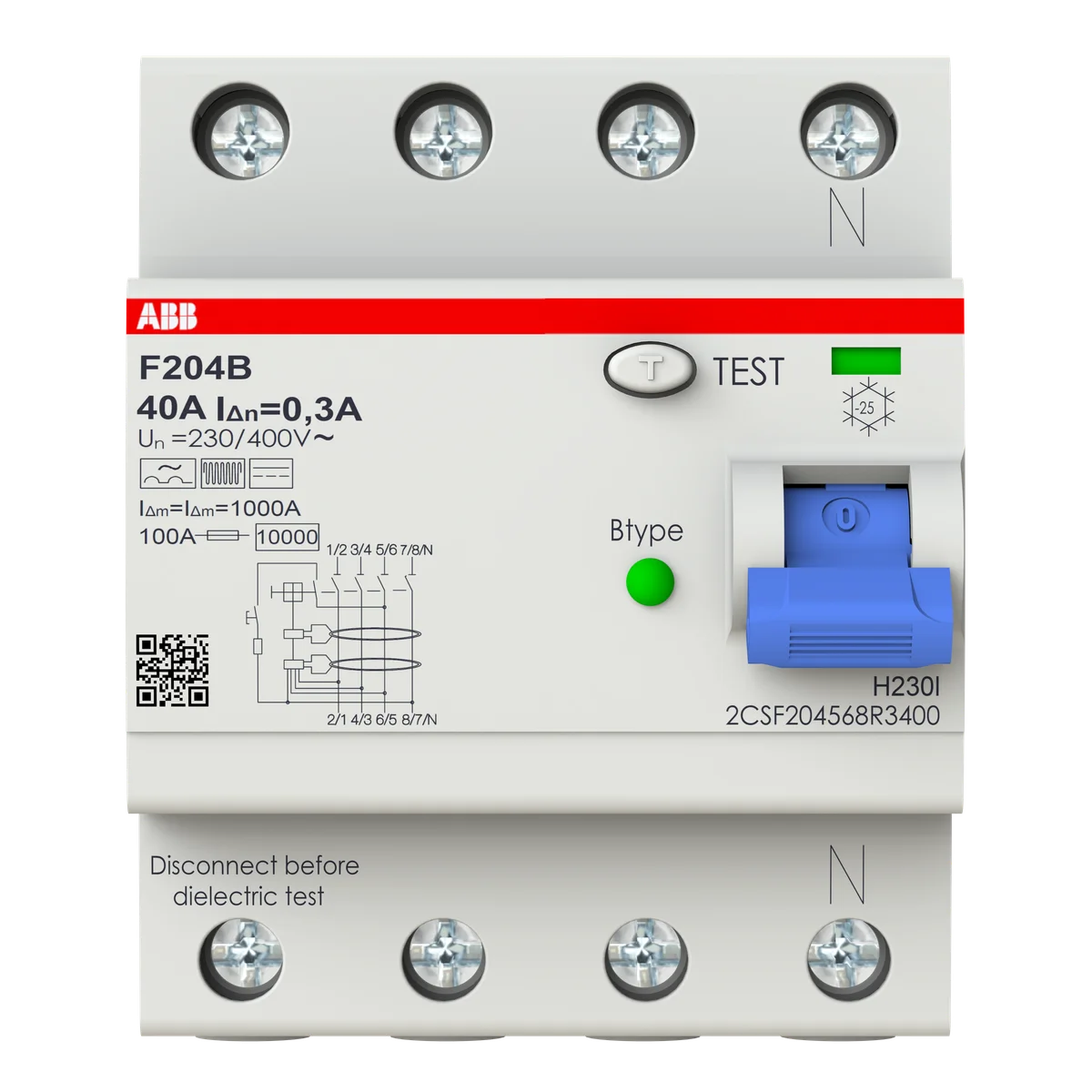

ABB 2CSF204568R3400 F204 B-40/0.3 4P 40A 300mA Type B Residual Current Circuit Breaker

The ABB F204 B-40/0.3 residual current circuit breaker (RCCB), catalog number F204 B-40/0.3 (SKU: 2CSF204568R3400), is a 4-pole, 40A, 300mA Type B device from the ABB F200 series designed to provide personnel and installation protection against earth leakage currents — including pulsating DC and smooth DC fault currents generated by modern frequency converters, EV chargers, and renewable energy systems. Its DIN-rail mount form factor fits standard industrial control panels, and its compact 70 × 85 × 69 mm footprint ensures efficient panel space utilisation.

Technical Specifications

Certifications & Standards

• IEC 61008-1 / EN 61008-1: Residual current operated circuit-breakers without integral overcurrent protection — Part 1: General rules
• IEC 61008-2 / EN 61008-2: Residual current operated circuit-breakers without integral overcurrent protection — Part 2: Particular requirements
• IEC 62423 / EN 62423: Type F and Type B residual current operated circuit-breakers with and without integral overcurrent protection
• IEC 60068-2: Environmental testing for electrical and electronic equipment
• UL 2799: UL standard for electrical systems including battery systems and equipment
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU compliance
• WEEE: Waste Electrical and Electronic Equipment Directive — compliant with EU Directive 2012/19/EU

Applications & Use Cases

• Protection of personnel and equipment in industrial control panels against earth leakage currents
• Electric vehicle (EV) charging stations where Type B RCCB is mandated to detect smooth DC fault currents
• Frequency converter (VFD) output circuits producing pulsating DC residual currents
• Photovoltaic (solar) installations and renewable energy systems
• Commercial and industrial buildings requiring 4-pole earth leakage protection on three-phase distribution boards
• Medical and laboratory equipment installations with stringent leakage current requirements
