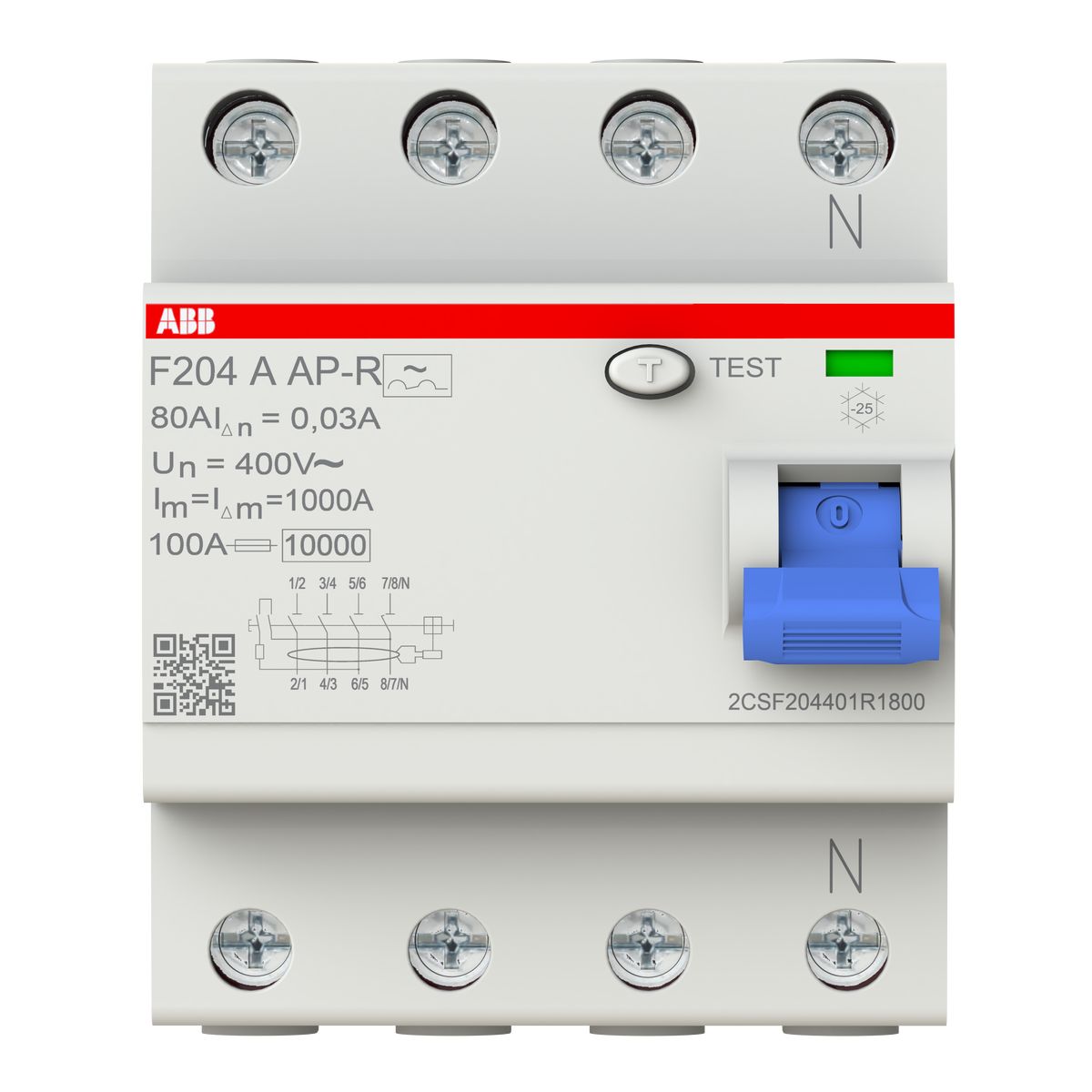

ABB 2CSF204401R1800 F204 A-80/0.03 AP-R 4P 80A 30mA Type A APR Residual Current Circuit Breaker (RCCB)

% $-201.87
ABB 2CSF204401R1800 F204 A-80/0.03 AP-R RCCB - 4P 80A 30mA Type A
ABB 2CSF204401R1800 F204 A-80/0.03 AP-R RCCB - 4P 80A 30mA Type A

ABB 2CSF204401R1800 F204 A-80/0.03 AP-R 4P 80A 30mA Type A APR Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF204401R1800
Catalog No: F204 A-80/0.03 AP-R
Series: F204
Tariff Code (HS): 853630
Rated Current: 80
Breaking Capacity: IΔn 30 mA, Inc 10 kA
Breaking Type: Type A APR, 10ms Delay (High Immunity)
Rated Voltage: 230/400 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$201.87

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB F204 A-80/0.03 AP-R (2CSF204401R1800) is a 4-pole, 80 A Type A residual current circuit breaker with a sensitive 30 mA threshold and a 10 ms high-immunity delay built for resistance to unwanted tripping. It covers sinusoidal AC and pulsating DC residual currents at 230/400 V with a 10 kA conditional short-circuit rating, suiting three-phase circuits where service continuity matters.

Technical Specifications

SKU 2CSF204401R1800
Brand ABB
Series F204
Catalog Designation F204 A-80/0.03 AP-R
EAN 8012542919407
Number of Poles 4P
Rated Current (In) 80 A
Rated Residual Current (IΔn) 30 mA
Type of Residual Current Type A APR
Operating Characteristic 10ms Delay (High Immunity)
Rated Voltage (Ur) 230/400 V
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 10 kA
Frequency 50/60 Hz
Power Loss (Total) 15.9 W
Degree of Protection Terminals IP20, Housing IP40
Ambient Air Temperature (Operation) -25...+55 °C
Mounting Type DIN-Rail
Width 70 mm (4 modules)
Height 85 mm
Depth 69 mm
Net Weight 380 g

Certifications & Standards

  • IEC/EN 61008
  • UL 1053

Selection Notes

The AP-R suffix marks the anti-nuisance-trip variant: the 30 mA threshold still gives personnel-protection sensitivity, but the device resists tripping on transient surges that would open a standard Type A RCCB of the same rating, keeping the circuit in service. At 80 A this is the highest current in the family's current lineup, sized for larger three-phase sub-distribution boards rather than final circuits.

Technical Details

Short Description
ABB F204 A-80/0.03 AP-R, 4P 80A Type A RCCB with 30 mA residual current and 10ms high-immunity delay.
Rated Current (Ampere)
80
Breaking Capacity (kA)
IΔn 30 mA, Inc 10 kA
Rated Voltage (VAC)
230/400 V
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F204 A-80/0.03 AP-R
Number of Poles
4P
Standards
IEC/EN 61008, UL 1053
Delivery Date (Days)
30 days
Model Number
F204 A-80/0.03 AP-R
Tariff Code
853630
