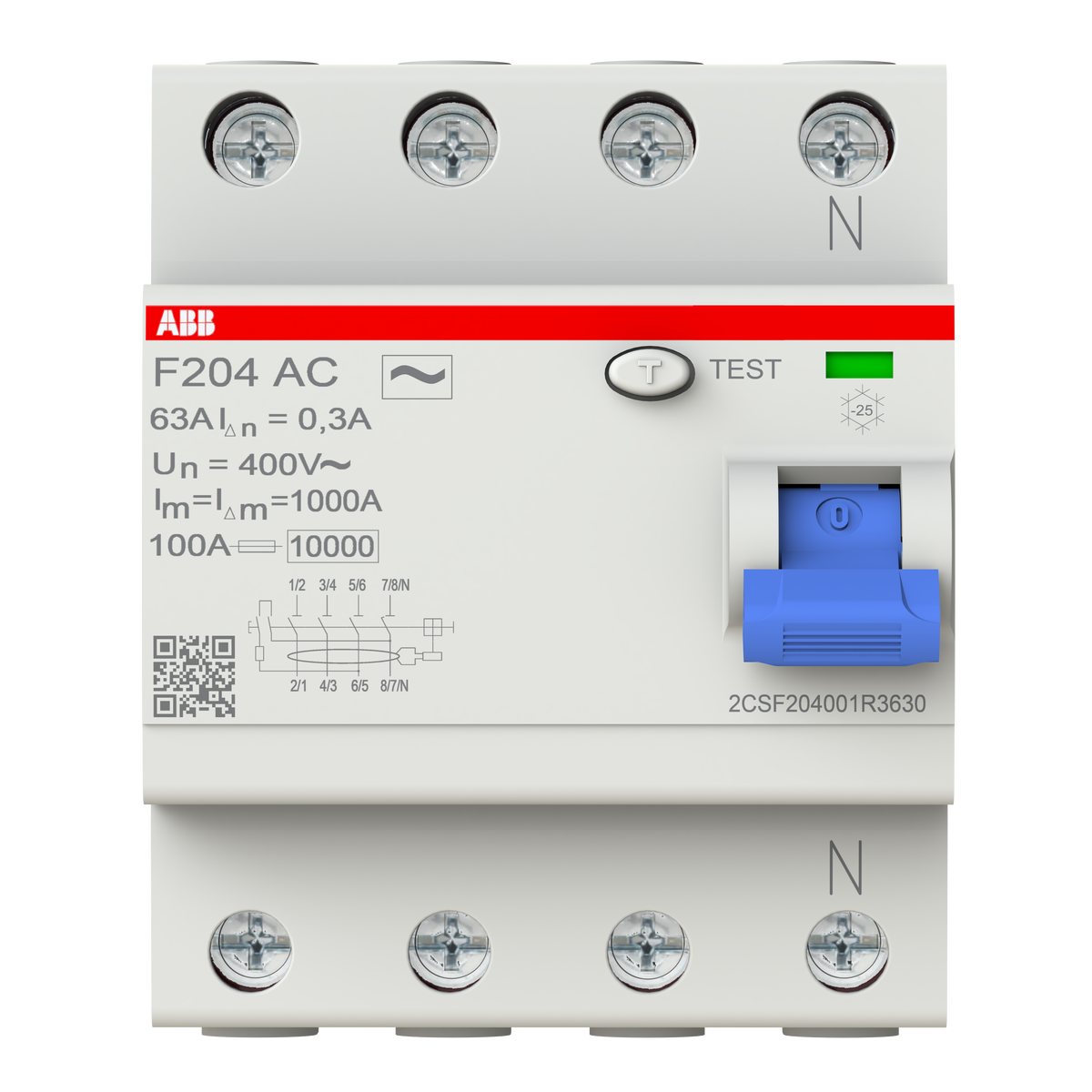

ABB 2CSF204001R3630 F204 AC-63/0.3 4P 63A 300mA Type AC Instantaneous Residual Current Circuit Breaker (RCCB)

% $-95.38
ABB 2CSF204001R3630 F204 AC-63/0.3 RCCB - 4P 63A 300mA Type AC Instant
ABB 2CSF204001R3630 F204 AC-63/0.3 RCCB - 4P 63A 300mA Type AC Instant

ABB 2CSF204001R3630 F204 AC-63/0.3 4P 63A 300mA Type AC Instantaneous Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF204001R3630
Catalog No: F204 AC-63/0.3
Series: F204
Tariff Code (HS): 853630
Rated Current: 63
Breaking Capacity: IΔn 300 mA, Inc 10 kA
Breaking Type: Type AC, Instantaneous
Rated Voltage: 230/400 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$95.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's F204 AC-63/0.3 (2CSF204001R3630) is a 4-pole, 63 A Type AC residual current circuit breaker with a 300 mA threshold and an instantaneous trip for fast clearance of sinusoidal AC earth-fault currents. Rated 230/400 V with a 10 kA conditional short-circuit current, it suits general three-phase distribution boards that do not carry DC or pulsating-DC leakage sources.

Technical Specifications

SKU 2CSF204001R3630
Brand ABB
Series F204
Catalog Designation F204 AC-63/0.3
EAN 8012542782001
Number of Poles 4P
Rated Current (In) 63 A
Rated Residual Current (IΔn) 300 mA
Type of Residual Current Type AC
Operating Characteristic Instantaneous
Rated Voltage (Ur) 230/400 V
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 10 kA
Frequency 50/60 Hz
Power Loss (Total) 13.2 W
Degree of Protection Terminals IP20, Housing IP40
Ambient Air Temperature (Operation) -25...+55 °C
Mounting Type DIN-Rail
Width 70 mm (4 modules)
Height 85 mm
Depth 69 mm
Net Weight 360 g

Certifications & Standards

  • IEC/EN 61008
  • UL 1053

Selection Notes

Type AC is the base sensitivity class, covering only pure sinusoidal AC residual currents, so this unit fits standard resistive and inductive three-phase loads without rectifier or variable-speed-drive content downstream. Where the circuit can generate pulsating or smooth DC leakage, a Type A or Type B variant at the same 63 A, 300 mA rating is the correct choice instead of this instantaneous Type AC device.

Technical Details

Short Description
ABB F204 AC-63/0.3, 4P 63A Type AC RCCB with 300 mA residual current and instantaneous trip, 10 kA Inc.
Rated Current (Ampere)
63
Breaking Capacity (kA)
IΔn 300 mA, Inc 10 kA
Rated Voltage (VAC)
230/400 V
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F204 AC-63/0.3
Number of Poles
4P
Standards
IEC/EN 61008, UL 1053
Delivery Date (Days)
30 days
Model Number
F204 AC-63/0.3
Tariff Code
853630
