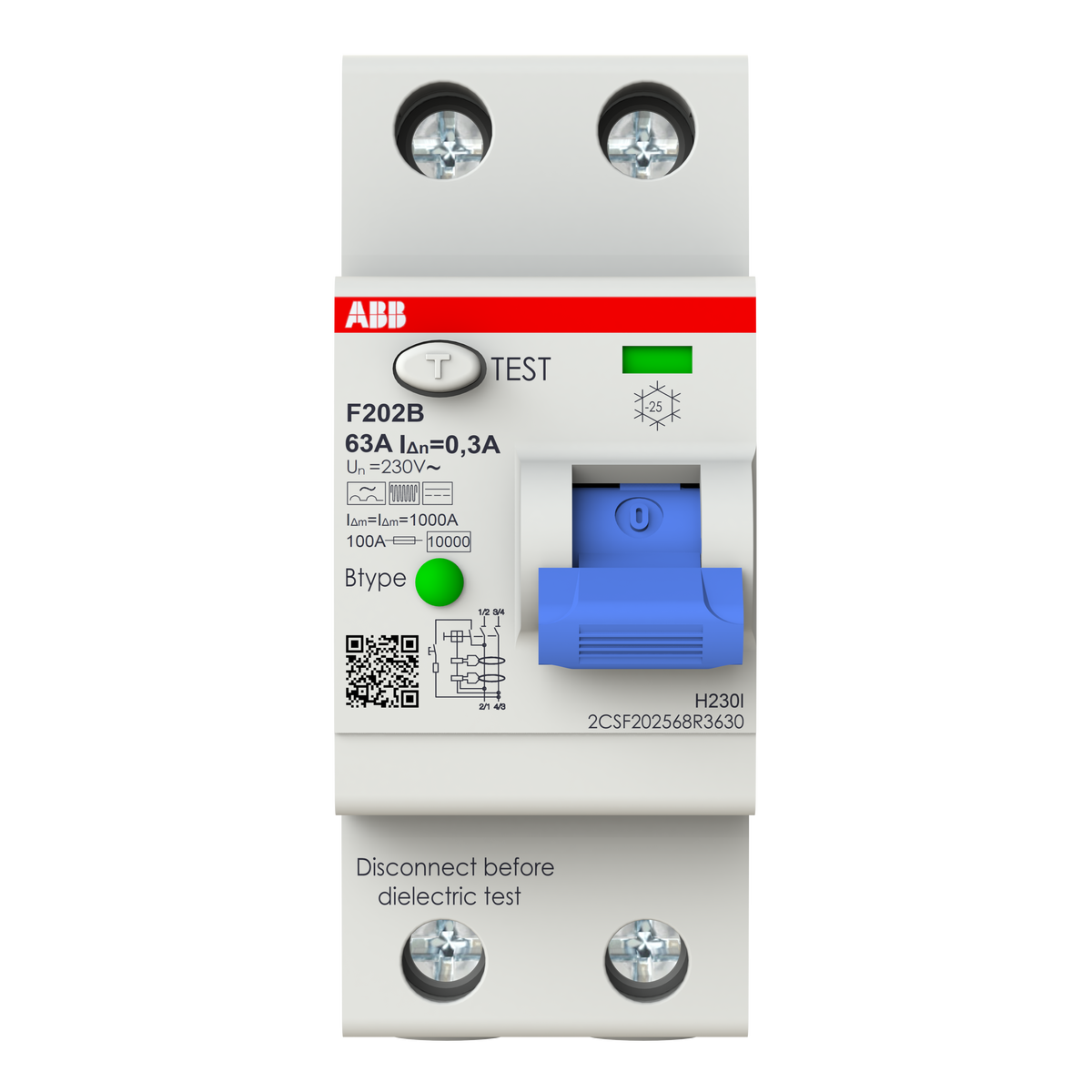

ABB 2CSF202568R3630 F202 B-63/0.3 2P 63A 300mA Type B Residual Current Circuit Breaker (RCCB)

% $-330.26
ABB 2CSF202568R3630 F202 B-63/0.3 RCCB - 2P 63A 300mA Type B
ABB 2CSF202568R3630 F202 B-63/0.3 RCCB - 2P 63A 300mA Type B

ABB 2CSF202568R3630 F202 B-63/0.3 2P 63A 300mA Type B Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF202568R3630
Catalog No: F202 B-63/0.3
Series: F200 B Type
Tariff Code (HS): 853630
Rated Current: 63
Breaking Capacity: IΔn 300 mA, Inc 100 A
Breaking Type: Type B, 10ms Delay (High Immunity)
Rated Voltage: 230 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$330.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's F202 B-63/0.3 (2CSF202568R3630) delivers 2-pole, 63 A Type B residual current protection at a 300 mA threshold with a 10 ms high-immunity delay, the highest-current member of this F200 B sub-group. Type B sensitivity extends coverage to smooth DC earth-fault currents that AC-type devices miss, making it the choice for feeders upstream of drives, inverters or other DC-generating loads.

Technical Specifications

SKU 2CSF202568R3630
Brand ABB
Series F200 B Type
Catalog Designation F202 B-63/0.3
EAN 8012542341857
Number of Poles 2P
Rated Current (In) 63 A
Rated Residual Current (IΔn) 300 mA
Type of Residual Current Type B
Operating Characteristic 10ms Delay (High Immunity)
Rated Voltage (Ur) 230 V
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 100 A (gG/gL fuse, 500 V)
Frequency 50/60 Hz
Power Loss (Total) 8.58 W
Degree of Protection Terminals IP20, Housing IP40
Ambient Air Temperature (Operation) -25...+50 °C
Mounting Type DIN-Rail
Width 35 mm (2 modules)
Height 85 mm
Depth 69 mm
Net Weight 220 g

Certifications & Standards

  • IEC/EN 61008-1
  • IEC/EN 61008-2-1
  • IEC/EN 62423

Selection Notes

This is the highest-current, highest-threshold combination in the F202 B-x/0.3 sub-group: 63 A with a 300 mA trip point for installation protection on circuits too large to run a 30 mA device without risking nuisance trips from cumulative leakage. Step down to the lower-current siblings for smaller final circuits, or to the 30 mA variant at the same current where personnel-protection sensitivity is the governing requirement.

Technical Details

Short Description
ABB F202 B-63/0.3, 2P 63A Type B RCCB with 300 mA residual current and 10ms high-immunity delay for smooth DC earth-fault protection.
Rated Current (Ampere)
63
Breaking Capacity (kA)
IΔn 300 mA, Inc 100 A
Rated Voltage (VAC)
230 V
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F202 B-63/0.3
Number of Poles
2P
Standards
IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62423
Delivery Date (Days)
30 days
Model Number
F202 B-63/0.3
Tariff Code
853630
