ABB 2CSF202568R3400 F202 B-40/0.3 2P 40A 300mA Type B Residual Current Circuit Breaker (RCCB)

% $-286.25

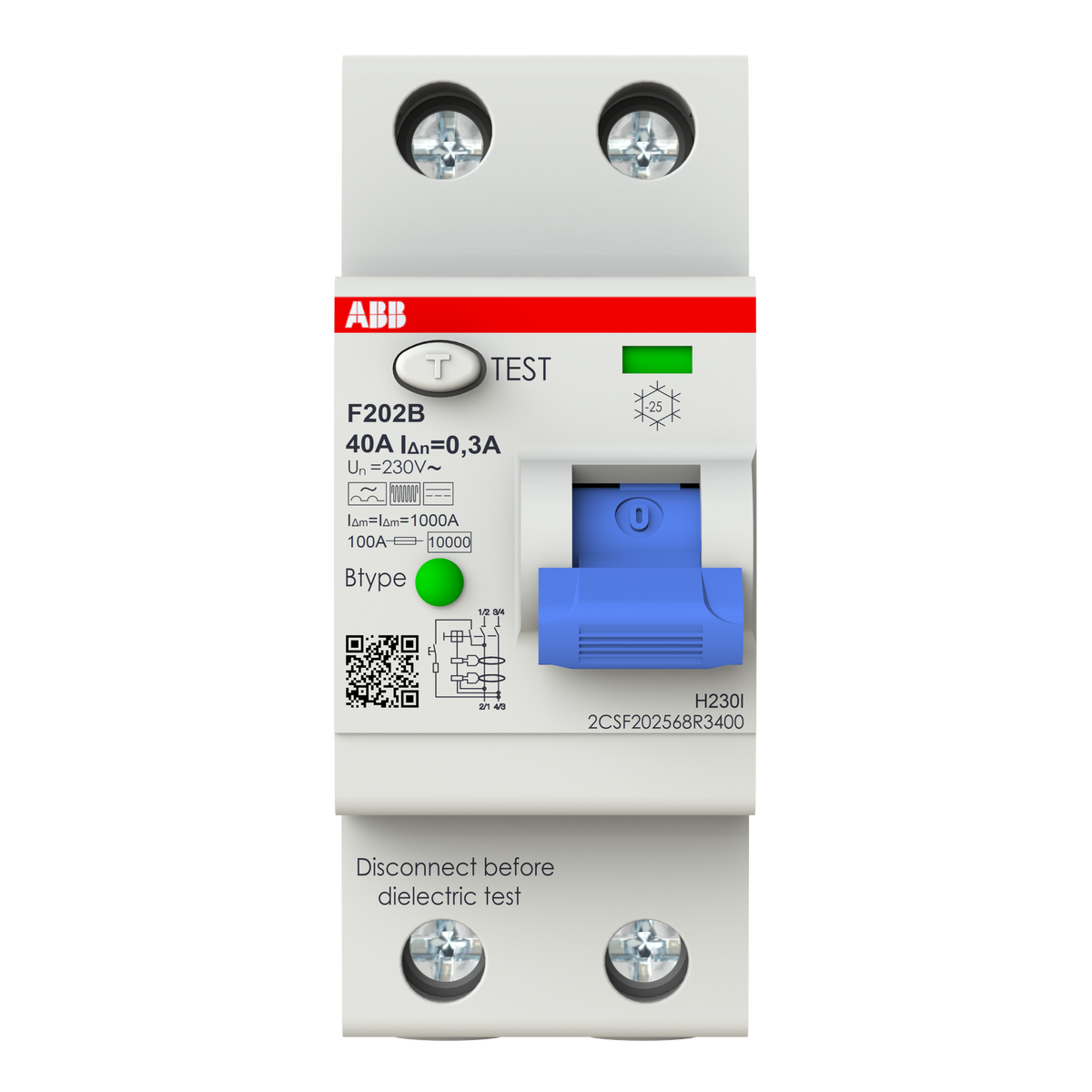

ABB 2CSF202568R3400 F202 B-40/0.3 RCCB - 2P 40A 300mA Type B
ABB 2CSF202568R3400 F202 B-40/0.3 RCCB - 2P 40A 300mA Type B

ABB 2CSF202568R3400 F202 B-40/0.3 2P 40A 300mA Type B Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF202568R3400
Catalog No: F202 B-40/0.3
Series: F200 B Type
Tariff Code (HS): 853630
Rated Current: 40
Breaking Capacity: IΔn 300 mA, Inc 100 A
Breaking Type: Type B, 10ms Delay (High Immunity)
Rated Voltage: 230 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$286.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's F202 B-40/0.3 (2CSF202568R3400) is a 2-pole, 40 A Type B residual current circuit breaker with a 300 mA threshold and a 10 ms high-immunity delay for general installation-protection applications. Unlike AC-type devices, Type B sensitivity also detects smooth DC earth-fault currents, which matters on circuits supplying variable-frequency drives, UPS systems or EV charging equipment.

Technical Specifications

SKU 2CSF202568R3400
Brand ABB
Series F200 B Type
Catalog Designation F202 B-40/0.3
EAN 8012542341758
Number of Poles 2P
Rated Current (In) 40 A
Rated Residual Current (IΔn) 300 mA
Type of Residual Current Type B
Operating Characteristic 10ms Delay (High Immunity)
Rated Voltage (Ur) 230 V
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 100 A (gG/gL fuse, 500 V)
Frequency 50/60 Hz
Power Loss (Total) 3.6 W
Degree of Protection Terminals IP20, Housing IP40
Ambient Air Temperature (Operation) -25...+65 °C
Mounting Type DIN-Rail
Width 35 mm (2 modules)
Height 85 mm
Depth 69 mm
Net Weight 220 g

Certifications & Standards

  • IEC/EN 61008-1
  • IEC/EN 61008-2-1
  • IEC/EN 62423

Selection Notes

This 40 A, 300 mA variant trades personnel-protection sensitivity for resistance to nuisance tripping on circuits with inherent leakage, such as long cable runs or multiple SMPS loads. Pick the 30 mA version at the same current instead where the installation requires additional protection against electric shock; both share the same 2P frame and 10 ms high-immunity delay, differing only in trip threshold.

Technical Details

Short Description
ABB F202 B-40/0.3, 2P 40A Type B RCCB with 300 mA residual current and 10ms high-immunity delay for smooth DC earth-fault protection.
Rated Current (Ampere)
40
Breaking Capacity (kA)
IΔn 300 mA, Inc 100 A
Rated Voltage (VAC)
230 V
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F202 B-40/0.3
Number of Poles
2P
Standards
IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62423
Delivery Date (Days)
30 days
Model Number
F202 B-40/0.3
Tariff Code
853630
