ABB 2CSF202568R3250 F202 B-25/0.3 2P 25A 300mA Type B Residual Current Circuit Breaker (RCCB)

% $-220.12

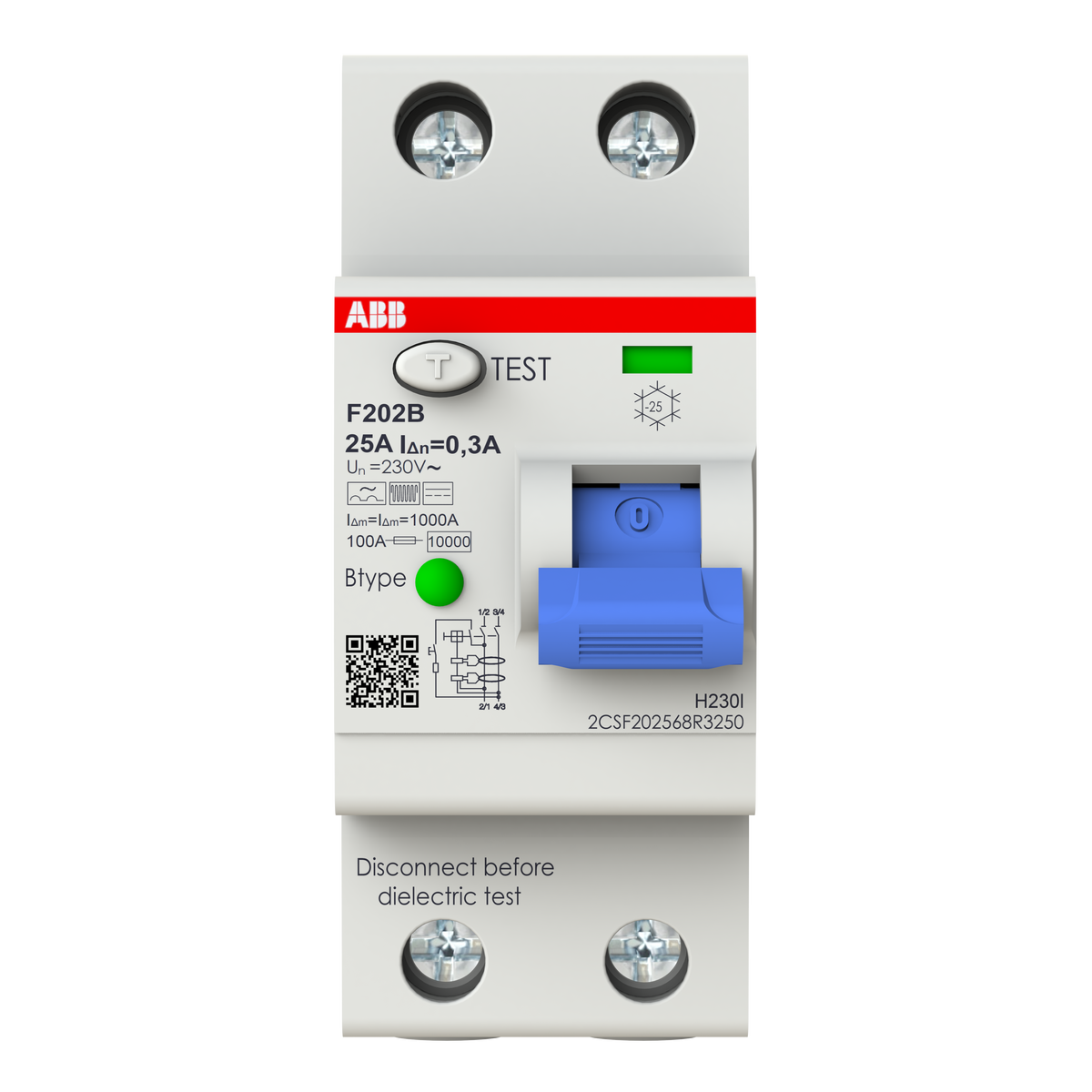

ABB 2CSF202568R3250 F202 B-25/0.3 RCCB - 2P 25A 300mA Type B
ABB 2CSF202568R3250 F202 B-25/0.3 RCCB - 2P 25A 300mA Type B

ABB 2CSF202568R3250 F202 B-25/0.3 2P 25A 300mA Type B Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF202568R3250
Catalog No: F202 B-25/0.3
Series: F200 B Type
Tariff Code (HS): 853630
Rated Current: 25
Breaking Capacity: IΔn 300 mA, Inc 100 A
Breaking Type: Type B, 10ms Delay (High Immunity)
Rated Voltage: 230 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$220.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB F202 B-25/0.3 (2CSF202568R3250) is a 2-pole Type B residual current circuit breaker rated 25 A at 230 V, with a 300 mA trip threshold and a 10 ms high-immunity delay that filters out transient nuisance trips. Type B sensitivity covers smooth DC fault currents in addition to AC and pulsating DC, so it protects circuits with frequency converters or DC loads downstream.

Technical Specifications

SKU 2CSF202568R3250
Brand ABB
Series F200 B Type
Catalog Designation F202 B-25/0.3
EAN 8012542341659
Number of Poles 2P
Rated Current (In) 25 A
Rated Residual Current (IΔn) 300 mA
Type of Residual Current Type B
Operating Characteristic 10ms Delay (High Immunity)
Rated Voltage (Ur) 230 V
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 100 A (gG/gL fuse, 500 V)
Frequency 50/60 Hz
Power Loss (Total) 1.6 W
Degree of Protection Terminals IP20, Housing IP40
Ambient Air Temperature (Operation) -25...+70 °C
Mounting Type DIN-Rail
Width 35 mm (2 modules)
Height 85 mm
Depth 69 mm
Net Weight 220 g

Certifications & Standards

  • IEC/EN 61008-1
  • IEC/EN 61008-2-1
  • IEC/EN 62423

Selection Notes

At 25 A this unit sits between the 16 A and 40 A members of the F202 B-x/0.3 group, fitting circuits sized just above a 16 A final sub-circuit. The 300 mA threshold targets installation and fire protection rather than direct personnel contact; where IEC 60364 requires 30 mA sensitivity at this current rating, the matching 30 mA variant applies instead.

Technical Details

Short Description
ABB F202 B-25/0.3, 2P 25A Type B RCCB with 300 mA residual current and 10ms high-immunity delay for smooth DC earth-fault protection.
Rated Current (Ampere)
25
Breaking Capacity (kA)
IΔn 300 mA, Inc 100 A
Rated Voltage (VAC)
230 V
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F202 B-25/0.3
Number of Poles
2P
Standards
IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62423
Delivery Date (Days)
30 days
Model Number
F202 B-25/0.3
Tariff Code
853630
