ABB 2CSF202401R1800 F202 A-80/0.03 AP-R 2P 80A 30mA Type A High Residual Current Circuit Breaker (RCCB)

% $-155.26

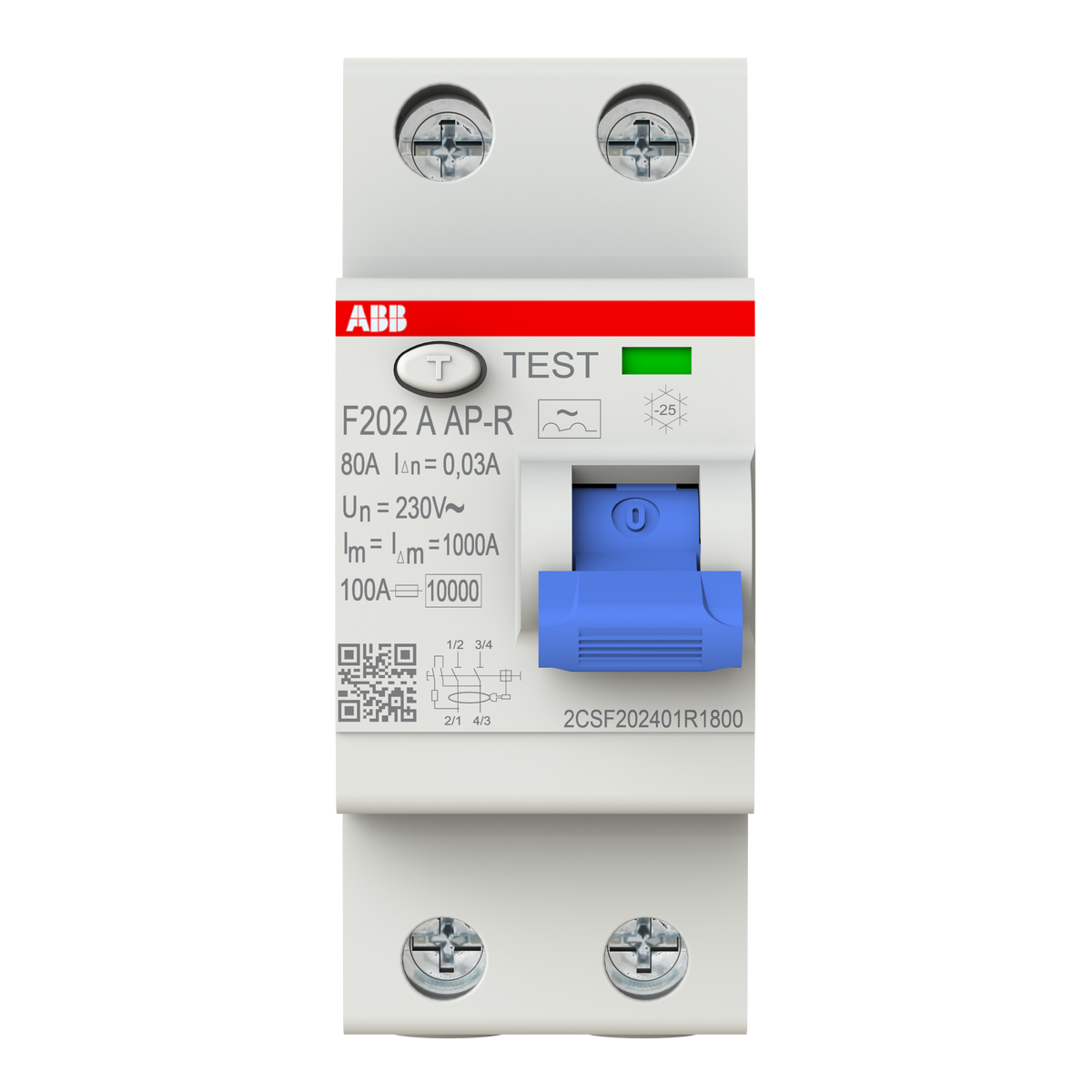

ABB 2CSF202401R1800 F202 A-80/0.03 AP-R RCCB - 2P 80A 30mA High Immunity
ABB 2CSF202401R1800 F202 A-80/0.03 AP-R RCCB - 2P 80A 30mA High Immunity

ABB 2CSF202401R1800 F202 A-80/0.03 AP-R 2P 80A 30mA Type A High Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF202401R1800
Catalog No: F202 A-80/0.03 AP-R
Series: F202
Tariff Code (HS): 853630
Rated Current: 80
Breaking Capacity: 10 kA
Breaking Type: Type A APR, 10ms Delay (High Immunity)
Rated Voltage: 230 V AC
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$155.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSF202401R1800 F202 A-80/0.03 AP-R is a 2-pole residual current circuit breaker rated 80 A with a 30 mA Type A APR trip and a 10 ms delay. That short delay filters out transient leakage spikes from switch-mode loads, reducing nuisance tripping while still meeting the 30 mA personal-protection threshold.

Technical Specifications

SKU 2CSF202401R1800
Brand ABB
Series F202
Catalog Designation F202 A-80/0.03 AP-R
EAN 8012542916406
Type of Residual Current Type A APR
Operating Characteristic 10 ms Delay (High Immunity)
Number of Poles 2P
Rated Current (In) 80 A
Rated Residual Current 30 mA
Rated Voltage (Ur) 230 V
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 10 kA
Test Voltage (Ut) 170-254 V
Maximum Surge Current 3 kA
Rated Frequency 50/60 Hz
Power Loss at Rated Operating Conditions per Pole 4.5 W | Total 9 W
Degree of Protection Terminals IP20 | Housing IP40
Net Width 35 mm
Net Height 85 mm
Net Depth 69 mm
Net Weight 200 g

Certifications & Standards

  • IEC/EN 61008
  • UL 1053

Selection Notes

The A-80/0.03 AP-R shares the 10 ms delay and 3 kA surge-withstand rating of the 100 A AP-R variant in the same range, filtering out transient leakage from VFDs and switch-mode loads without tripping. Its 80 A terminal rating suits a somewhat lighter sub-distribution circuit than the 100 A version, while keeping the same 30 mA personal-protection sensitivity. Choose it over the instantaneous F202 AC models when nuisance tripping from electronic loads is the specific problem being solved.

Technical Details

Short Description
ABB F202 A-80/0.03 AP-R RCCB, 2P, 80A, 30mA Type A, 10ms high-immunity delay, DIN-rail mount.
Rated Current (Ampere)
80
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
230 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F202 A-80/0.03 AP-R
Number of Poles
2P
Standards
IEC/EN 61008, UL 1053
Delivery Date (Days)
30 days
Model Number
F202 A-80/0.03 AP-R
Tariff Code
853630
