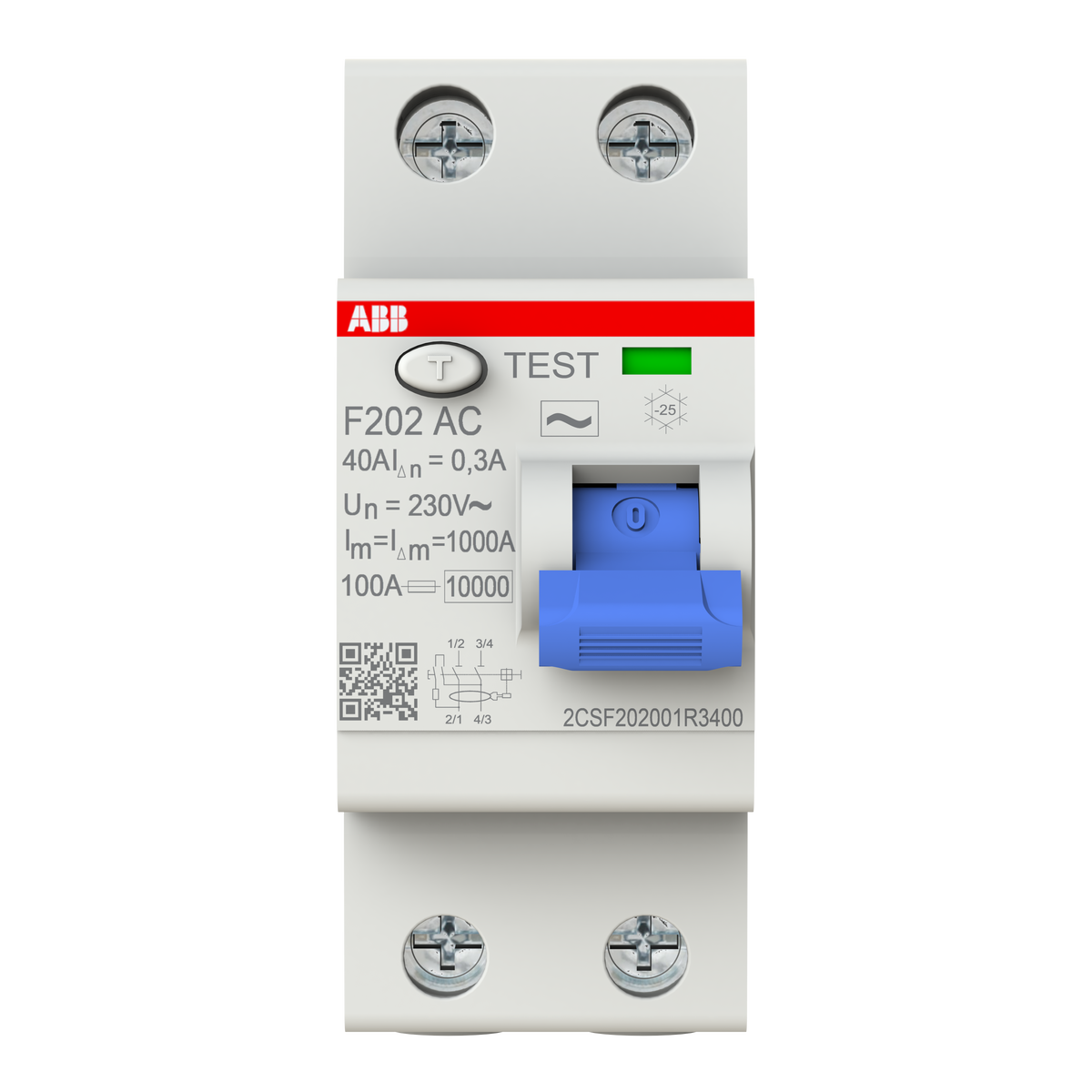

ABB 2CSF202001R3400 F202 AC-40/0.3 2P 40A 300mA Type AC Instantaneous Residual Current Circuit Breaker (RCCB)

% $-63.58
ABB 2CSF202001R3400 F202 AC-40/0.3 RCCB - 2P 40A 300mA Type AC Instantaneous
ABB 2CSF202001R3400 F202 AC-40/0.3 RCCB - 2P 40A 300mA Type AC Instantaneous

ABB 2CSF202001R3400 F202 AC-40/0.3 2P 40A 300mA Type AC Instantaneous Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF202001R3400
Catalog No: F202 AC-40/0.3
Series: F202
Tariff Code (HS): 853630
Rated Current: 40
Breaking Capacity: 10 kA
Breaking Type: Instantaneous (Type AC)
Rated Voltage: 230 V AC
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$63.58

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSF202001R3400 F202 AC-40/0.3 is a 2-pole instantaneous residual current circuit breaker rated 40 A with a 300 mA Type AC trip, rated for 10 kA conditional short-circuit current at 230 V AC. It detects sinusoidal AC earth-fault current without a time delay, suited to small lighting or socket sub-circuits on a DIN rail.

Technical Specifications

SKU 2CSF202001R3400
Brand ABB
Series F202
Catalog Designation F202 AC-40/0.3
EAN 8012542780700
Type of Residual Current Type AC
Operating Characteristic Instantaneous
Number of Poles 2P
Rated Current (In) 40 A
Rated Residual Current 300 mA
Rated Voltage (Ur) 230 V
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 10 kA
Test Voltage (Ut) 110-254 V
Maximum Surge Current 0.25 kA
Rated Frequency 50/60 Hz
Power Loss Total 4.8 W
Degree of Protection Terminals IP20 | Housing IP40
Terminal Type Screw Terminals, Failsafe Bi-directional Cylinder-lift
Net Width 35 mm
Net Height 85 mm
Net Depth 69 mm
Net Weight 200 g

Certifications & Standards

  • IEC/EN 61008
  • UL 1053

Selection Notes

The AC-40/0.3 sits in the middle of this instantaneous F202 AC group, between the 25 A and 63 A versions at the same 300 mA setting, sized for a sub-distribution circuit heavier than a single lighting branch. Its Type AC sensing covers sinusoidal residual current only, so a Type A device is still required wherever pulsed DC fault currents can occur, such as circuits feeding variable-speed drives. The instantaneous trip opens immediately on a fault rather than riding through a brief downstream nuisance trip the way the selective S-series does.

Technical Details

Short Description
ABB F202 AC-40/0.3 instantaneous RCCB, 2P, 40A, 300mA Type AC, 10kA, DIN-rail mount.
Rated Current (Ampere)
40
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
230 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F202 AC-40/0.3
Number of Poles
2P
Standards
IEC/EN 61008, UL 1053
Delivery Date (Days)
30 days
Model Number
F202 AC-40/0.3
Tariff Code
853630
