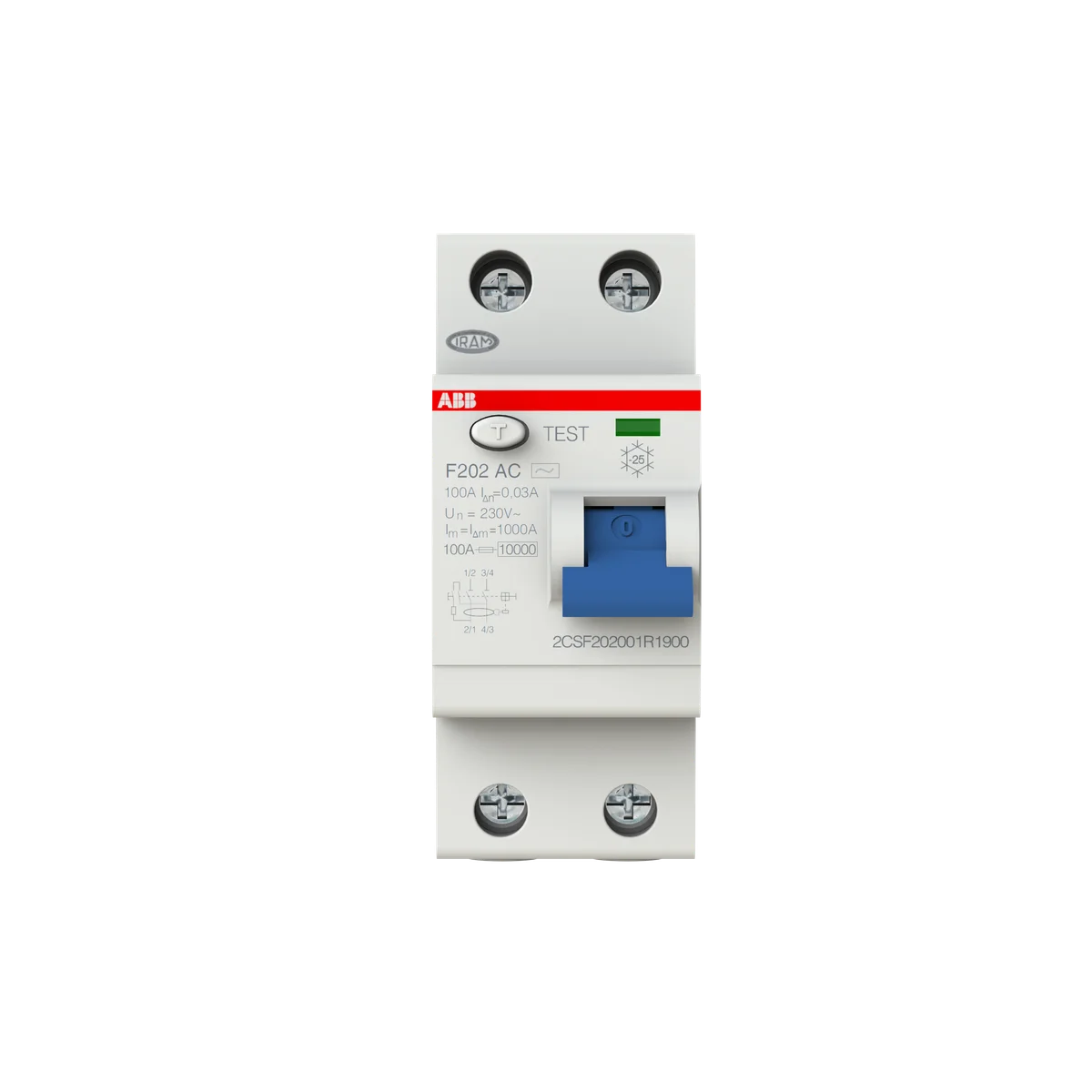

ABB 2CSF202001R1900 F202 AC-100/0.03 2P 100A 30mA Type AC Residual Current Circuit Breaker

The ABB F202 AC-100/0.03 (SKU: 2CSF202001R1900) is a 2-pole, 100 A residual current circuit breaker (RCCB) from the ABB F200 series, designed to provide reliable earth-leakage protection with a 30 mA tripping sensitivity for Type AC sinusoidal fault currents. Engineered for DIN-rail installation in industrial control panels and distribution boards, this RCCB safeguards personnel and equipment against indirect contact and residual current faults in demanding electrical environments.

Technical Specifications

Certifications & Standards

• IEC 61008: International standard for residual current operated circuit-breakers without integral overcurrent protection for household and similar uses
• EN 61008: European harmonised standard equivalent to IEC 61008, confirming EU market compliance
• IEC 60068-2: Environmental testing standard covering robustness under temperature, humidity, and mechanical stress conditions
• EN 45555-82: European standard addressing end-of-life and sustainability requirements for electrical and electronic equipment
• UL 2799: UL certification for electrical energy storage systems, confirming safety for North American markets
• CSA: Canadian Standards Association approval for use in Canadian electrical installations
• RoHS: Restriction of Hazardous Substances — confirms the product is free from restricted toxic materials
• REACH: European chemical safety regulation compliance — no substances of very high concern above threshold limits
• WEEE: Waste Electrical and Electronic Equipment directive compliance — product registered for proper end-of-life recycling

Applications & Use Cases

• Personnel protection against indirect contact in residential, commercial, and industrial distribution boards
• Earth-leakage protection for circuits feeding socket outlets, lighting, and HVAC equipment
• Integration into DIN-rail-mounted control panels alongside MCBs and contactors
• Protection of circuits where Type AC (sinusoidal) residual currents are the primary fault characteristic
• Industrial automation panels requiring reliable 30 mA sensitivity earth-fault protection at 100 A load rating
