ABB 2CSF202001R1630 F202 AC-63/0.03 2P 63A 30mA Type AC Instantaneous Residual Current Circuit Breaker (RCCB)

% $-81.52

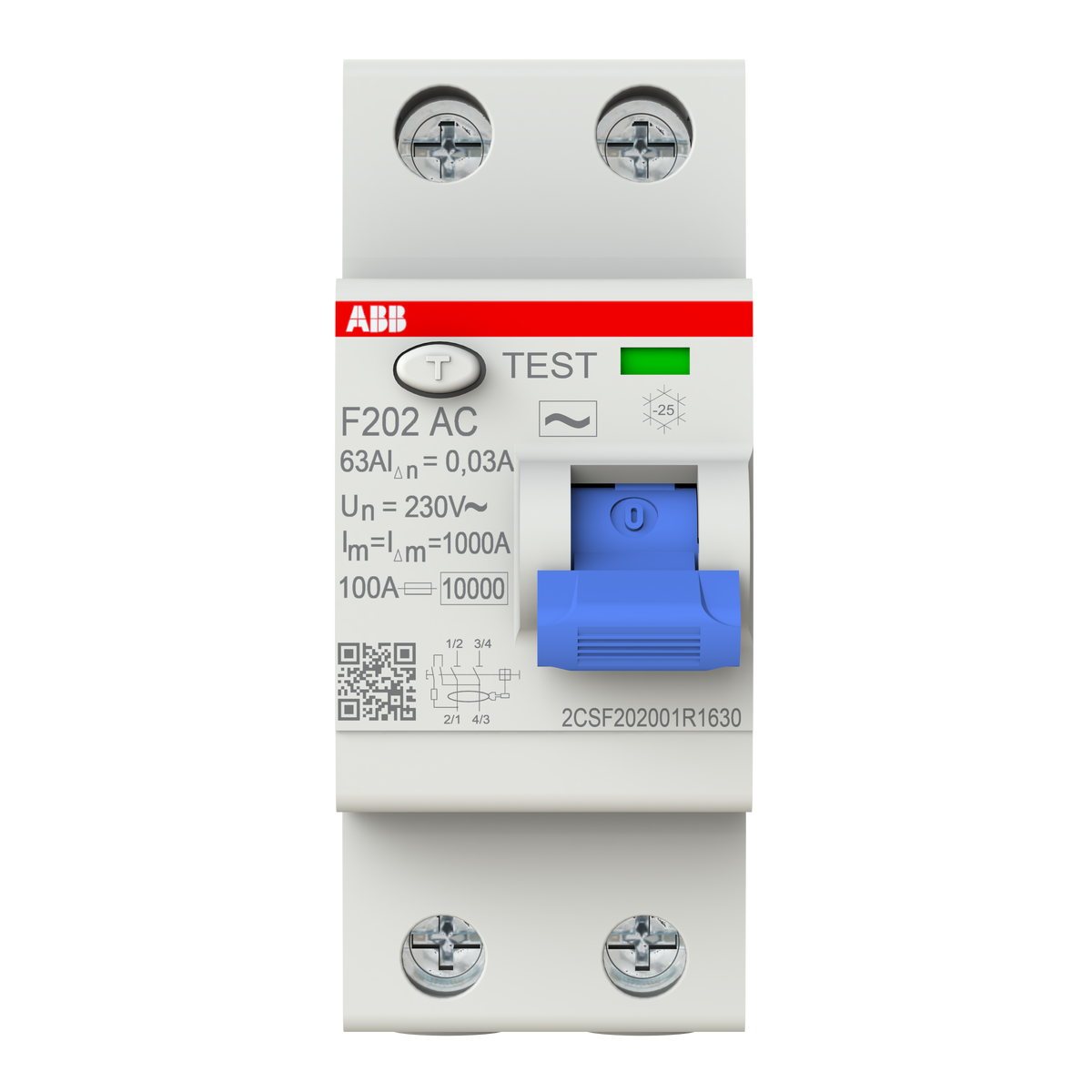

ABB 2CSF202001R1630 F202 AC-63/0.03 RCCB - 2P 63A 30mA Type AC Instantaneous
ABB 2CSF202001R1630 F202 AC-63/0.03 RCCB - 2P 63A 30mA Type AC Instantaneous

ABB 2CSF202001R1630 F202 AC-63/0.03 2P 63A 30mA Type AC Instantaneous Residual Current Circuit Breaker (RCCB)

Brand: ABB
Reference No: 2CSF202001R1630
Catalog No: F202 AC-63/0.03
Series: F202
Tariff Code (HS): 853630
Rated Current: 63
Breaking Capacity: 10 kA
Breaking Type: Instantaneous (Type AC)
Rated Voltage: 230 V AC
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$81.52

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSF202001R1630 F202 AC-63/0.03 is a 2-pole instantaneous residual current circuit breaker rated 63 A with a 30 mA Type AC trip, rated for 10 kA conditional short-circuit current at 230 V AC. Its sensitive 30 mA threshold suits personal protection on a final circuit, and the instantaneous characteristic opens as soon as the fault is detected.

Technical Specifications

SKU 2CSF202001R1630
Brand ABB
Series F202
Catalog Designation F202 AC-63/0.03
EAN 8012542780205
Type of Residual Current Type AC
Operating Characteristic Instantaneous
Number of Poles 2P
Rated Current (In) 63 A
Rated Residual Current 30 mA
Rated Voltage (Ur) 230 V
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Conditional Short-Circuit Current (Inc) 10 kA
Test Voltage (Ut) 170-254 V
Maximum Surge Current 0.25 kA
Rated Frequency 50/60 Hz
Power Loss at Rated Operating Conditions per Pole 3.2 W | Total 6.4 W
Degree of Protection Terminals IP20 | Housing IP40
Accessory Type Auxiliary contact, Shunt trip, Undervoltage release, Overvoltage release, Motor Operating Device, Autoreclosing Unit, Home automatic resetting unit
Terminal Type Screw Terminals, Failsafe Bi-directional Cylinder-lift
Net Width 35 mm
Net Height 85 mm
Net Depth 69 mm
Net Weight 200 g

Certifications & Standards

  • IEC/EN 61008
  • UL 1053

Selection Notes

The AC-63/0.03's 63 A rating matches the top of this instantaneous F202 AC group, while its 30 mA threshold is more sensitive than the 300 mA version at the same 63 A rating, which is sized for broader circuit protection rather than personal safety on a final circuit. Its accessory list additionally includes a home automatic resetting unit, not offered on the other Type AC variants in this batch, for installations that need the breaker to re-close automatically after a transient trip. Pick the 30 mA setting specifically where local wiring rules require that sensitivity on socket-outlet circuits.

Technical Details

Short Description
ABB F202 AC-63/0.03 instantaneous RCCB, 2P, 63A, 30mA Type AC, 10kA, DIN-rail mount.
Rated Current (Ampere)
63
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
230 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
F202 AC-63/0.03
Number of Poles
2P
Standards
IEC/EN 61008, UL 1053
Delivery Date (Days)
30 days
Model Number
F202 AC-63/0.03
Tariff Code
853630
