ABB 2CSB204001R3250 DDA204 AC-25/0.3 4P 25A 300mA Type AC RCD Block Residual Current Device Module

% $-89.99

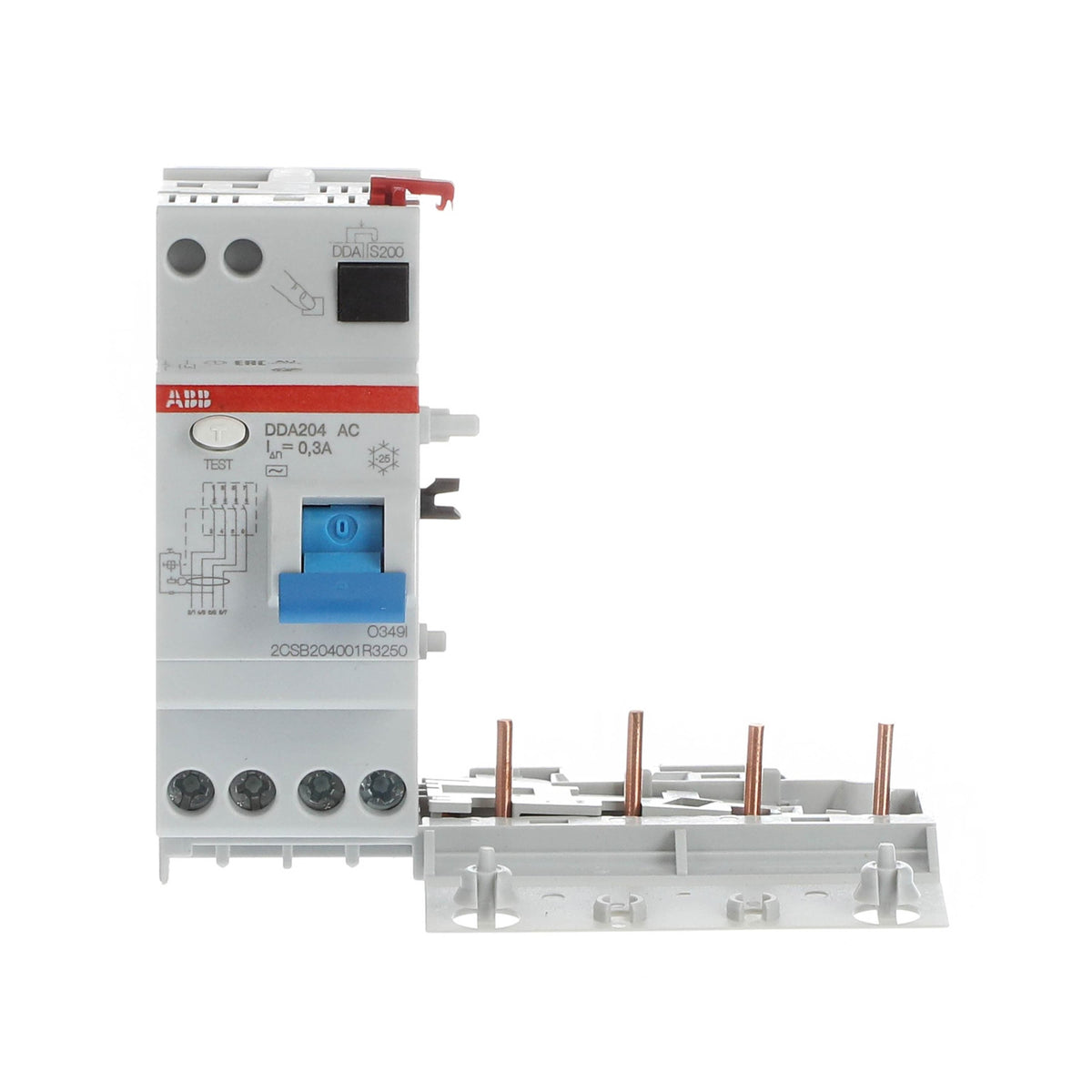

ABB 2CSB204001R3250 DDA204 AC-25/0.3 RCD block - 4P 25A 300mA
ABB 2CSB204001R3250 DDA204 AC-25/0.3 RCD block - 4P 25A 300mA

ABB 2CSB204001R3250 DDA204 AC-25/0.3 4P 25A 300mA Type AC RCD Block Residual Current Device Module

Brand: ABB
Reference No: 2CSB204001R3250
Catalog No: DDA204 AC-25/0.3
Series: Residual Current Devices RCD Blocks
Tariff Code (HS): 853630
Rated Current: 25
Breaking Type: Type AC, Instantaneous
Rated Voltage: 230/400 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$89.99

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 4P, 25 A and 300 mA Type AC, the ABB 2CSB204001R3250 DDA204 AC-25/0.3 is a residual current device block with instantaneous tripping. Instead of a standalone RCCB, it clips onto a System pro M compact S200 or S300P four-pole MCB to add earth-fault protection, taking up 6 DIN-rail module positions and sharing the host breaker's toggle.

Technical Specifications

SKU 2CSB204001R3250
Brand ABB
Series Residual Current Devices RCD Blocks
Catalog Designation DDA204 AC-25/0.3
EAN 8012542794509
Number of Poles 4P
Rated Current (In) 25 A
Rated Residual Current 300 mA
Type of Residual Current Type AC
Operating Characteristic Instantaneous
Rated Voltage (Ur) 230/400 V
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency (f) 50 / 60 Hz
Short-Circuit Current Rating (SCCR) UL/CSA 1 kA
Power Loss Total 3 W
Degree of Protection IP2X
Pollution Degree 2
Ambient Temperature -25...55 °C
Connecting Capacity Flexible 0...16 mm² / Rigid 0...16 mm²
Number of Modules 6
Product Net Width 105 mm
Product Net Weight 325 g

Certifications & Standards

  • IEC/EN 61009 Ann. G

Selection Notes

Four poles let this block protect a circuit that carries a neutral conductor, which the 3-pole DDA203 cannot do. At 25 A it fits lighter final circuits than the 63 A version in the same DDA204 frame, so the cable cross-section and connecting capacity (0...16 mm² here versus 0...25 mm² on the 63 A block) should be checked against the downstream load before specifying it. Tripping remains instantaneous at 300 mA, giving standard fire and indirect-contact protection rather than delayed selectivity.

Technical Details

Short Description
DDA204 AC-25/0.3 RCD block, 4P, 25 A, 300 mA Type AC, instantaneous; clips onto System pro M compact S200/S300P MCBs for earth-fault protection.
Rated Current (Ampere)
25
Rated Voltage (VAC)
230/400 V
Mounting Type
DIN-Rail
Protection Type
IP2X
Catalog No
DDA204 AC-25/0.3
Number of Poles
4P
Standards
IEC/EN 61009 Ann. G
Delivery Date (Days)
30 days
Model Number
DDA204 AC-25/0.3
Tariff Code
853630
