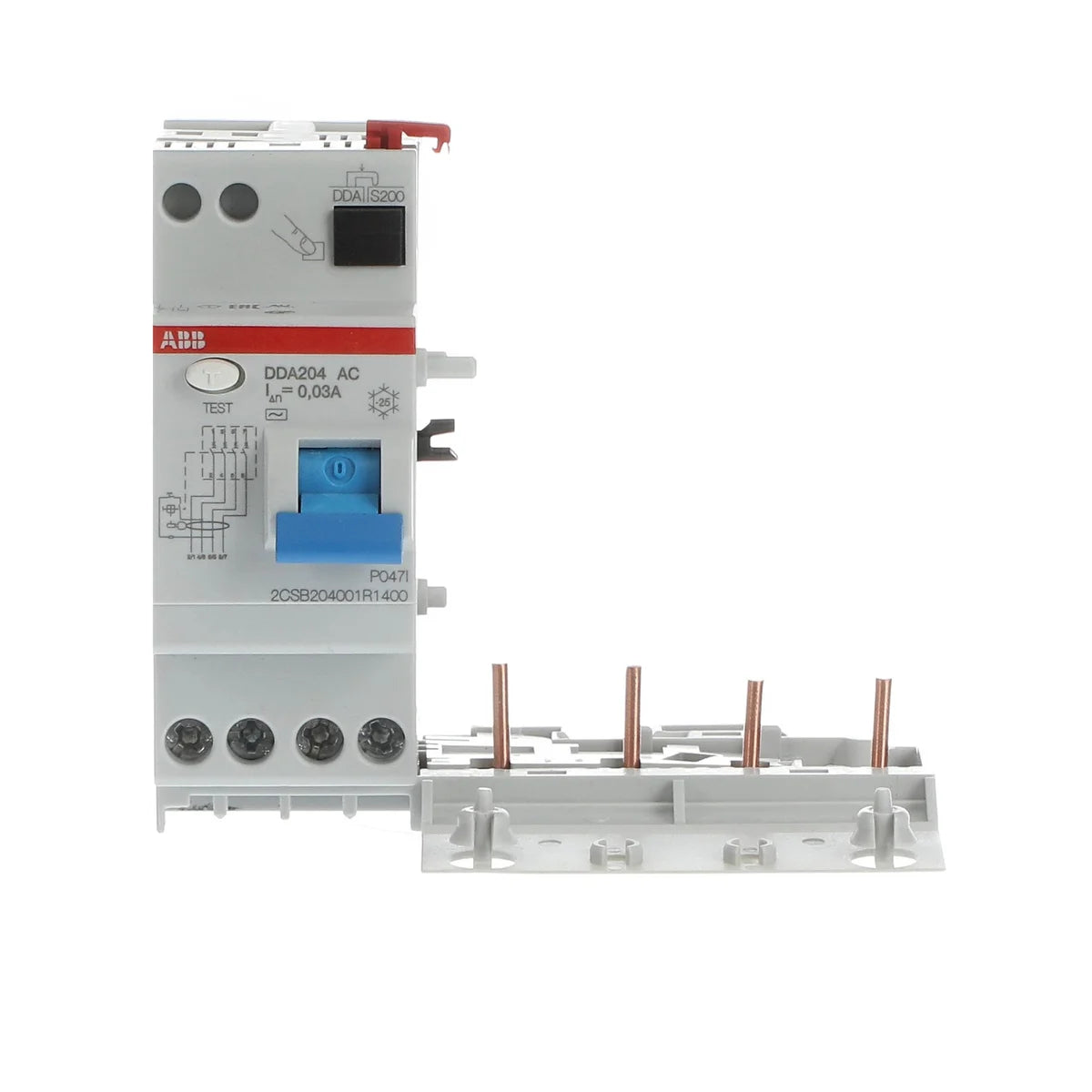

ABB 2CSB204001R1400 DDA204 AC-40/0.03 4P 40A 30mA Type AC Residual Current Circuit Breaker Module

The ABB DDA204 AC-40/0.03 (SKU: 2CSB204001R1400) is a 4-pole residual current circuit breaker (RCCB) module from the DDA200 series, rated at 40A with a 30mA sensitivity for Type AC earth-fault protection. Designed for integration into control panels and distribution boards, this module detects sinusoidal alternating residual currents and disconnects the circuit to protect personnel and equipment. Compact at 105mm × 93mm × 69mm and weighing just 175g, the DDA204 AC-40/0.03 is engineered to meet IEC 61009 and EN 61009 standards for demanding industrial and commercial installations.

Technical Specifications

Certifications & Standards

• IMQ: Italian quality certification for electrical products
• NF: French national certification mark for electrical equipment
• IEC 61009: International standard for residual current operated circuit-breakers with integral overcurrent protection
• EN 61009: European harmonised standard for RCCBs and RCBOs
• IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
• IEC/EN 61009: Combined IEC and EN compliance for residual current devices
• IEC 60068-2: Environmental testing standard for mechanical and climatic reliability
• EN 60664-1: European insulation coordination standard for low-voltage systems
• UL 2799: UL standard for electrical vehicle supply equipment and energy storage systems
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliance with EU Regulation (EC) No 1907/2006 on chemical safety
• WEEE: Waste Electrical and Electronic Equipment Directive — registered for proper end-of-life disposal

Applications & Use Cases

• Residential and commercial distribution boards requiring 4-pole earth-leakage protection
• Industrial control panels where personnel protection against indirect contact is mandatory
• Three-phase and neutral circuits demanding Type AC sinusoidal residual current detection
• Automation and process control installations complying with IEC 61009 / EN 61009
• Panel builders integrating compact RCCB modules into DIN-rail assemblies
