ABB 2CSB203001R3630 DDA203 AC-63/0.3 3P 63A 300mA Type AC RCD Block Residual Current Device Module

% $-76.44

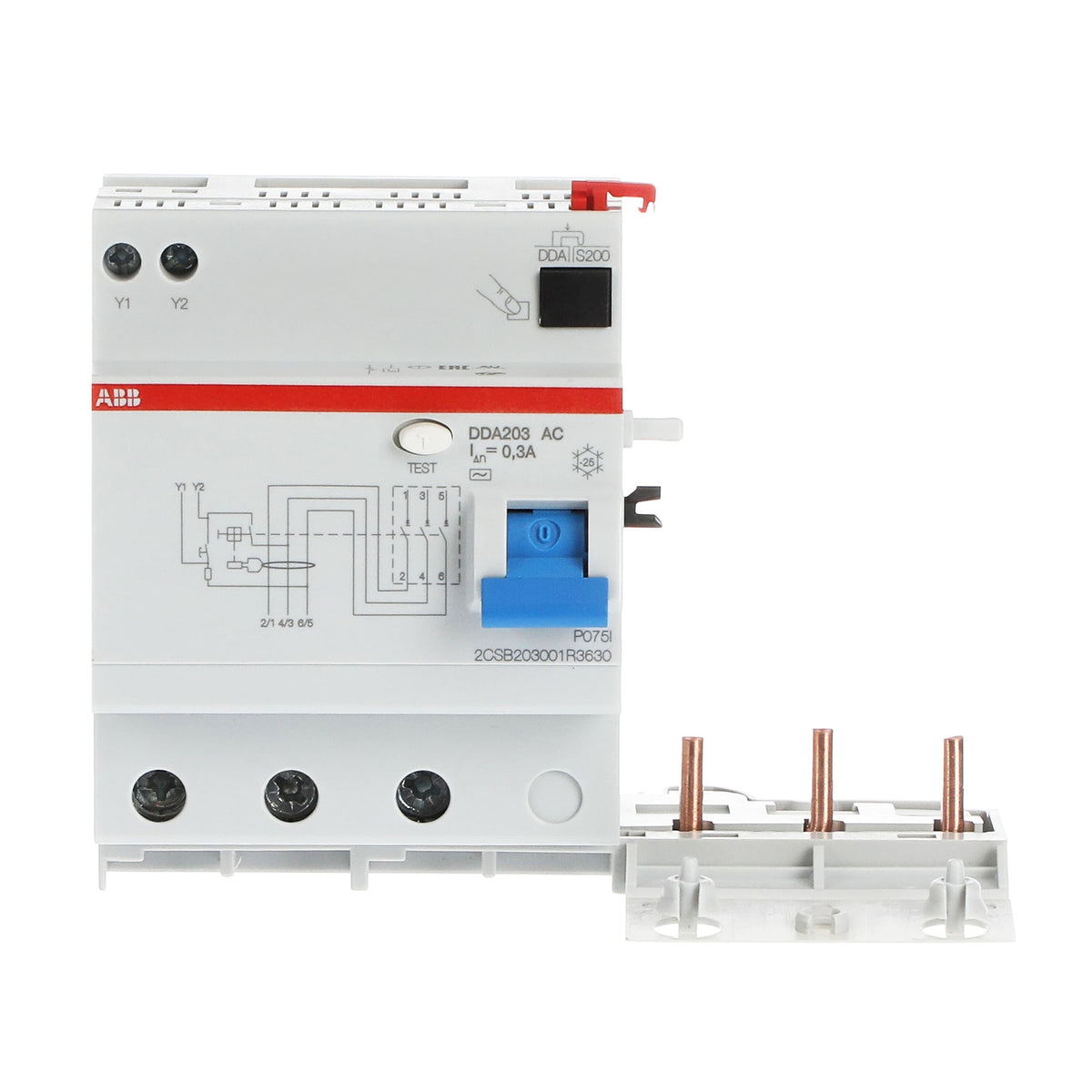

ABB 2CSB203001R3630 DDA203 AC-63/0.3 RCD block - 3P 63A 300mA
ABB 2CSB203001R3630 DDA203 AC-63/0.3 RCD block - 3P 63A 300mA

ABB 2CSB203001R3630 DDA203 AC-63/0.3 3P 63A 300mA Type AC RCD Block Residual Current Device Module

Brand: ABB
Reference No: 2CSB203001R3630
Catalog No: DDA203 AC-63/0.3
Series: Residual Current Devices RCD Blocks
Tariff Code (HS): 853630
Rated Current: 63
Breaking Type: Type AC, Instantaneous
Rated Voltage: 230/400 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$76.44

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CSB203001R3630 is a DDA203 AC-63/0.3 residual current device block rated 3P, 63 A, 300 mA, Type AC, with instantaneous tripping. It clips onto a System pro M compact S200 or S300P miniature circuit breaker to add earth-fault protection without a separate RCCB, occupying 7 DIN-rail module positions and sharing the host breaker's toggle and trip mechanism.

Technical Specifications

SKU 2CSB203001R3630
Brand ABB
Series Residual Current Devices RCD Blocks
Catalog Designation DDA203 AC-63/0.3
EAN 8012542793304
Number of Poles 3P
Rated Current (In) 63 A
Rated Residual Current 300 mA
Type of Residual Current Type AC
Operating Characteristic Instantaneous
Rated Voltage (Ur) 230/400 V
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency (f) 50 / 60 Hz
Short-Circuit Current Rating (SCCR) UL/CSA 1 kA
Power Loss Total 7.6 W
Degree of Protection IP2X
Pollution Degree 2
Ambient Temperature -25...55 °C
Connecting Capacity Flexible 0...25 mm² / Rigid 0...25 mm²
Number of Modules 7
Product Net Width 122.5 mm
Product Net Weight 325 g

Certifications & Standards

  • IEC/EN 61009 Ann. G

Selection Notes

The 3-pole configuration suits three-phase circuits with no neutral conductor, such as motor or heating-circuit protection downstream of a 3-pole MCB. At 300 mA Type AC sensitivity with instantaneous tripping, the block is intended for standard final-circuit fire and indirect-contact protection rather than for upstream discrimination against a sensitive downstream RCD. Where the protected circuit carries a neutral, the 4-pole DDA204 block is the correct choice instead of this one.

Technical Details

Short Description
DDA203 AC-63/0.3 RCD block, 3P, 63 A, 300 mA Type AC, instantaneous; clips onto System pro M compact S200/S300P MCBs for earth-fault protection.
Rated Current (Ampere)
63
Rated Voltage (VAC)
230/400 V
Mounting Type
DIN-Rail
Protection Type
IP2X
Catalog No
DDA203 AC-63/0.3
Number of Poles
3P
Standards
IEC/EN 61009 Ann. G
Delivery Date (Days)
30 days
Model Number
DDA203 AC-63/0.3
Tariff Code
853630
