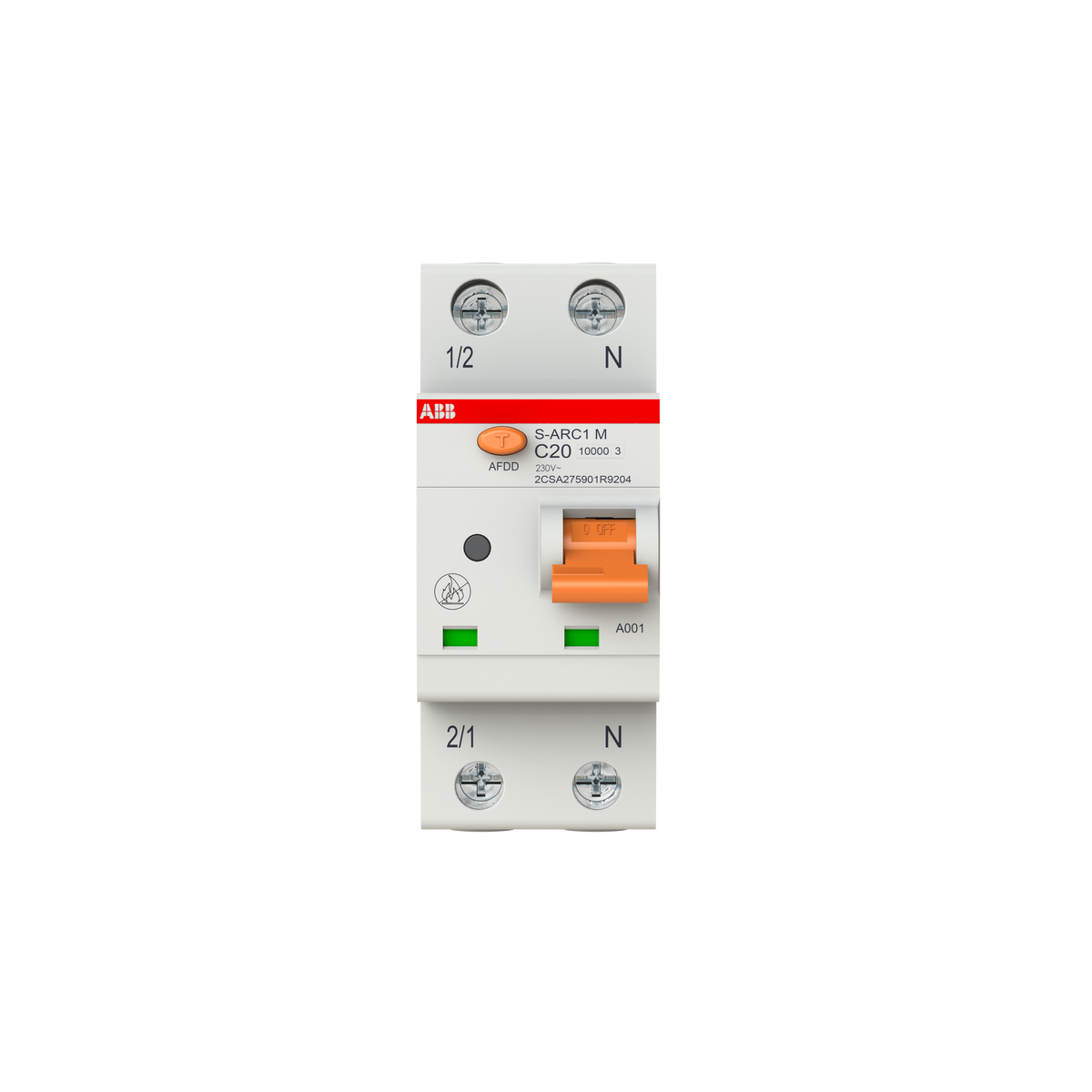

ABB 2CSA275901R9204 S-ARC1 M C20 1P+N 10kA Arc Fault Detection Device (AFDD)

% $-184.94
ABB 2CSA275901R9204 S-ARC1 M C20 AFDD - 20A Type C, 1P+N, 10kA
ABB 2CSA275901R9204 S-ARC1 M C20 AFDD - 20A Type C, 1P+N, 10kA

ABB 2CSA275901R9204 S-ARC1 M C20 1P+N 10kA Arc Fault Detection Device (AFDD)

Brand: ABB
Reference No: 2CSA275901R9204
Catalog No: S-ARC1 M C20
Series: Arc Fault Detection Devices with Integrated Overcurrent Protection - AFDD+MCB
Tariff Code (HS): 853630
Rated Current: 20
Breaking Capacity: 10 kA
Breaking Type: Curve C
Rated Voltage: 230/240 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$184.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 20 A with a Type C tripping characteristic, the ABB 2CSA275901R9204 S-ARC1 M C20 is a 1P+N arc fault detection device with an integrated miniature circuit breaker, giving 10 kA breaking capacity to IEC 60898-1 in a two-module DIN-rail enclosure that also covers overload and short-circuit protection, the highest-current M, C-curve variant supplied here.

Technical Specifications

SKU 2CSA275901R9204
Brand ABB
Series Arc Fault Detection Devices with Integrated Overcurrent Protection - AFDD+MCB
Catalog Designation S-ARC1 M C20
EAN 8012542340317
Tripping Characteristic C
Rated Current (In) 20 A
Rated Operational Voltage 230-240 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 7.5 kA
Rated Short-Circuit Capacity (IEC 60898-1) 10 kA
Number of Poles 1P+N
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Rated Frequency 50 Hz
Power Loss 3.6 W
Degree of Protection IP20 (terminals) / IP40 (housing)
Pollution Degree 2
Ambient Air Temperature (Operation) -25 to 55 C
Mounting Type DIN-Rail
Number of Modules 2
Dimensions (W x H x D) 35 x 85 x 69 mm
Net Weight 180 g

Certifications & Standards

  • IEC/EN 62606
  • IEC/EN 60898-1

Selection Notes

This 20 A rating is the top of the M, C-curve line covered here, with the C-curve trip band (5-10x In) carrying motor or transformer inrush that a B-curve device would read as a fault. Its 10 kA rated short-circuit capacity and Icu give it headroom over the base S-ARC1 C20 for boards with higher prospective fault current. Use 20 A only where the branch conductor is rated for it; the 10 A, 13 A and 16 A M, C-curve siblings serve lighter branches.

Technical Details

Short Description
ABB S-ARC1 M C20 AFDD with integrated 20A Type C MCB, 1P+N, 10kA breaking capacity (IEC 60898-1).
Rated Current (Ampere)
20
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
230/240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
S-ARC1 M C20
Number of Poles
1P+N
Standards
IEC/EN 62606, IEC/EN 60898-1
Delivery Date (Days)
30 days
Model Number
S-ARC1 M C20
Tariff Code
853630
