ABB 2CSA275901R9165 S-ARC1 M B16 1P+N 10kA Arc Fault Detection Device (AFDD)

% $-194.35

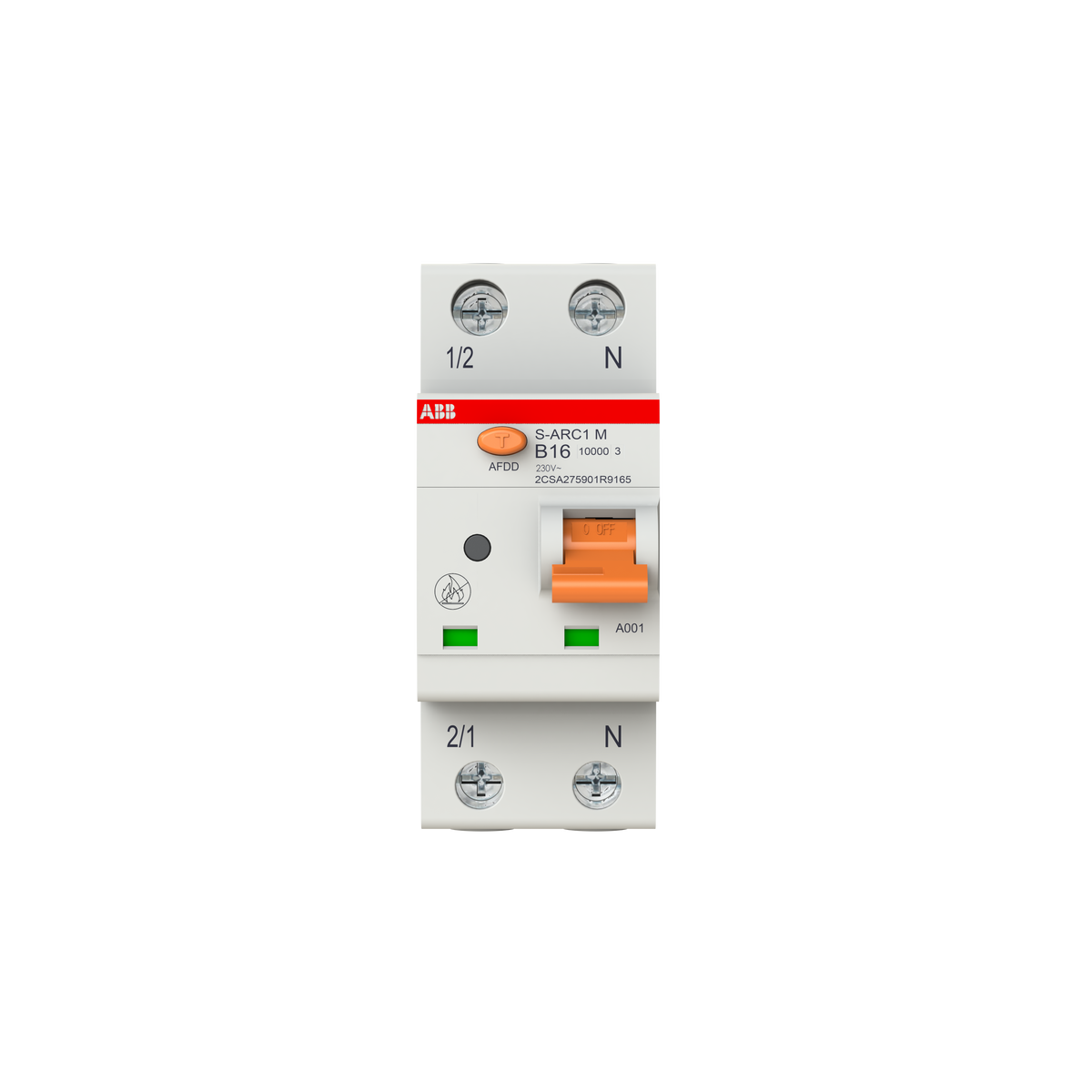

ABB 2CSA275901R9165 S-ARC1 M B16 AFDD - 16A Type B, 1P+N, 10kA
ABB 2CSA275901R9165 S-ARC1 M B16 AFDD - 16A Type B, 1P+N, 10kA

ABB 2CSA275901R9165 S-ARC1 M B16 1P+N 10kA Arc Fault Detection Device (AFDD)

Brand: ABB
Reference No: 2CSA275901R9165
Catalog No: S-ARC1 M B16
Series: Arc Fault Detection Devices with Integrated Overcurrent Protection - AFDD+MCB
Tariff Code (HS): 853630
Rated Current: 16
Breaking Capacity: 10 kA
Breaking Type: Curve B
Rated Voltage: 230/240 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$194.35

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 2CSA275901R9165 S-ARC1 M B16 packs a 16 A Type B miniature circuit breaker and arc fault detection into a single 1P+N, two-module DIN-rail device, delivering 10 kA breaking capacity to IEC 60898-1 together with overload, short-circuit and series/parallel arc-fault protection in one housing, giving it a higher fault-current rating than the base S-ARC1 B16.

Technical Specifications

SKU 2CSA275901R9165
Brand ABB
Series Arc Fault Detection Devices with Integrated Overcurrent Protection - AFDD+MCB
Catalog Designation S-ARC1 M B16
EAN 8012542342212
Tripping Characteristic B
Rated Current (In) 16 A
Rated Operational Voltage 230-240 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 7.5 kA
Rated Short-Circuit Capacity (IEC 60898-1) 10 kA
Number of Poles 1P+N
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Rated Frequency 50 Hz
Power Loss 2.8 W
Degree of Protection IP20 (terminals) / IP40 (housing)
Pollution Degree 2
Ambient Air Temperature (Operation) -25 to 55 C
Mounting Type DIN-Rail
Number of Modules 2
Dimensions (W x H x D) 35 x 85 x 69 mm
Net Weight 180 g

Certifications & Standards

  • IEC/EN 62606
  • IEC/EN 60898-1

Selection Notes

Its 10 kA rated short-circuit capacity and 10 kA Icu suit boards with higher prospective fault current than the base-series B16 is rated for, while the Type B trip (3-5x In) keeps it matched to resistive and lighting loads rather than motor inrush. Choose the 16 A rating when the circuit's conductor and load call for it; the M, B-curve siblings at 13 A and 20 A step down or up for other branches.

Technical Details

Short Description
ABB S-ARC1 M B16 AFDD with integrated 16A Type B MCB, 1P+N, 10kA breaking capacity (IEC 60898-1).
Rated Current (Ampere)
16
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
230/240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
S-ARC1 M B16
Number of Poles
1P+N
Standards
IEC/EN 62606, IEC/EN 60898-1
Delivery Date (Days)
30 days
Model Number
S-ARC1 M B16
Tariff Code
853630
