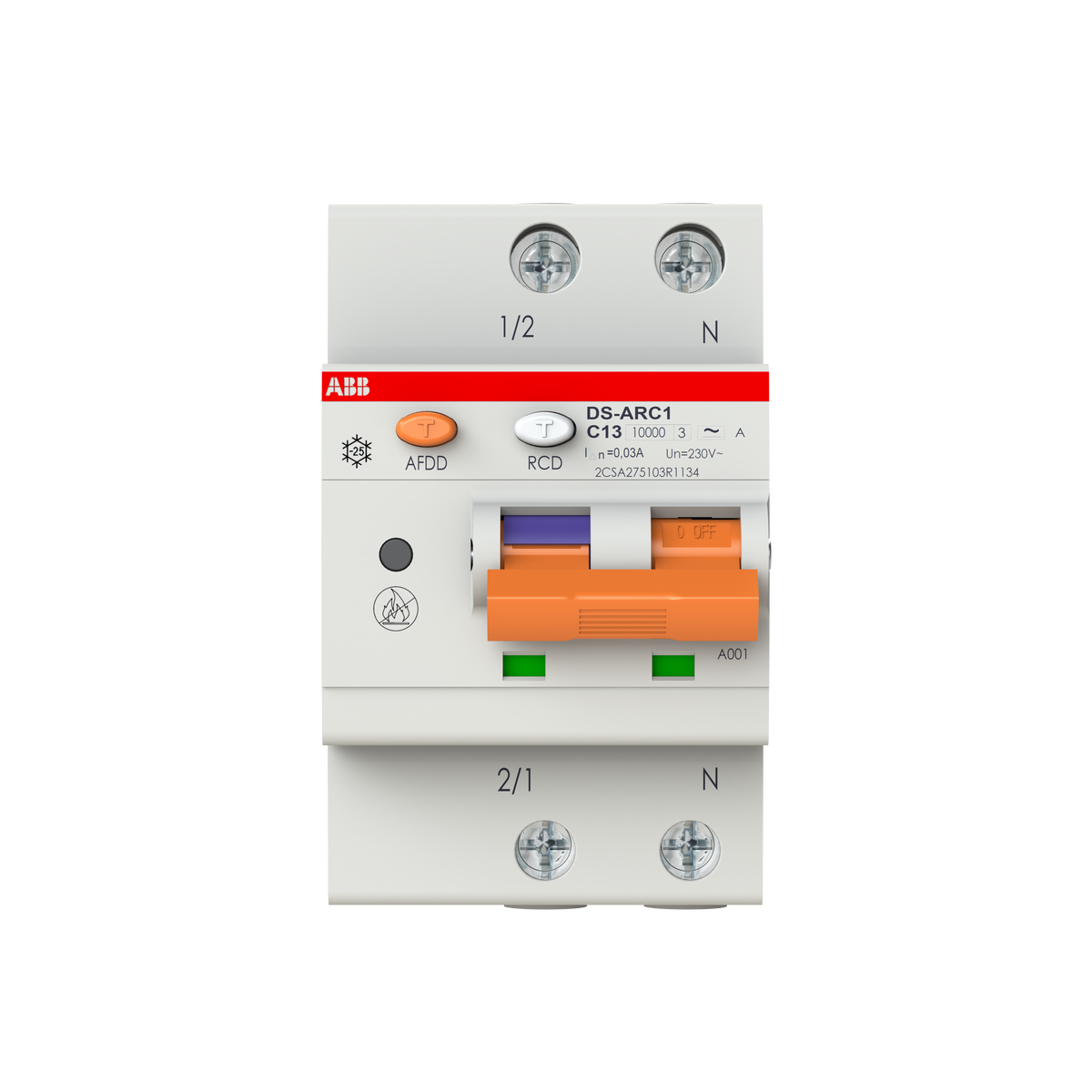

ABB 2CSA275103R1134 DS-ARC1 M C13 A30 1P+N Arc Fault Detection Device (AFDD)

ABB's 2CSA275103R1134 DS-ARC1 M C13 A30 packs arc-fault detection and an RCBO into one 1P+N, 3-module DIN-rail device. Rated at 13 A with a C tripping curve, it also carries 30 mA Type A residual current protection, covering overload, short-circuit, earth, parallel and series arc faults in a single footprint. Rated operational voltage is 230-240 V AC with a 10 kA ultimate breaking capacity.

Technical Specifications

Certifications & Standards

• IEC/EN 62606
• IEC/EN 61009-1
• IEC/EN 61009-2-1

Selection Notes

At 13 A, the 2CSA275103R1134 sits one step above the 10 A DS-ARC1 M C10 variant and below the 16 A version - choose it when the protected circuit's cable and connected load are rated for 13 A rather than rounding up to the next standard size. The C curve's 5-10x In instantaneous trip threshold tolerates the inrush of ballasts, small motors and similar loads without nuisance tripping. Integrating AFDD, RCBO and 30 mA Type A residual protection in one 3-module device avoids stacking three separate DIN-rail parts for the same circuit.
