ABB 2CSA255901R9404 S-ARC1 C40 1P+N 6kA Arc Fault Detection Device (AFDD)

% $-147.96

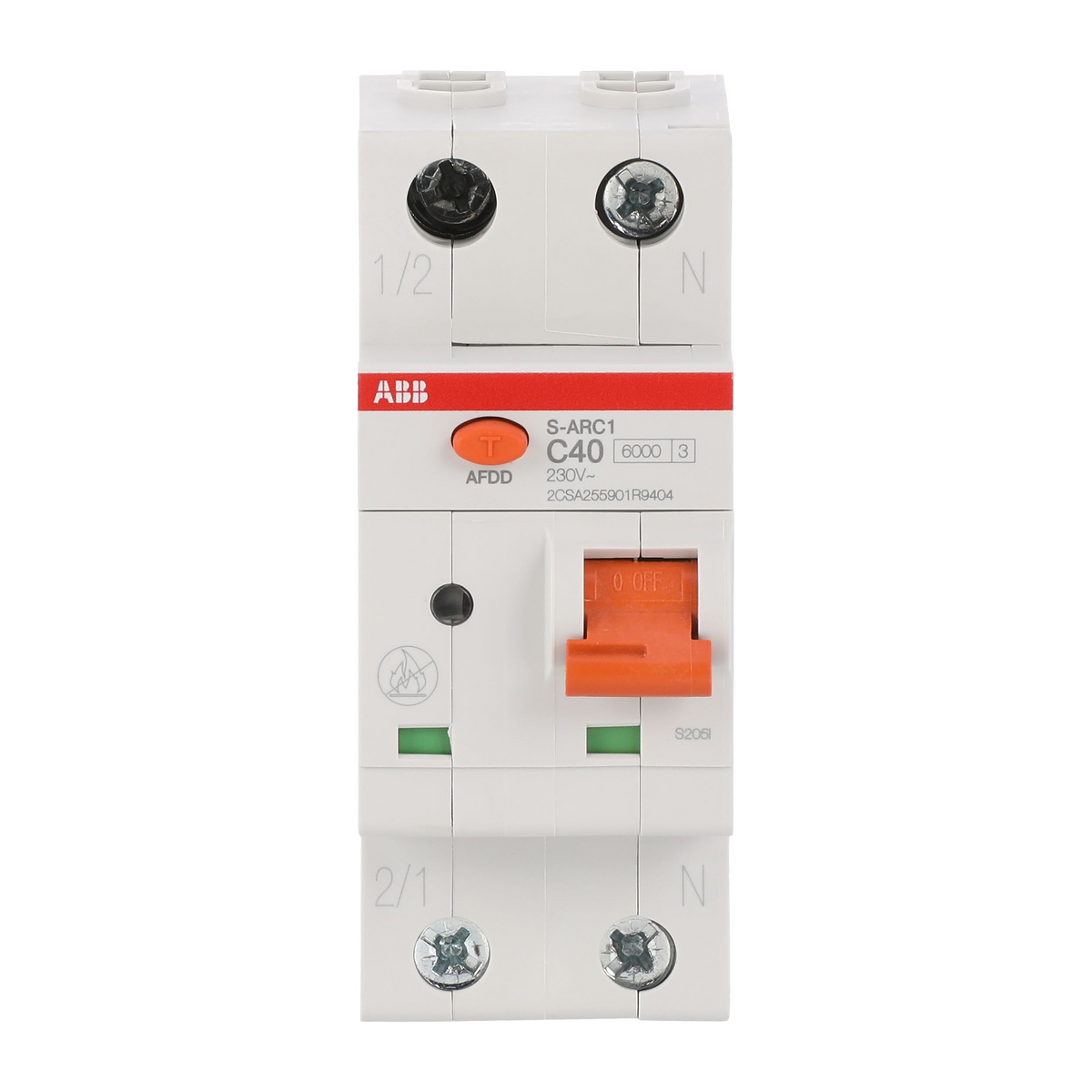

ABB 2CSA255901R9404 S-ARC1 C40 AFDD - 40A Type C, 1P+N, 6kA
ABB 2CSA255901R9404 S-ARC1 C40 AFDD - 40A Type C, 1P+N, 6kA

ABB 2CSA255901R9404 S-ARC1 C40 1P+N 6kA Arc Fault Detection Device (AFDD)

Brand: ABB
Reference No: 2CSA255901R9404
Catalog No: S-ARC1 C40
Series: Arc Fault Detection Devices with Integrated Overcurrent Protection - AFDD+MCB
Tariff Code (HS): 853630
Rated Current: 40
Breaking Capacity: 6 kA
Breaking Type: Curve C
Rated Voltage: 230/240 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$147.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 2CSA255901R9404 S-ARC1 C40 packs a 40 A Type C miniature circuit breaker and arc fault detection into a single 1P+N, two-module DIN-rail device, delivering 6 kA breaking capacity to IEC 60898-1 together with overload, short-circuit and series/parallel arc-fault protection in one housing, making it the highest-current C-curve option in the base S-ARC1 line.

Technical Specifications

SKU 2CSA255901R9404
Brand ABB
Series Arc Fault Detection Devices with Integrated Overcurrent Protection - AFDD+MCB
Catalog Designation S-ARC1 C40
EAN 8012542373919
Tripping Characteristic C
Rated Current (In) 40 A
Rated Operational Voltage 230-240 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 7.5 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 6 kA
Rated Short-Circuit Capacity (IEC 60898-1) 6 kA
Number of Poles 1P+N
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Rated Frequency 50 Hz
Power Loss 6.2 W
Degree of Protection IP20 (terminals) / IP40 (housing)
Pollution Degree 2
Ambient Air Temperature (Operation) -25 to 55 C
Mounting Type DIN-Rail
Number of Modules 2
Dimensions (W x H x D) 35 x 85 x 69 mm
Net Weight 180 g

Certifications & Standards

  • IEC/EN 62606
  • IEC/EN 60898-1

Selection Notes

At 40 A, the Type C trip band (5-10x In) is the top rating in this C-curve line, suited to boards feeding heavier inrush loads such as larger motors or transformer-fed circuits. Use 40 A only where the conductor is rated for it; the 32 A and lower C-curve siblings serve lighter branches on the same board. Its 6 kA rated short-circuit capacity fits typical final-circuit positions, while the S-ARC1 M C40 (10 kA) is the step up for higher fault-current boards.

Technical Details

Short Description
ABB S-ARC1 C40 AFDD with integrated 40A Type C MCB, 1P+N, 6kA breaking capacity (IEC 60898-1).
Rated Current (Ampere)
40
Breaking Capacity (kA)
6 kA
Rated Voltage (VAC)
230/240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
S-ARC1 C40
Number of Poles
1P+N
Standards
IEC/EN 62606, IEC/EN 60898-1
Delivery Date (Days)
30 days
Model Number
S-ARC1 C40
Tariff Code
853630
