ABB 2CSA255103R1204 DS-ARC1 C20 A30 1P+N 20A 7.5kA Arc Fault Detection Device (AFDD)

% $-219.48
ABB 2CSA255103R1204 DS-ARC1 C20 A30 AFDD+RCBO - 1P+N 20A 30mA
ABB 2CSA255103R1204 DS-ARC1 C20 A30 AFDD+RCBO - 1P+N 20A 30mA

ABB 2CSA255103R1204 DS-ARC1 C20 A30 1P+N 20A 7.5kA Arc Fault Detection Device (AFDD)

Brand: ABB
Reference No: 2CSA255103R1204
Catalog No: DS-ARC1 C20 A30
Series: Arc Fault Detection Devices with Integrated Overcurrent and Residual Current Protection - AFDD+RCBO
Tariff Code (HS): 853630
Rated Current: 20
Breaking Capacity: 7.5 kA
Breaking Type: Curve C, Type A 30 mA
Rated Voltage: 230/240 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$219.48

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

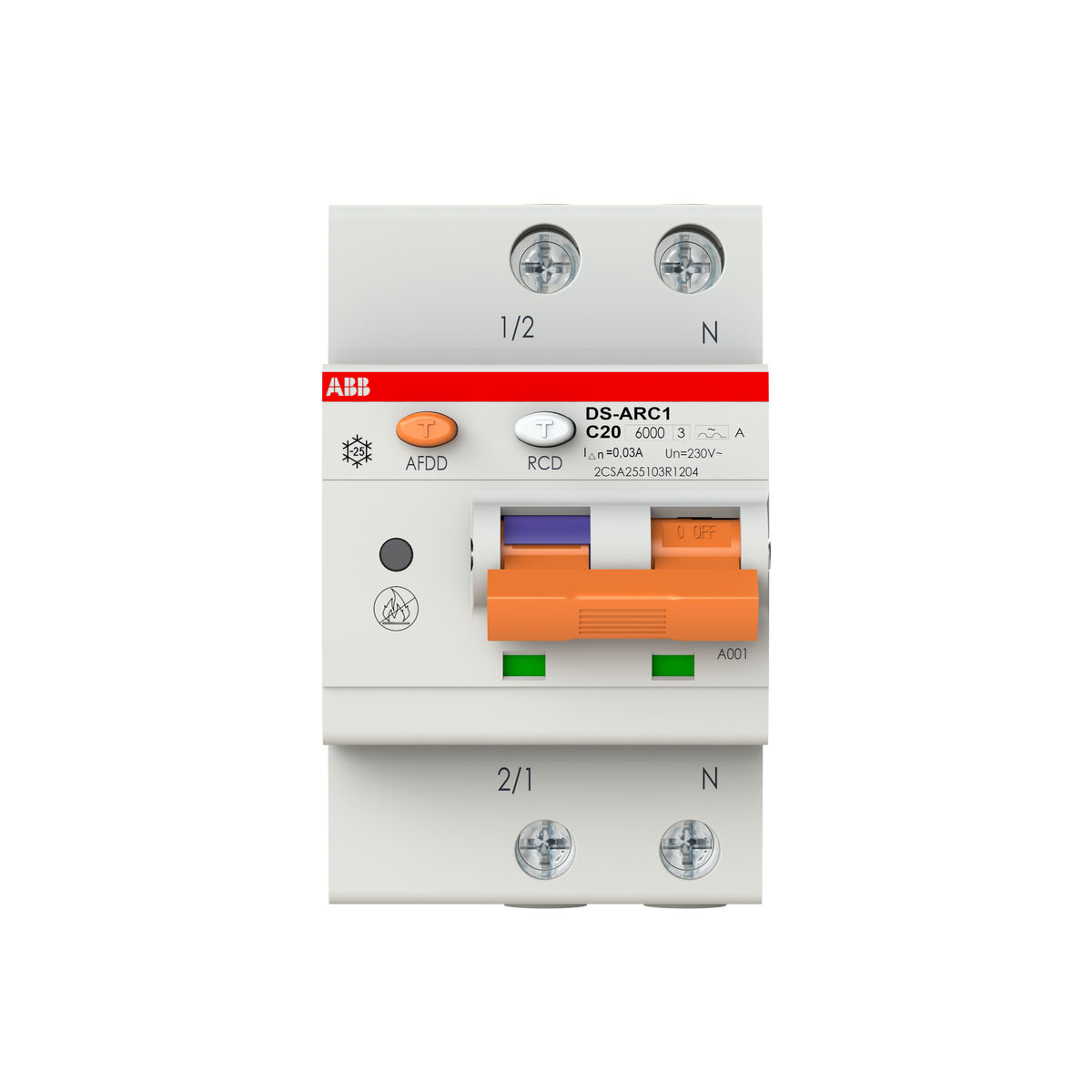

At the top of the C-curve DS-ARC1 range, the ABB 2CSA255103R1204 DS-ARC1 C20 A30 is a 1P+N arc fault detection device with integrated RCBO rated 20 A, 30 mA Type A and 7.5 kA breaking capacity. It combines overcurrent, short-circuit, earth-fault and arc-fault protection for one circuit in three DIN-rail modules.

Technical Specifications

SKU 2CSA255103R1204
Brand ABB
Series Arc Fault Detection Devices with Integrated Overcurrent and Residual Current Protection - AFDD+RCBO
Catalog Designation DS-ARC1 C20 A30
EAN 8012542735113
Number of Poles 1P+N
Rated Current (In) 20 A
Tripping Characteristic C
Rated Residual Current 30 mA
Type of Residual Current Type A
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 7.5 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 6 kA
Rated Residual Breaking Capacity (IΔm) 6 kA
Rated Operational Voltage 230...240 V AC
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency (f) 50 … 60 Hz
Overvoltage Category III
Power Loss Total 4.2 W
Degree of Protection Terminals IP20 | Housing IP40
Number of Modules 3
Product Net Width 52.5 mm
Product Net Weight 240 g

Certifications & Standards

  • IEC/EN 62606
  • IEC/EN 61009-1
  • IEC/EN 61009-2-1

Selection Notes

This 20 A C-curve device is sized for the heaviest motor or transformer-type load the DS-ARC1 range covers, tripping magnetically at 5 to 10 times In rather than the tighter 3-to-5 times In band of the B20 A30 version. If the 20 A circuit is purely resistive, the B-curve equivalent gives better short-circuit discrimination. Lower-current circuits with similar inrush characteristics step down to the 16, 13, 10 or 6 A versions in the same C-curve line.

Technical Details

Short Description
DS-ARC1 C20 A30 AFDD with integrated RCBO, 1P+N, 20 A, curve C, 30 mA Type A, 7.5 kA breaking capacity, 3 DIN-rail modules.
Rated Current (Ampere)
20
Breaking Capacity (kA)
7.5 kA
Rated Voltage (VAC)
230/240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
DS-ARC1 C20 A30
Number of Poles
1P+N
Standards
IEC/EN 62606, IEC/EN 61009-1, IEC/EN 61009-2-1
Delivery Date (Days)
30 days
Model Number
DS-ARC1 C20 A30
Tariff Code
853630
