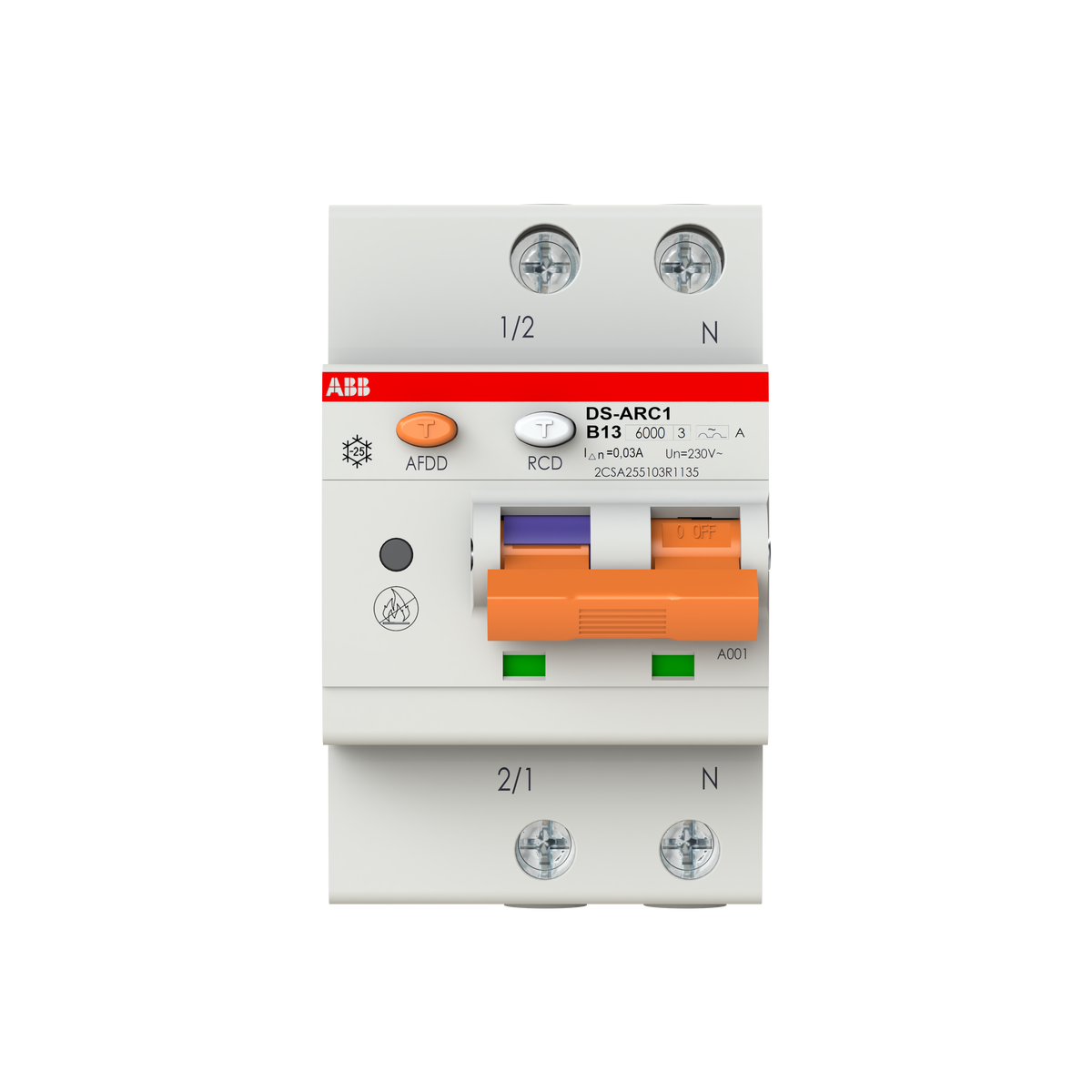

ABB 2CSA255103R1135 DS-ARC1 B13 A30 1P+N 13A 7.5kA Arc Fault Detection Device (AFDD)

% $-230.12
ABB 2CSA255103R1135 DS-ARC1 B13 A30 AFDD+RCBO - 1P+N 13A 30mA
ABB 2CSA255103R1135 DS-ARC1 B13 A30 AFDD+RCBO - 1P+N 13A 30mA

ABB 2CSA255103R1135 DS-ARC1 B13 A30 1P+N 13A 7.5kA Arc Fault Detection Device (AFDD)

Brand: ABB
Reference No: 2CSA255103R1135
Catalog No: DS-ARC1 B13 A30
Series: Arc Fault Detection Devices with Integrated Overcurrent and Residual Current Protection - AFDD+RCBO
Tariff Code (HS): 853630
Rated Current: 13
Breaking Capacity: 7.5 kA
Breaking Type: Curve B, Type A 30 mA
Rated Voltage: 230/240 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$230.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 1P+N, 13 A, curve B, 30 mA Type A and 7.5 kA breaking capacity, the ABB 2CSA255103R1135 DS-ARC1 B13 A30 packs an arc fault detection device and RCBO into three DIN-rail modules. It protects a single final circuit against series and parallel arc faults, overload, short-circuit and earth-fault current in one device.

Technical Specifications

SKU 2CSA255103R1135
Brand ABB
Series Arc Fault Detection Devices with Integrated Overcurrent and Residual Current Protection - AFDD+RCBO
Catalog Designation DS-ARC1 B13 A30
EAN 8012542736417
Number of Poles 1P+N
Rated Current (In) 13 A
Tripping Characteristic B
Rated Residual Current 30 mA
Type of Residual Current Type A
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 7.5 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 6 kA
Rated Residual Breaking Capacity (IΔm) 6 kA
Rated Operational Voltage 230...240 V AC
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency (f) 50 … 60 Hz
Overvoltage Category III
Power Loss Total 2.0 W
Degree of Protection Terminals IP20 | Housing IP40
Number of Modules 3
Product Net Width 52.5 mm
Product Net Weight 240 g

Certifications & Standards

  • IEC/EN 62606
  • IEC/EN 61009-1
  • IEC/EN 61009-2-1

Selection Notes

At 13 A, the B curve's 3-to-5 times In magnetic trip threshold still targets resistive lighting and socket loads rather than motor starting current. This rating fills the gap between the 10 A and 16 A versions in the same B-curve line, so pick it when the circuit's design current sits just above 10 A but below 16 A. A circuit with motor or transformer inrush at this current is better served by the C13 A30 version instead.

Technical Details

Short Description
DS-ARC1 B13 A30 AFDD with integrated RCBO, 1P+N, 13 A, curve B, 30 mA Type A, 7.5 kA breaking capacity, 3 DIN-rail modules.
Rated Current (Ampere)
13
Breaking Capacity (kA)
7.5 kA
Rated Voltage (VAC)
230/240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
DS-ARC1 B13 A30
Number of Poles
1P+N
Standards
IEC/EN 62606, IEC/EN 61009-1, IEC/EN 61009-2-1
Delivery Date (Days)
30 days
Model Number
DS-ARC1 B13 A30
Tariff Code
853630
