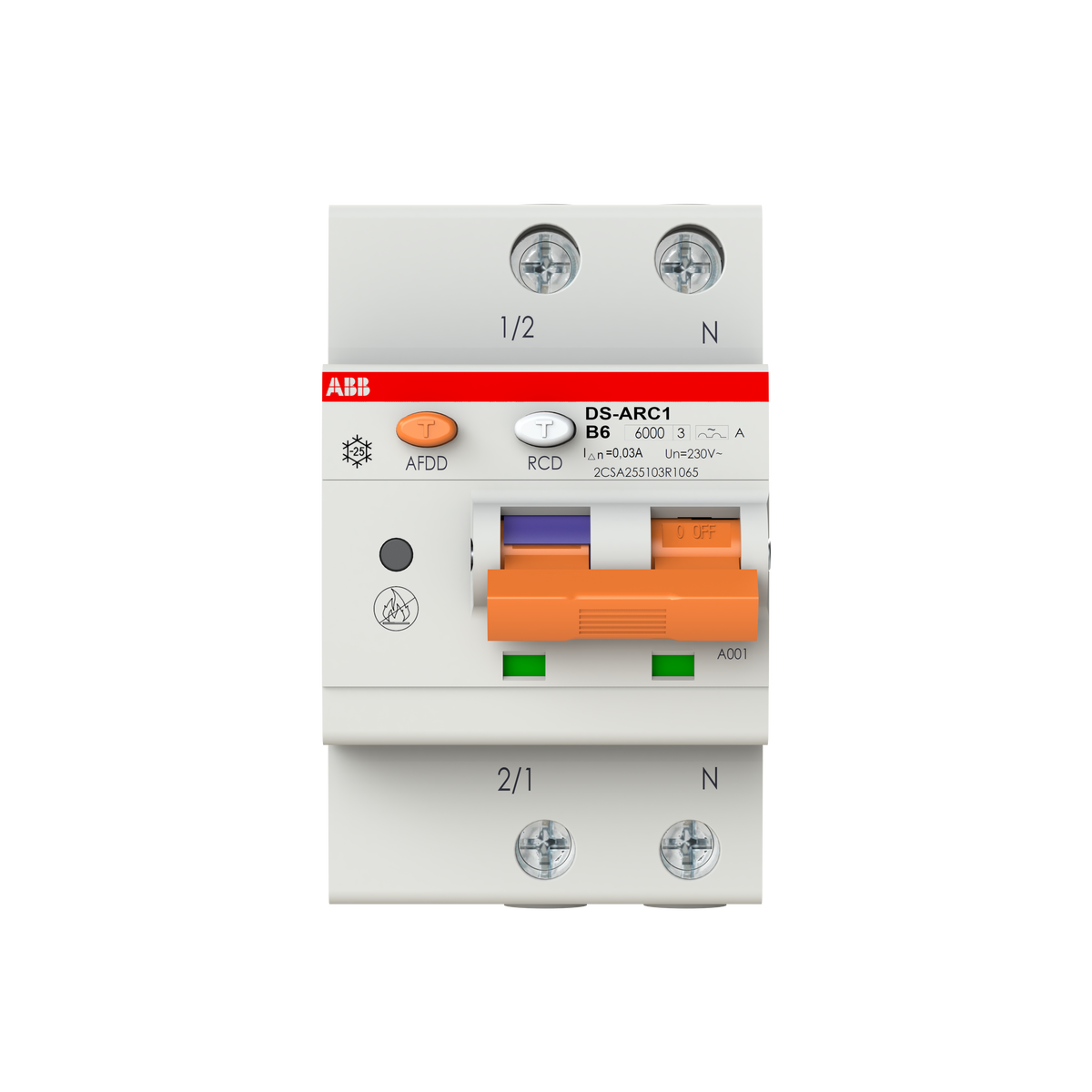

ABB 2CSA255103R1065 DS-ARC1 B6 A30 1P+N 6A 7.5kA Arc Fault Detection Device (AFDD)

% $-239.43
ABB 2CSA255103R1065 DS-ARC1 B6 A30 AFDD+RCBO - 1P+N 6A 30mA
ABB 2CSA255103R1065 DS-ARC1 B6 A30 AFDD+RCBO - 1P+N 6A 30mA

ABB 2CSA255103R1065 DS-ARC1 B6 A30 1P+N 6A 7.5kA Arc Fault Detection Device (AFDD)

Brand: ABB
Reference No: 2CSA255103R1065
Catalog No: DS-ARC1 B6 A30
Series: Arc Fault Detection Devices with Integrated Overcurrent and Residual Current Protection - AFDD+RCBO
Tariff Code (HS): 853630
Rated Current: 6
Breaking Capacity: 7.5 kA
Breaking Type: Curve B, Type A 30 mA
Rated Voltage: 230/240 V AC
Poles: 1P+N
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$239.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Six amps is the lowest rating in the ABB DS-ARC1 B-curve line, and the 2CSA255103R1065 DS-ARC1 B6 A30 delivers it as a 1P+N arc fault detection device with integrated RCBO, 30 mA Type A sensitivity and 7.5 kA breaking capacity. In three DIN-rail modules it protects one lightly loaded final circuit against overcurrent, short-circuit, earth-fault and arc-fault conditions.

Technical Specifications

SKU 2CSA255103R1065
Brand ABB
Series Arc Fault Detection Devices with Integrated Overcurrent and Residual Current Protection - AFDD+RCBO
Catalog Designation DS-ARC1 B6 A30
EAN 8012542736516
Number of Poles 1P+N
Rated Current (In) 6 A
Tripping Characteristic B
Rated Residual Current 30 mA
Type of Residual Current Type A
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 7.5 kA
Rated Service Short-Circuit Breaking Capacity (Ics) 6 kA
Rated Residual Breaking Capacity (IΔm) 6 kA
Rated Operational Voltage 230...240 V AC
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Frequency (f) 50 … 60 Hz
Overvoltage Category III
Power Loss Total 2.5 W
Degree of Protection Terminals IP20 | Housing IP40
Number of Modules 3
Product Net Width 52.5 mm
Product Net Weight 240 g

Certifications & Standards

  • IEC/EN 62606
  • IEC/EN 61009-1
  • IEC/EN 61009-2-1

Selection Notes

This 6 A rating fits a lightly loaded circuit, such as a single lighting point or control circuit, where the higher-current 10, 13, 16 or 20 A versions in the same B-curve line would be oversized for the conductor being protected. The B curve's 3-to-5 times In magnetic trip assumes a resistive, low-inrush load; a 6 A circuit feeding a small motor or transformer should use the C6 A30 version instead.

Technical Details

Short Description
DS-ARC1 B6 A30 AFDD with integrated RCBO, 1P+N, 6 A, curve B, 30 mA Type A, 7.5 kA breaking capacity, 3 DIN-rail modules.
Rated Current (Ampere)
6
Breaking Capacity (kA)
7.5 kA
Rated Voltage (VAC)
230/240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20 (terminals) / IP40 (housing)
Catalog No
DS-ARC1 B6 A30
Number of Poles
1P+N
Standards
IEC/EN 62606, IEC/EN 61009-1, IEC/EN 61009-2-1
Delivery Date (Days)
30 days
Model Number
DS-ARC1 B6 A30
Tariff Code
853630

Downloads

Customers say

Pairs well with
