ABB 2CMA100177R1000 B24 111-100 3-Phase 1A CT Steel Energy Meter

% $-294.86

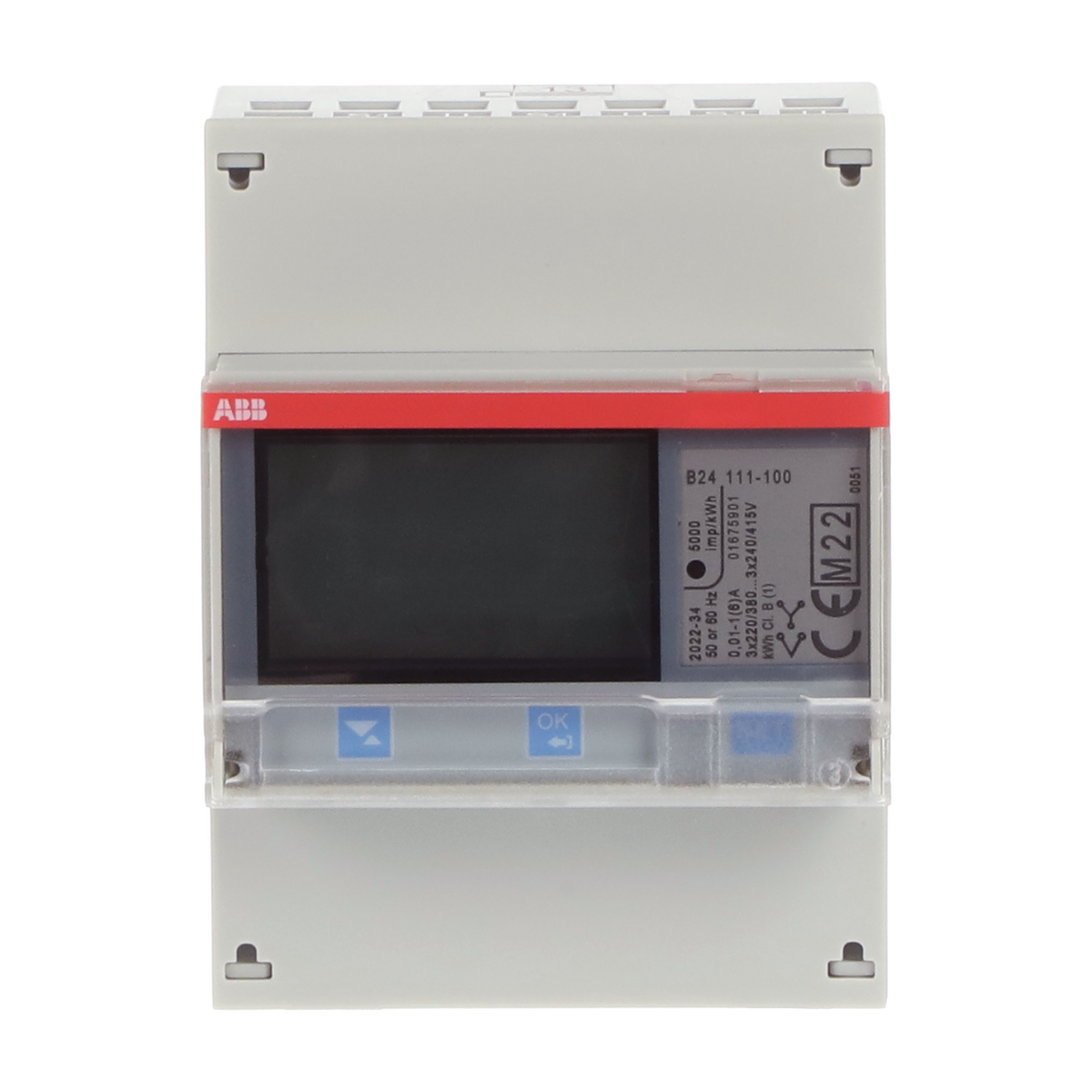

ABB 2CMA100177R1000 B24 111-100 Steel energy meter - 3-phase 1A CT-connected
ABB 2CMA100177R1000 B24 111-100 Steel energy meter - 3-phase 1A CT-connected

ABB 2CMA100177R1000 B24 111-100 3-Phase 1A CT Steel Energy Meter

Brand: ABB
Reference No: 2CMA100177R1000
Catalog No: B24 111-100
Series: kWh Meters, B-series
Tariff Code (HS): 902830
Rated Voltage: 220/240 V AC
Poles: 4P
Communication: IR port
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$294.86

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CMA100177R1000 (B24 111-100) is a 3-phase, transformer-connected DIN-rail kWh meter from the Steel range rated 1 A with Class B MID (±1%) accuracy for active energy only. It supports current transformers of 1 A or 5 A secondary, communicates via IR port, and provides a single digital output for pulse or alarm signaling.

Technical Specifications

Catalog Designation B24 111-100
SKU 2CMA100177R1000
Brand ABB
Series kWh Meters, B-series
EAN 7392696001779
Function Electricity Meter (Steel)
Additional Information CT (1A, 5A)
Rated Current (In) Maximum 6 A
Rated Voltage (Ur) 220-240 V (N-L) / 380-415 V (L-L)
Voltage Range 3x176-276 V
Frequency 50-60 Hz
Power Consumption 0.721 W
Number of Poles 4P
Number of Phases 3-phase
Tariff One-Tariff
Accuracy Class B MID (±1%)
Communication Interface IR port
Digital Output 1
Connecting Capacity 0.5-10 mm²
Degree of Protection IP20
Ambient Temperature -40 to 70°C
Mounting DIN-Rail, 4 modules
Width 70 mm
Height 26.5 mm
Depth 65 mm
Weight 250 g

Certifications & Standards

  • EN 50470-1

Selection Notes

The B24 111-100 is transformer-connected (1 A or 5 A CT secondary) rather than direct-wired, so it meters higher-current feeders that a direct-connect meter cannot handle safely. Single-tariff operation and one digital output keep it simple for basic active-energy billing without time-of-use rates. Choose a multi-tariff CT meter instead when tariff shifting or two-way communication is required.

Technical Details

Short Description
ABB B24 111-100 3-phase Steel kWh DIN-rail energy meter, 1A CT-connected, Class B MID accuracy, IP20.
Rated Voltage (VAC)
220/240 V AC
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
B24 111-100
Number of Poles
4P
Standards
EN 50470-1
Delivery Date (Days)
30 days
Model Number
B24 111-100
Tariff Code
902830
