Part number
2CDS634031R0064
Model no
BMS314C06
$41.72 On request Dispatch — · From TürkiyeGet a Quote

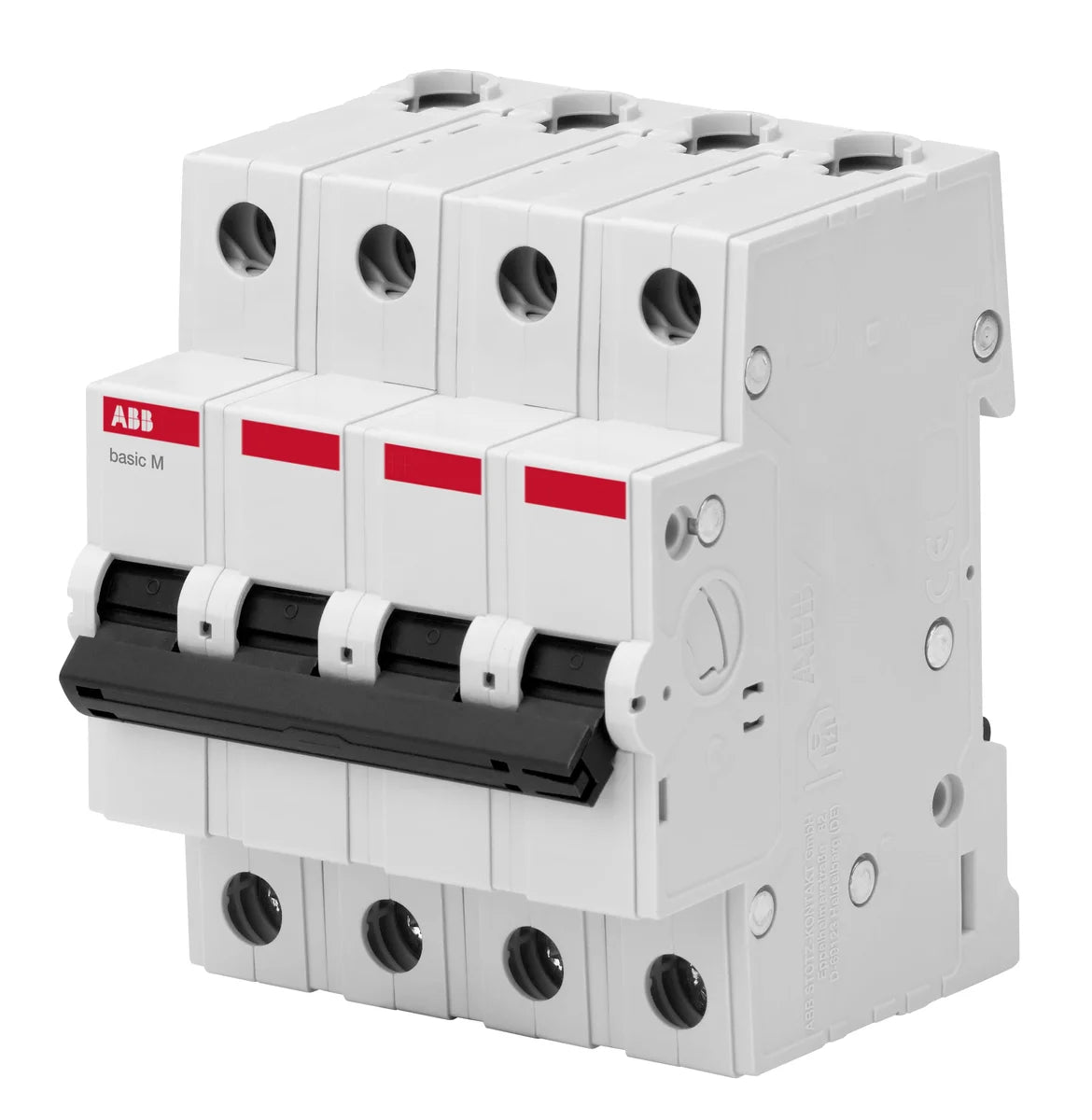

ABB 2CDS634031R0064 BMS314C06 4P 6A 3kA Curve-C DIN Rail Miniature Circuit Breaker

Rated current
6 A
Rated operational voltage
400 V AC
Poles
4P
EAN
4016779045285
Other ratings in ABB Basic M All 9 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
6 2CDS634031R0064This part On request $41.72
10 2CDS634031R0104 On request $34.75
16 2CDS634031R0164 On request $34.75
20 2CDS634031R0204 On request $34.75
25 2CDS634031R0254 On request $34.75
Description

About the BMS314C06

The ABB BMS314C06 miniature circuit breaker (MCB), SKU 2CDS634031R0064, is a 4-pole, 6 A, Curve-C device rated at 400 V AC with a breaking capacity of 3 kA — delivering reliable overcurrent and short-circuit protection for residential, commercial, and light-industrial distribution boards. Part of ABB's Basic M BMS series, the BMS314C06 complies with both IEC 60898-1 and IEC 60947-2, making it suitable for a wide range of panel-building applications. Its compact DIN-rail design (70 mm × 88 mm × 69 mm, 372 g) fits neatly into standard enclosures with a power dissipation of just 2 W per pole.

Certifications & Standards

  • IEC 60898-1: Household and similar installations — circuit breakers for overcurrent protection
  • IEC 60947-2: Low-voltage switchgear and controlgear — circuit breakers for industrial use
  • IEC/EN 60664-1: Insulation coordination for equipment within low-voltage supply systems
  • IEC/EN 60664: Insulation coordination for low-voltage equipment
  • RoHS (EU Directive 2011/65/EU & Amendment 2015/863): Restriction of hazardous substances in electrical and electronic equipment
  • REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
  • WEEE: Waste electrical and electronic equipment directive compliance

Applications & Use Cases

  • Overcurrent and short-circuit protection in 4-wire (3-phase + neutral) distribution circuits
  • Residential and commercial distribution boards requiring simultaneous all-pole disconnection
  • Light-industrial control panels and machine building where IEC 60947-2 compliance is required
  • Building automation and HVAC distribution sub-circuits
  • Panel builders seeking a compact, DIN-rail-mounted 4P MCB with Curve-C characteristics for motor or transformer loads
Specification

Full specification

57 values · Last verified 30 Oct 2026

Technical 12

Energy Limiting Class 3
Electrical Endurance 4000 AC cycle
Mechanical Endurance 10000 cycle
Number of Protected Poles 4
Number of Poles 4P
Tightening Torque 2 N·m
Actuator Marking I / O
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Flexible 1 ... 16 mm², Rigid 1 ... 25 mm²
Wire Stripping Length 12.5 mm
Actuator Type Toggle

Electrical 10

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V, acc. to IEC 60947-2 440 V
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Input Voltage Type AC
Rated Current (In) 6 A
Rated Short-Circuit Capacity (AC) 3 kA, (400 V AC) 3 kA, (400 V) 3 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss at Rated Operating Conditions per Pole 2 W
Overvoltage Category III

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business
Show all 57 specifications ↓ Show less ↑29 more values in Identification, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS634031R0064
Type designation BMS314C06
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779045285
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 3 piece
Package Level 1 Gross Weight 1.2 kg

Environmental 3

Ambient Air Temperature Operation -5 ... +55 °C, Storage -40 ... +70 °C
Degree of Protection IP20, Enclosure with Cover IP40
Pollution Degree 2

Dimensions 6

Width in Number of Modular Spacings 4
Product Net Width 70 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 372 g
Built-In Depth (t2) 69 mm

Installation 1

Instructions and Manuals No document needed

External Classifications and Standards 4

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC 60898-1

Logistics 4

Shipping weight 1.293 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS634031R0064

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 9 ratings in ABB Basic M

ABB ABB Basic M series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS634031R0064 This part BMS314C06 On request — $41.72 Quote
10 A 2CDS634031R0104 BMS314C10 On request — $34.75 Quote
16 A 2CDS634031R0164 BMS314C16 On request — $34.75 Quote
20 A 2CDS634031R0204 BMS314C20 On request — $34.75 Quote
25 A 2CDS634031R0254 BMS314C25 On request — $34.75 Quote
32 A 2CDS634031R0324 BMS314C32 On request — $43.47 Quote
40 A 2CDS634031R0404 BMS314C40 On request — $45.17 Quote
50 A 2CDS634031R0504 BMS314C50 On request — $52.16 Quote
Certifications

Certifications and standards

  • RoHS
  • IEC 60898-1
Quick answers

Questions about the BMS314C06

What is the rated current of BMS314C06?

The rated current of BMS314C06 is 6 A.

Which supply voltage is BMS314C06 rated for?

The rated operational voltage of BMS314C06 is 400 V AC.

What is the HS code of BMS314C06 for customs?

The tariff (HS) code on file for BMS314C06 is 853620.

What is the EAN of BMS314C06?

The EAN (GTIN) of BMS314C06 is 4016779045285.

Where does BMS314C06 ship from, and how fast?

BMS314C06 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
