Part number
2CDS384001R0404
Model no
S304P-C40
$161.67 On request Dispatch — · From TürkiyeGet a Quote
S300P

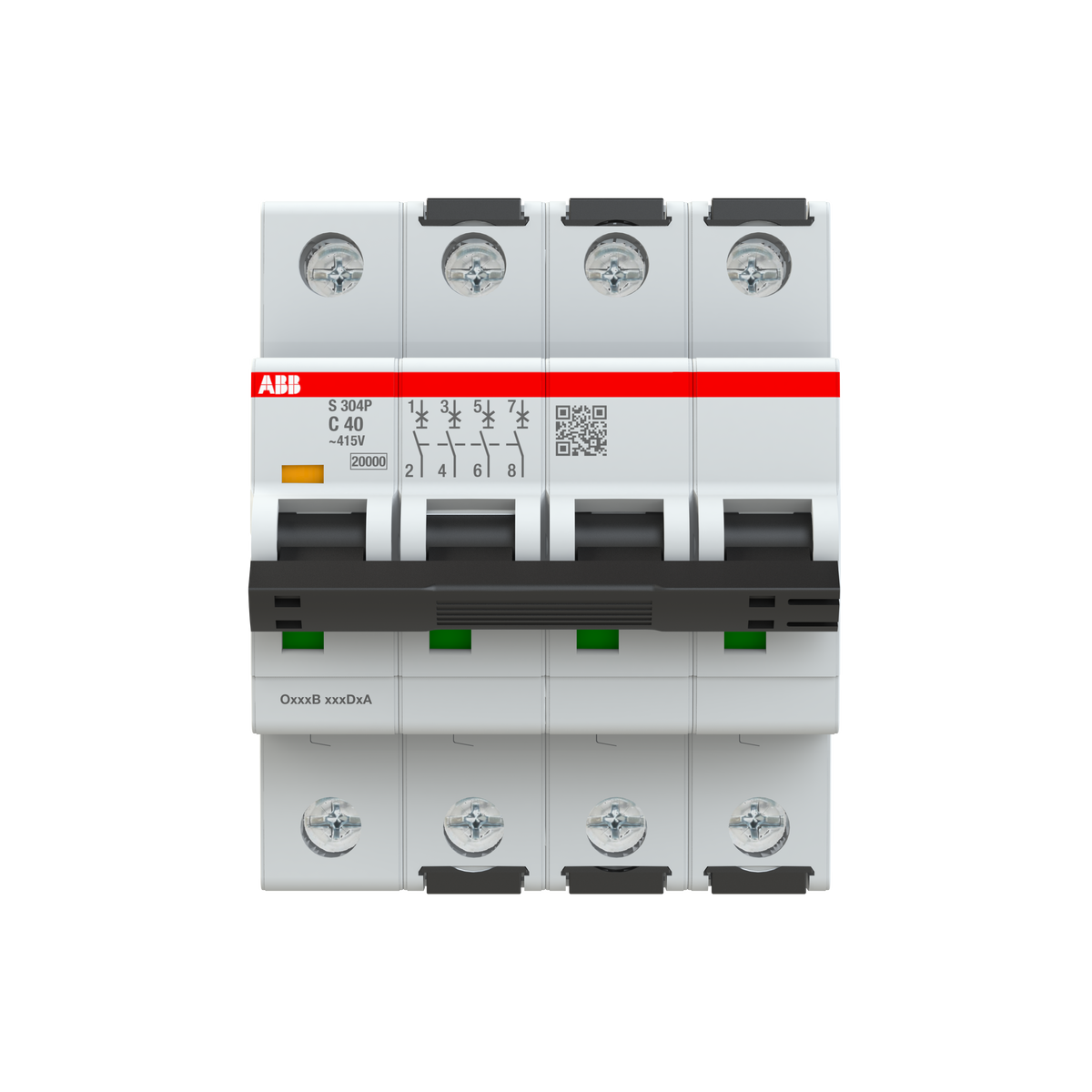

ABB 2CDS384001R0404 S304P-C40 4P 40A 20kA DIN Rail Miniature Circuit Breaker (MCB)

ABB 2CDS384001R0404 S300P S304P-C40 - 4P 40A Curve C miniature circuit breaker, 20 kA breaking capacity at 415 V AC.

Rated current
40 A
Rated operational voltage
415 V AC
Poles
4P
Breaking capacity
20 kA
EAN
4016779135689
Description

About the S304P-C40

ABB's S300P series 2CDS384001R0404 (S304P-C40) is a 4-pole, 40 A miniature circuit breaker with a Curve C trip and 20 kA breaking capacity at 415 V AC, dual-certified to IEC/EN 60898-1 and IEC/EN 60947-2. Its UL 1077 rating adds 10 kA interrupting capacity at 480Y/277 V AC for mixed IEC/UL installations.

Certifications & Standards

  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
  • CSA 22.2 No. 235

Selection Notes

At 40 A, Icn is 20 kA at 415 V AC, the same ceiling as the 32 A frame in the S304P-C family and a step down from the 25 kA held by the 10-25 A range. This is adequate for most industrial boards, but where the prospective fault current at the installation point approaches 20 kA, verify the upstream protection's let-through energy before relying on this breaker alone. Curve C's 5-10 x In magnetic trip threshold matches loads with moderate inrush rather than purely resistive circuits. The 4-pole configuration switches all three phases plus the neutral, which is needed on TN-C-S or TT systems where the neutral must also be isolated.

Specification

Full specification

80 values · Last verified 02 Oct 2026

Technical 19

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (415 V AC) 25 kA, (440 V AC) 15 kA, (400 V) 25 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 4
Number of Poles 4P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 14 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 415 V AC, acc. to IEC 60947-2 415 V AC
Operational Voltage Maximum (Incl. Tolerance) 457 V AC, Maximum 457 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Input Voltage Type AC/DC
Rated Current (In) 40 A
Rated Short-Circuit Capacity (AC) 20 kA, (400 V) 20 kA
Rated Frequency (f) 50 / 60 Hz, DC
Power Loss 11.6 W, at Rated Operating Conditions per Pole 2.9 W
Overvoltage Category IV

Design 1

Housing Material Insulation Group I, RAL 7035
Show all 80 specifications ↓ Show less ↑49 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS384001R0404
Type designation S304P-C40
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779135689
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units box 1 piece
Package Level 1 Gross Weight 0.532 kg
E-Number (Sweden) 2101380

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 125 V DC, 480Y / 277 V AC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (125 V DC) 10 kA, (480Y / 277 V AC) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 6

Ambient Air Temperature Operation -40 ... +70 °C, Storage -55 ... +70 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 3 shocks 18 ms

Dimensions 7

Width in Number of Modular Spacings 4
Product Net Width 70 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.512 kg
Pole Net Weight 0.124 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAF617138_EPLAN

Installation 3

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any
Grid Distance 90 mm

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency CSA, IEC, EN, UL
Standardization Body EN, IEC, UL, CSA

Logistics 4

Shipping weight 0.512 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 02 Oct 2026

Documents

Documents for 2CDS384001R0404

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CSA 22.2 No. 235
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S304P-C40

What is the rated current of S304P-C40?

The rated current of S304P-C40 is 40 A.

Which supply voltage is S304P-C40 rated for?

The rated operational voltage of S304P-C40 is 415 V AC.

What is the HS code of S304P-C40 for customs?

The tariff (HS) code on file for S304P-C40 is 853620.

What is the EAN of S304P-C40?

The EAN (GTIN) of S304P-C40 is 4016779135689.

Where does S304P-C40 ship from, and how fast?

S304P-C40 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
