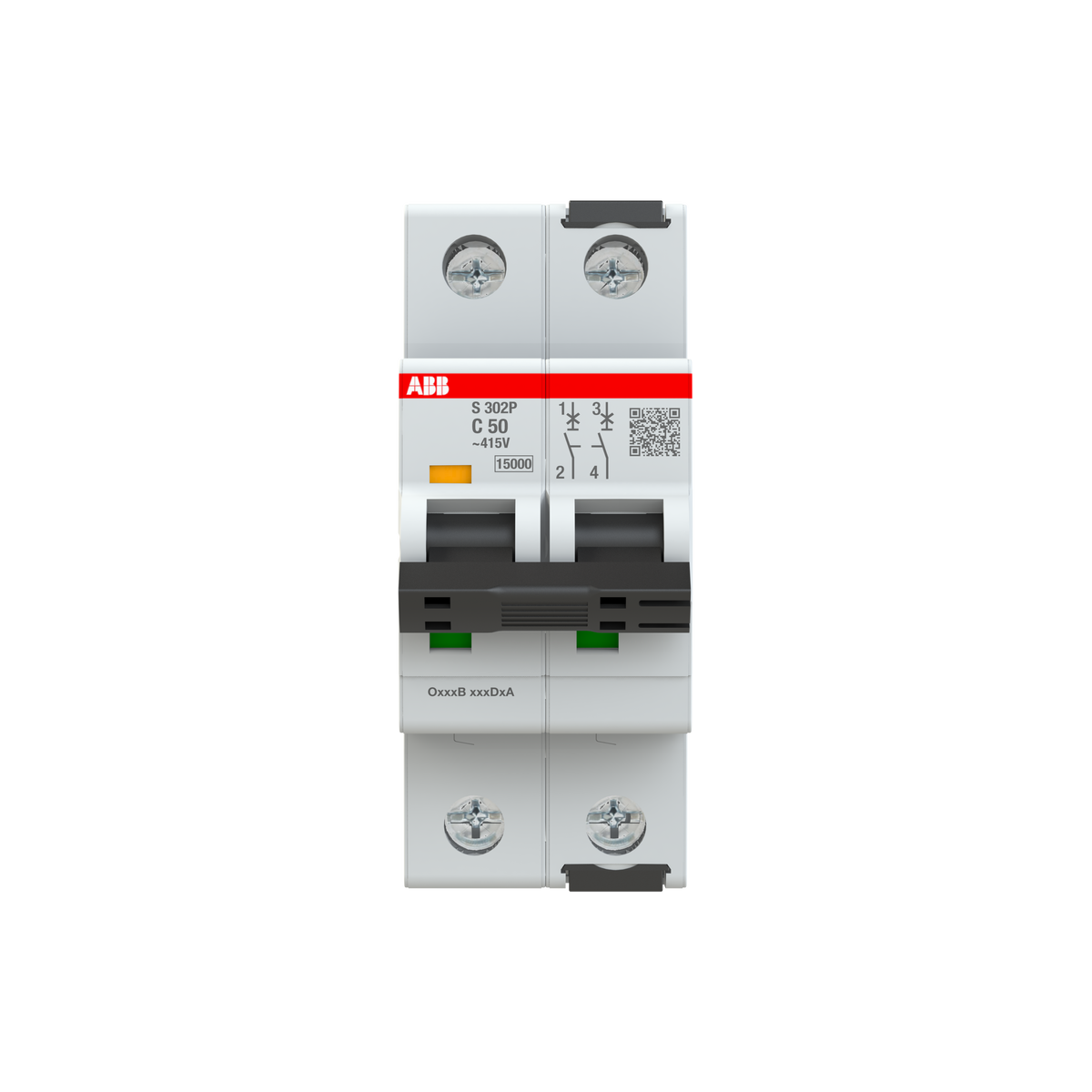

ABB 2CDS382001R0504 S302P-C50 2P 50A 15kA DIN Rail Miniature Circuit Breaker (MCB)

Rated at 50 A, the ABB 2CDS382001R0504 (S302P-C50) is a 2-pole S300P miniature circuit breaker with Curve C tripping and a 15 kA breaking capacity at 415 V AC. Built to IEC/EN 60898-1 and IEC/EN 60947-2 and listed to UL 1077 at 10 kA / 480Y/277 V AC, it switches and protects DIN-rail feeder and branch circuits.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1
• IEC/EN 60947-2
• UL 1077
• CSA 22.2 No. 235

Selection Notes

At the top of the S302P-C current range, the 50 A rating carries only 15 kA Icn at 415 V AC - lower than the 20 kA held by the 32 A frame in the same family - so confirm the prospective short-circuit current at the board stays at or below 15 kA, or back this breaker up with a current-limiting device upstream. Curve C's 5-10 x In magnetic trip threshold still fits loads with moderate inrush such as small motors or transformers rather than purely resistive circuits. The 2-pole configuration switches both line conductors, which is required when the neutral must also be isolated on a TN-C-S or IT system.
