ABB 2CDS381001R0634 S301P-C63 1P 63A 15kA DIN Rail Miniature Circuit Breaker (MCB)

% $-52.75

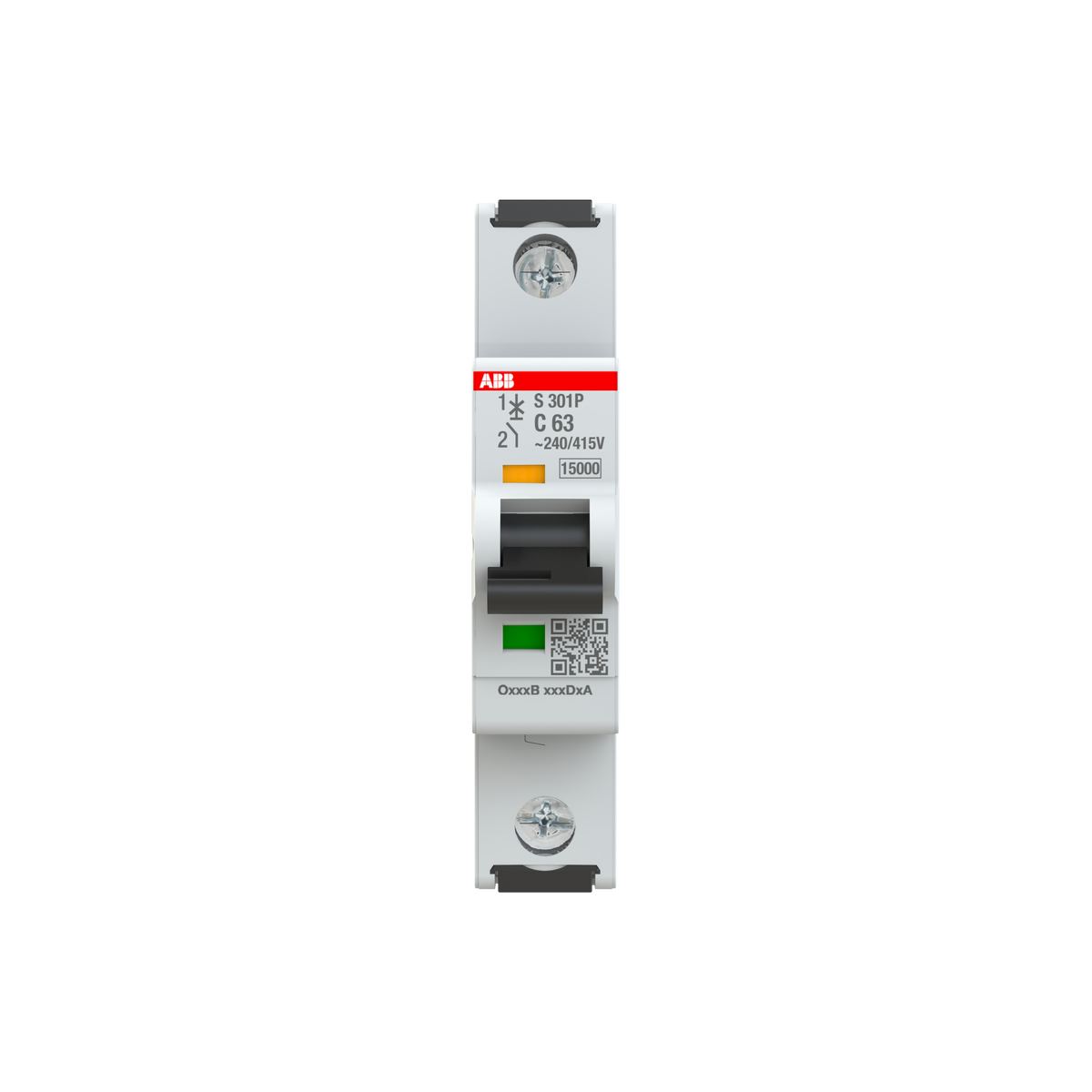

ABB 2CDS381001R0634 S301P-C63 MCB 1P 63A - 15kA breaking capacity
ABB 2CDS381001R0634 S301P-C63 MCB 1P 63A - 15kA breaking capacity

ABB 2CDS381001R0634 S301P-C63 1P 63A 15kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CDS381001R0634
Catalog No: S301P-C63
Series: S300P
Tariff Code (HS): 853620
Rated Current: 63
Breaking Capacity: 15 kA
Breaking Type: Curve C
Rated Voltage: 240 V AC
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$52.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

At the top of its 1-pole range, the ABB 2CDS381001R0634 S301P-C63 miniature circuit breaker is rated 63 A with a C tripping characteristic for industrial AC/DC circuits in ABB's System pro M compact S300P series. It carries a 15 kA breaking capacity (Icn) under IEC 60898-1, versus a 100 kA IEC 60947-2 Icu at 230/240 V AC.

Technical Specifications

SKU 2CDS381001R0634
Brand ABB
Series S300P
Catalog Designation S301P-C63
EAN 4016779079945
Number of Poles 1P
Rated Current (In) 63 A
Tripping Characteristic C
Input Voltage Type AC/DC
Rated Short-Circuit Capacity (Icn, IEC 60898-1, AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu, IEC 60947-2) 25 kA at 240 V AC, 72 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) 7.5 kA at 240 V AC, 72 V DC
Rated Operational Voltage 240 V AC (IEC 60898-1 and IEC 60947-2)
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50/60 Hz / DC
Power Loss 6 W total
Overvoltage Category IV
Degree of Protection IP20 / IP40 with cover
Mounting TH35 DIN-Rail, any position, 90 mm grid distance
Net Weight 0.128 kg

Certifications & Standards

  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
  • CSA 22.2 No. 235

Selection Notes

As the highest-current S301P-C variant in this batch, 2CDS381001R0634 shares the 50 A model's 15 kA IEC 60898-1 Icn rather than the 25 kA used on the lower-current models - size short-circuit studies accordingly. At 63 A it suits a heavier sub-distribution branch or a small sub-main rather than a final circuit. Where the fault level exceeds 15 kA, coordinate it with an upstream current-limiting device rather than relying on Icu alone.

Technical Details

Short Description
ABB S301P-C63 miniature circuit breaker, 1P, 63 A, C curve, AC/DC, 15 kA breaking capacity, DIN-rail mount.
Rated Current (Ampere)
63
Breaking Capacity (kA)
15 kA
Rated Voltage (VAC)
240 V AC
Mounting Type
DIN-Rail
Protection Type
IP40
Catalog No
S301P-C63
Number of Poles
1P
Standards
CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Delivery Date (Days)
30 days
Model Number
S301P-C63
Tariff Code
853620
