ABB 2CDS381001R0504 S301P-C50 1P 50A 15kA DIN Rail Miniature Circuit Breaker (MCB)

% $-48.81

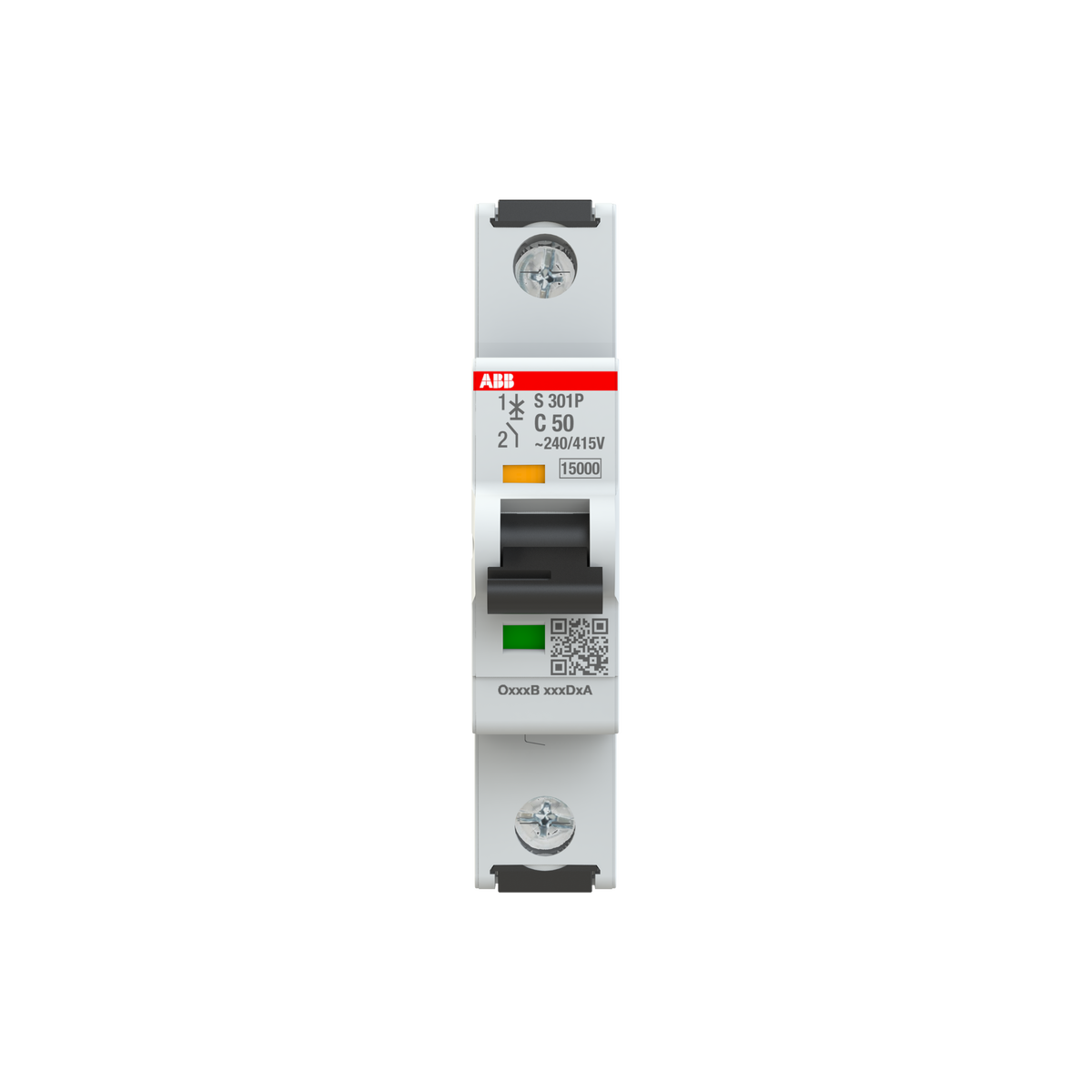

ABB 2CDS381001R0504 S301P-C50 MCB 1P 50A - 15kA breaking capacity
ABB 2CDS381001R0504 S301P-C50 MCB 1P 50A - 15kA breaking capacity

ABB 2CDS381001R0504 S301P-C50 1P 50A 15kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CDS381001R0504
Catalog No: S301P-C50
Series: S300P
Tariff Code (HS): 853620
Rated Current: 50
Breaking Capacity: 15 kA
Breaking Type: Curve C
Rated Voltage: 240 V AC
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$48.81

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CDS381001R0504 is an S301P-C50 miniature circuit breaker rated 50 A, 1-pole, with a C tripping characteristic, part of ABB's industrial-duty System pro M compact S300P range. Its IEC 60898-1 breaking capacity (Icn) is 15 kA, lower than the smaller-current S301P-C variants' 25 kA, while the IEC 60947-2 Icu reaches 100 kA at 230/240 V AC.

Technical Specifications

SKU 2CDS381001R0504
Brand ABB
Series S300P
Catalog Designation S301P-C50
EAN 4016779080071
Number of Poles 1P
Rated Current (In) 50 A
Tripping Characteristic C
Input Voltage Type AC/DC
Rated Short-Circuit Capacity (Icn, IEC 60898-1, AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu, IEC 60947-2) 25 kA at 240 V AC, 72 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) 7.5 kA at 240 V AC, 72 V DC
Rated Operational Voltage 240 V AC (IEC 60898-1 and IEC 60947-2)
Rated Insulation Voltage (Ui) 500 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50/60 Hz / DC
Power Loss 3.7 W total
Overvoltage Category IV
Degree of Protection IP20 / IP40 with cover
Mounting TH35 DIN-Rail, any position, 90 mm grid distance
Net Weight 0.128 kg

Certifications & Standards

  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
  • CSA 22.2 No. 235

Selection Notes

The Icn drops from 25 kA to 15 kA once the S301P-C range reaches this current level, so fault-current studies at 50 A should use the 15 kA IEC 60898-1 figure rather than the higher IEC 60947-2 Icu rating. At 50 A this breaker suits a sub-distribution branch rather than a final small-load circuit. Where upstream short-circuit currents exceed 15 kA, back it up with a current-limiting device upstream rather than relying on this breaker alone.

Technical Details

Short Description
ABB S301P-C50 miniature circuit breaker, 1P, 50 A, C curve, AC/DC, 15 kA breaking capacity, DIN-rail mount.
Rated Current (Ampere)
50
Breaking Capacity (kA)
15 kA
Rated Voltage (VAC)
240 V AC
Mounting Type
DIN-Rail
Protection Type
IP40
Catalog No
S301P-C50
Number of Poles
1P
Standards
CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Delivery Date (Days)
30 days
Model Number
S301P-C50
Tariff Code
853620
