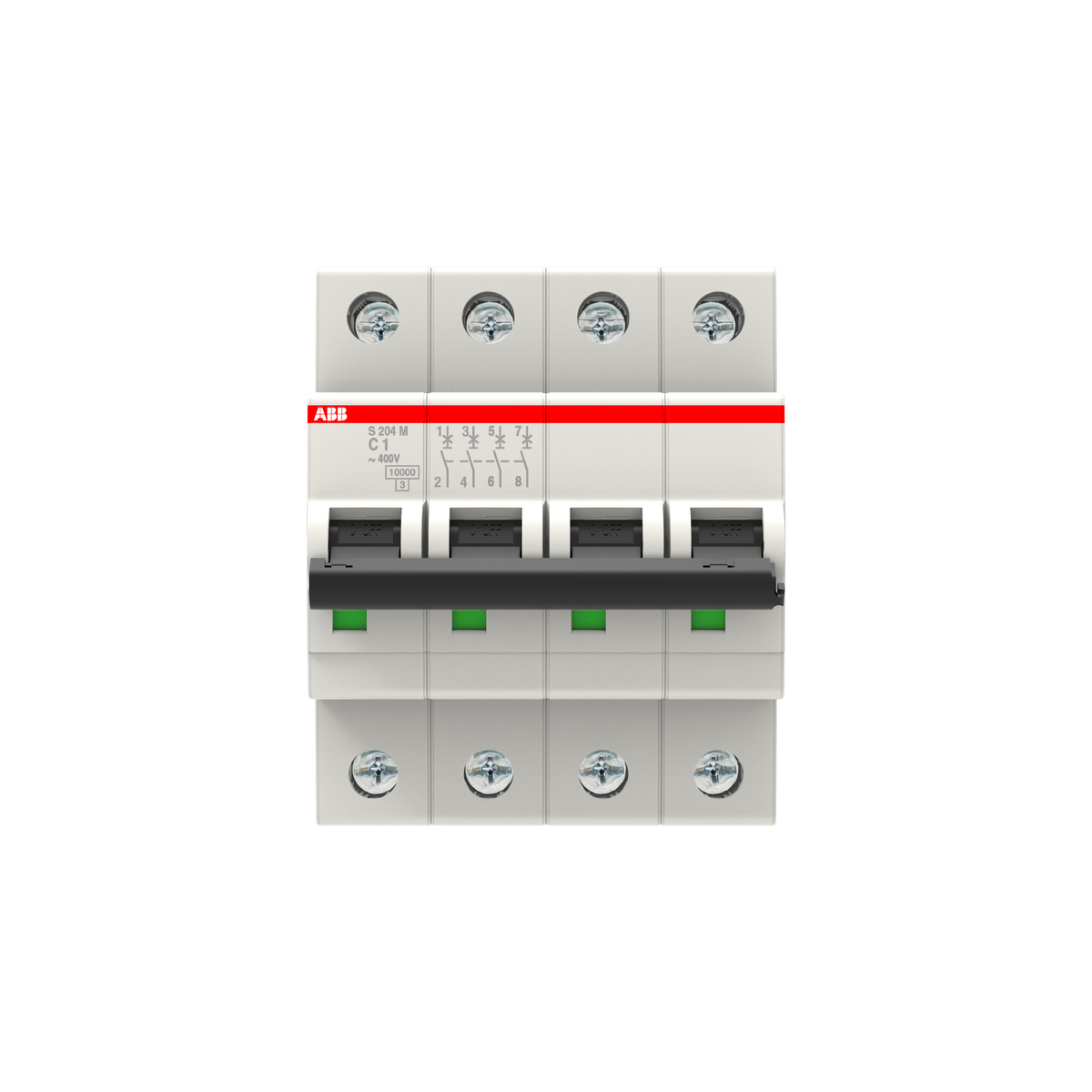

ABB 2CDS274001R0014 S204M-C1 4P 1A 10kA DIN Rail Miniature Circuit Breaker (MCB)

% $-62.69
ABB 2CDS274001R0014 S204M-C1 MCB 4P 1A - 10kA breaking capacity
ABB 2CDS274001R0014 S204M-C1 MCB 4P 1A - 10kA breaking capacity

ABB 2CDS274001R0014 S204M-C1 4P 1A 10kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CDS274001R0014
Catalog No: S204M-C1
Series: S200M
Tariff Code (HS): 853620
Rated Current: 1
Breaking Capacity: 10 kA
Breaking Type: Curve C
Rated Voltage: 400 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$62.69

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CDS274001R0014 is an S204M-C1 miniature circuit breaker from the System pro M compact S200M range, rated 1 A across 4 poles with a C tripping characteristic for simultaneous multi-pole disconnection. It is rated for AC or DC circuits up to 400 V AC / 440 V AC and delivers a 10 kA breaking capacity (AC) under IEC 60898-1, with UL 1077 and CSA 22.2 No. 235 approval for use on North American panels.

Technical Specifications

SKU 2CDS274001R0014
Brand ABB
Series S200M
Catalog Designation S204M-C1
EAN 4016779550673
Number of Poles 4P
Rated Current (In) 1 A
Tripping Characteristic C
Input Voltage Type AC/DC
Rated Short-Circuit Capacity (Icn, IEC 60898-1, AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 25 kA at 230 V AC / 15 kA at 400 V AC, 440 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) 7.5 kA at 230 V AC
Rated Operational Voltage 400 V AC (IEC 60898-1); 440 V AC (IEC 60947-2)
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV (6.2 kV at sea level)
Rated Frequency (f) 50/60 Hz
Power Loss 5.6 W total (1.4 W per pole)
Overvoltage Category III
Degree of Protection IP20 / IP40 with cover
Mounting TH35 DIN-Rail, any position
Net Weight 0.448 kg

Certifications & Standards

  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
  • CSA 22.2 No. 235

Selection Notes

The C curve trips instantaneously at 5-10x In; at 1 A this S204M-C1 variant protects a low-current 4-pole circuit such as a control transformer primary or an instrument feed rather than a power distribution branch. Four poles switch together, so a single fault isolates the complete circuit rather than one phase only. Within the S200M range the same frame extends well beyond 1 A; choose a higher-current variant for power circuits and keep this rating for low-current control loads.

Technical Details

Short Description
ABB S204M-C1 miniature circuit breaker, 4P, 1 A, C curve, AC/DC, 10 kA breaking capacity, DIN-rail mount.
Rated Current (Ampere)
1
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
400 V AC
Mounting Type
DIN-Rail
Protection Type
IP40
Catalog No
S204M-C1
Number of Poles
4P
Standards
IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Delivery Date (Days)
30 days
Model Number
S204M-C1
Tariff Code
853620
