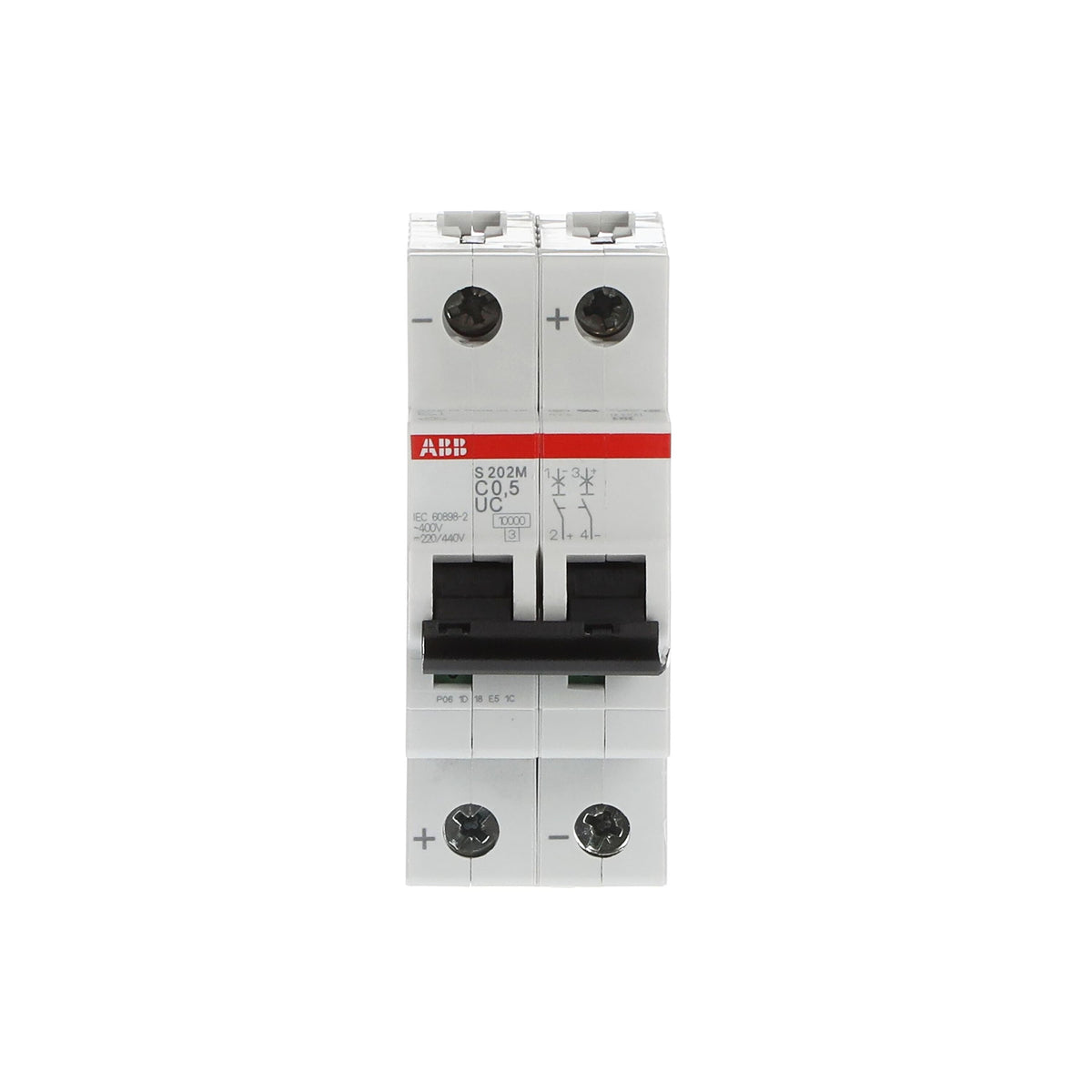

ABB 2CDS272061R0984 S202M-C0.5UC 2P 0.5A 10kA DIN Rail Miniature Circuit Breaker (MCB)

% $-83.26
ABB 2CDS272061R0984 S202M-C0.5UC MCB 2P 0.5A - 10kA breaking capacity
ABB 2CDS272061R0984 S202M-C0.5UC MCB 2P 0.5A - 10kA breaking capacity

ABB 2CDS272061R0984 S202M-C0.5UC 2P 0.5A 10kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CDS272061R0984
Catalog No: S202M-C0.5UC
Series: S200MUC
Tariff Code (HS): 853620
Rated Current: 0.5
Breaking Capacity: 10 kA
Breaking Type: Curve C
Rated Voltage: 400 V AC
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$83.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 2CDS272061R0984 is an S202M-C0.5UC miniature circuit breaker, 2-pole, from ABB's System pro M compact S200MUC range, rated 0.5 A with a C tripping characteristic for AC or DC circuits. Rated to 400 V AC / 440 V DC under IEC 60898-1, it carries a 10 kA breaking capacity (AC) and switches both poles together for double-pole protection or L+N disconnection.

Technical Specifications

SKU 2CDS272061R0984
Brand ABB
Series S200MUC
Catalog Designation S202M-C0.5UC
EAN 4013614432910
Number of Poles 2P
Rated Current (In) 0.5 A
Tripping Characteristic C
Input Voltage Type AC/DC
Rated Short-Circuit Capacity (Icn, IEC 60898-1, AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 25 kA at 220 V DC / 15 kA at 230 V AC, 400 V AC / 10 kA at 440 V AC, 440 V DC
Rated Service Short-Circuit Breaking Capacity (Ics) 20 kA at 220 V DC
Rated Operational Voltage 400 V AC / 440 V DC (IEC 60898-1); 440 V AC / 440 V DC (IEC 60947-2)
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV (6.2 kV at sea level)
Rated Frequency (f) 50/60 Hz / DC
Power Loss 2.58 W total (1.29 W per pole)
Overvoltage Category III
Degree of Protection IP20 / IP40 with cover
Mounting TH35 DIN-Rail, any position
Net Weight 0.234 kg

Certifications & Standards

  • IEC/EN 60898-2
  • IEC/EN 60947-2

Selection Notes

Switching both poles together makes this 2-pole device suitable for L+N disconnection on AC circuits or plus/minus disconnection on a DC bus, rather than protecting two independent single-phase circuits. The C curve trips instantaneously at 5-10x In, adequate margin even at this low 0.5 A rating. Within the S202M-C 2-pole frame, current ratings run from 0.5 A to 13 A in this batch; match the rating to the actual branch current rather than this smallest value.

Technical Details

Short Description
ABB S202M-C0.5UC miniature circuit breaker, 2P, 0.5 A, C curve, AC/DC, 10 kA breaking capacity, DIN-rail mount.
Rated Current (Ampere)
0.5
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
400 V AC
Mounting Type
DIN-Rail
Protection Type
IP40
Catalog No
S202M-C0.5UC
Number of Poles
2P
Standards
IEC/EN 60898-2, IEC/EN 60947-2
Delivery Date (Days)
30 days
Model Number
S202M-C0.5UC
Tariff Code
853620
