Part number
2CDS272061R0014
Model no
S202M-C1UC
$133.75 On request Dispatch — · From TürkiyeGet a Quote

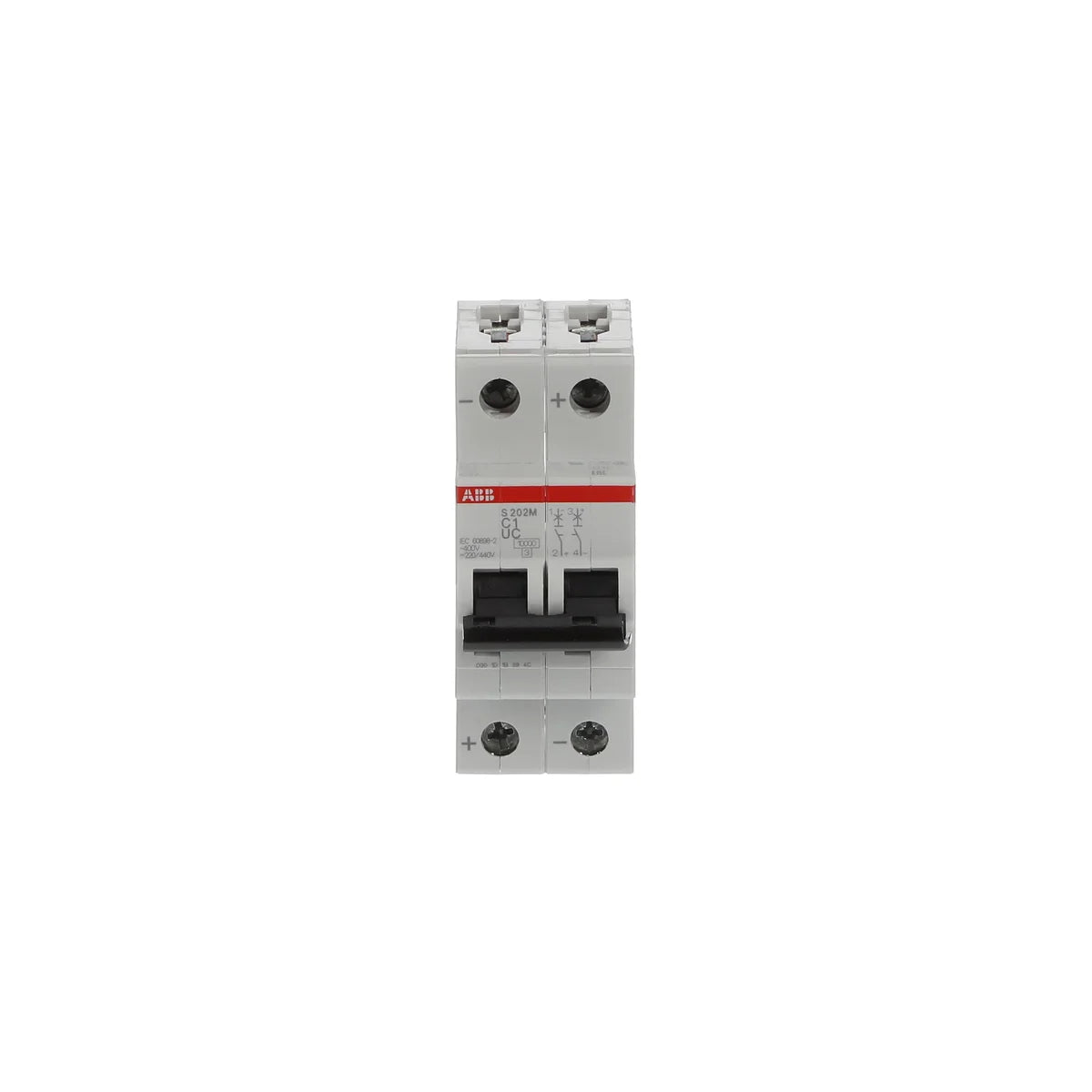

ABB 2CDS272061R0014 S202M-C1UC 2P 1A 10kA C-Curve Miniature Circuit Breaker

Rated current
1 A
Poles
2P
Breaking capacity
(220) 25 kA
EAN
4013614432927
Description

About the S202M-C1UC

The ABB S202M-C1UC (SKU: 2CDS272061R0014) is a 2-pole, 1A, C-curve miniature circuit breaker from the S200M UC series, delivering a breaking capacity of 10 kA at 400V AC for reliable overload and short-circuit protection in industrial and commercial control panels. Designed to meet IEC/EN 60898-2 and IEC/EN 60947-2 standards, this MCB is engineered for demanding applications where high-performance circuit protection is essential.

Certifications & Standards

  • IEC 60898-2: International standard for circuit breakers for overcurrent protection in household and similar installations — AC/DC
  • EN 60898-2: European harmonised standard equivalent to IEC 60898-2
  • IEC/EN 60898-2: Combined IEC and EN compliance for AC/DC miniature circuit breakers
  • IEC/EN 60947-2: Industrial standard for low-voltage switchgear and controlgear — circuit breakers
  • IEC 60898-1400: Extended IEC 60898-1 compliance variant
  • IEC 60898-1440: Extended IEC 60898-1 compliance variant
  • IEC 60898-2400: Extended IEC 60898-2 compliance variant
  • IEC 60898-2440: Extended IEC 60898-2 compliance variant
  • IEC 60947-2440: Extended IEC 60947-2 industrial compliance variant
  • IEC 60068-2: Environmental testing standard for electrical and electronic equipment
  • EN 45555: General methods for the assessment of the lifetime of energy-related products
  • EN 60664: Insulation coordination for equipment within low-voltage supply systems
  • EN 60898-2: European standard for circuit breakers for AC and DC household and similar installations
  • EN 60947-2: European standard for low-voltage industrial circuit breakers
  • CSA: Canadian Standards Association certification for North American market compliance
  • RoHS: EU Restriction of Hazardous Substances Directive — compliant, lead-free construction
  • REACH: EU regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals
  • WEEE: EU Waste Electrical and Electronic Equipment Directive — compliant disposal and recycling
Specification

Full specification

81 values · Last verified 30 Oct 2026

Technical 22

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V DC) 25 kA, (230 V AC) 15 kA, (400 V AC) 15 kA, (440 V AC) 10 kA, (440 V DC) 10 kA, (230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V DC) 20 kA
Power Supply Connection Please Note Polarity of Device
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 20000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 2
Number of Poles 2P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Options Provided Universal current
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Remarks Please note polarity of device
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60898-1 440 V DC, acc. to IEC 60898-2 400 V AC, acc. to IEC 60898-2 440 V DC, acc. to IEC 60947-2 440 V AC, acc. to IEC 60947-2 440 V DC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Maximum (Incl. Tolerance) 500 V DC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 1 A
Rated Short-Circuit Capacity (AC) 10 kA, (230 V AC) 10 kA, (253 V AC) 10 kA, (400 V AC) 10 kA, (440 V DC) 10 kA, (230 V) 10 kA, (400 V) 10 kA
Rated Frequency (f) 50 / 60 Hz, DC
Power Loss 2.88 W, at Rated Operating Conditions per Pole 1.44 W
Overvoltage Category III

Design 1

Housing Material Insulation Group I, RAL 7035
Show all 81 specifications ↓ Show less ↑47 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS272061R0014
Type designation S202M-C1UC
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614432927
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 5 piece
Package Level 1 Gross Weight 1.21 kg

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 480Y/277 V AC, 500 V DC
Interrupting Rating acc. to UL1077 (220 V AC) 10 kA, (277 V AC) 6 kA, (440 V DC) 10 kA, (480Y / 277 V AC) 10 kA, (500 V DC) 10 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG, Conductor 14-4 AWG
Tightening Torque UL/CSA 25 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 2
Product Net Width 35 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.234 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-2, IEC/EN 60947-2
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 1.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS272061R0014

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CSA
  • RoHS
  • IEC/EN 60898-2
  • IEC/EN 60947-2
Quick answers

Questions about the S202M-C1UC

What is the rated current of S202M-C1UC?

The rated current of S202M-C1UC is 1 A.

What is the HS code of S202M-C1UC for customs?

The tariff (HS) code on file for S202M-C1UC is 853620.

What is the EAN of S202M-C1UC?

The EAN (GTIN) of S202M-C1UC is 4013614432927.

Where does S202M-C1UC ship from, and how fast?

S202M-C1UC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
