Part number
2CDS272011R0324
Model no
SH202M-C32
$35.70 In stock · 18 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

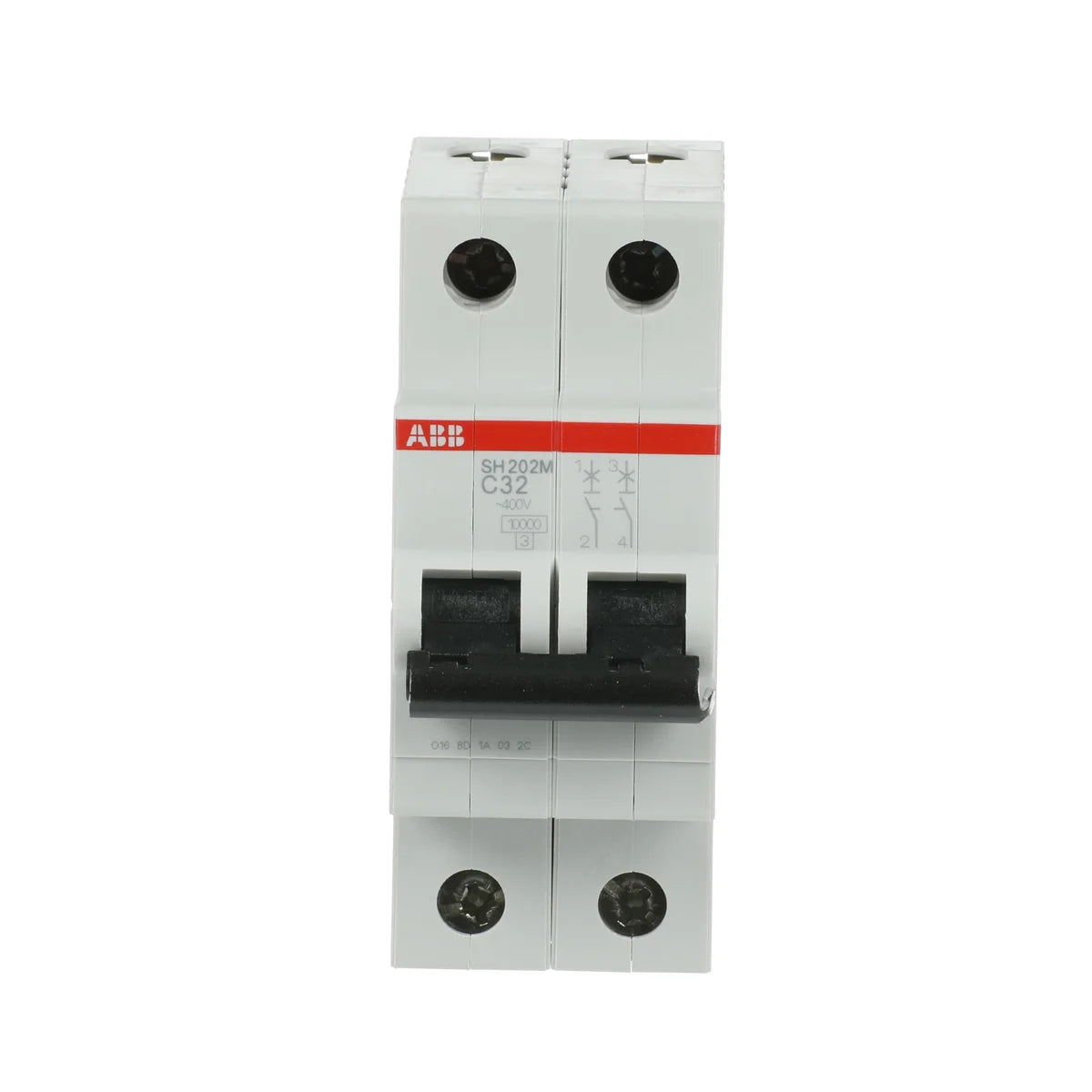

ABB 2CDS272011R0324 SH202M-C32 2P 32A 10kA Miniature Circuit Breaker

Rated current
32 A
Poles
2P
EAN
4016779700733
Other ratings in ABB SH200 All 8 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
20 2CDS272011R0204 In stock $28.57
25 2CDS272011R0254 Low stock $28.57
32 2CDS272011R0324This part In stock $35.70
40 2CDS272011R0404 Low stock $37.12
50 2CDS272011R0504 Low stock $42.83
Description

About the SH202M-C32

The ABB SH202M-C32 (SKU: 2CDS272011R0324) is a 2-pole miniature circuit breaker (MCB) from the SH200M series, rated at 32A with a 10kA breaking capacity. Designed for reliable overcurrent and short-circuit protection in residential, commercial, and industrial distribution boards, this compact MCB measures 35mm × 88mm × 69mm and weighs just 0.22 kg.

Certifications & Standards

  • IEC 60898-1: International standard for household and similar circuit breakers for overcurrent protection
  • EN 60898-1: European harmonised standard for circuit breakers for overcurrent protection in household installations
  • IEC/EN 60898-1: Combined IEC and EN compliance confirming dual-market suitability
  • IEC 60898: Broader IEC standard covering circuit breaker performance requirements
  • IEC 60068-2: Environmental testing standard for robustness and reliability
  • EN 60664: Insulation coordination standard for low-voltage equipment
  • EN 45555: General methods for the assessment of the lifetime of energy-related products
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical safety
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU

Applications & Use Cases

  • Overcurrent and short-circuit protection in residential distribution boards
  • Commercial building electrical panel protection
  • Industrial control panel sub-circuit protection
  • Final circuit protection in low-voltage installations
  • DIN rail mounting in compact enclosures
Specification

Full specification

72 values · Last verified 30 Oct 2026

Technical 18

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Power Supply Connection Arbitrary
Contact Position Indication ON / OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 2
Number of Poles 2P
Tightening Torque 2 N·m
Screw Terminal Type Cage Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Conductor 25 / 25 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC
Rated Current (In) 32 A
Rated Short-Circuit Capacity (AC) 10 kA, (400 V AC) 10 kA, (400 V) 10 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss 7.4 W, at Rated Operating Conditions per Pole 3.7 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 72 specifications ↓ Show less ↑42 more values in Identification, Material Compliance, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS272011R0324
Type designation SH202M-C32
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779700733
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 5 piece
Package Level 1 Gross Weight 1.14 kg

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, Enclosure with Cover IP40
Pollution Degree 2
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 2
Product Net Width 35 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.22 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 5

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1
Certification Agency EN, IEC

Logistics 4

Shipping weight 0.22 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS272011R0324

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 8 ratings in ABB SH200

ABB ABB SH200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS272011R0064 SH202M-C6 In stock $34.27
16 A 2CDS272011R0164 SH202M-C16 Low stock $28.57
20 A 2CDS272011R0204 SH202M-C20 In stock $28.57
25 A 2CDS272011R0254 SH202M-C25 Low stock $28.57
32 A 2CDS272011R0324 This part SH202M-C32 In stock $35.70
40 A 2CDS272011R0404 SH202M-C40 Low stock $37.12
50 A 2CDS272011R0504 SH202M-C50 Low stock $42.83
63 A 2CDS272011R0634 SH202M-C63 Low stock $48.51
Certifications

Certifications and standards

  • RoHS
  • IEC/EN 60898-1
Quick answers

Questions about the SH202M-C32

What is the rated current of SH202M-C32?

The rated current of SH202M-C32 is 32 A.

What is the HS code of SH202M-C32 for customs?

The tariff (HS) code on file for SH202M-C32 is 853620.

What is the EAN of SH202M-C32?

The EAN (GTIN) of SH202M-C32 is 4016779700733.

Where does SH202M-C32 ship from, and how fast?

SH202M-C32 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
