ABB 2CDS272011R0104 SH202M-C10 2P 10A C-Curve 10kA Miniature Circuit Breaker (MCB)

% $-20.27

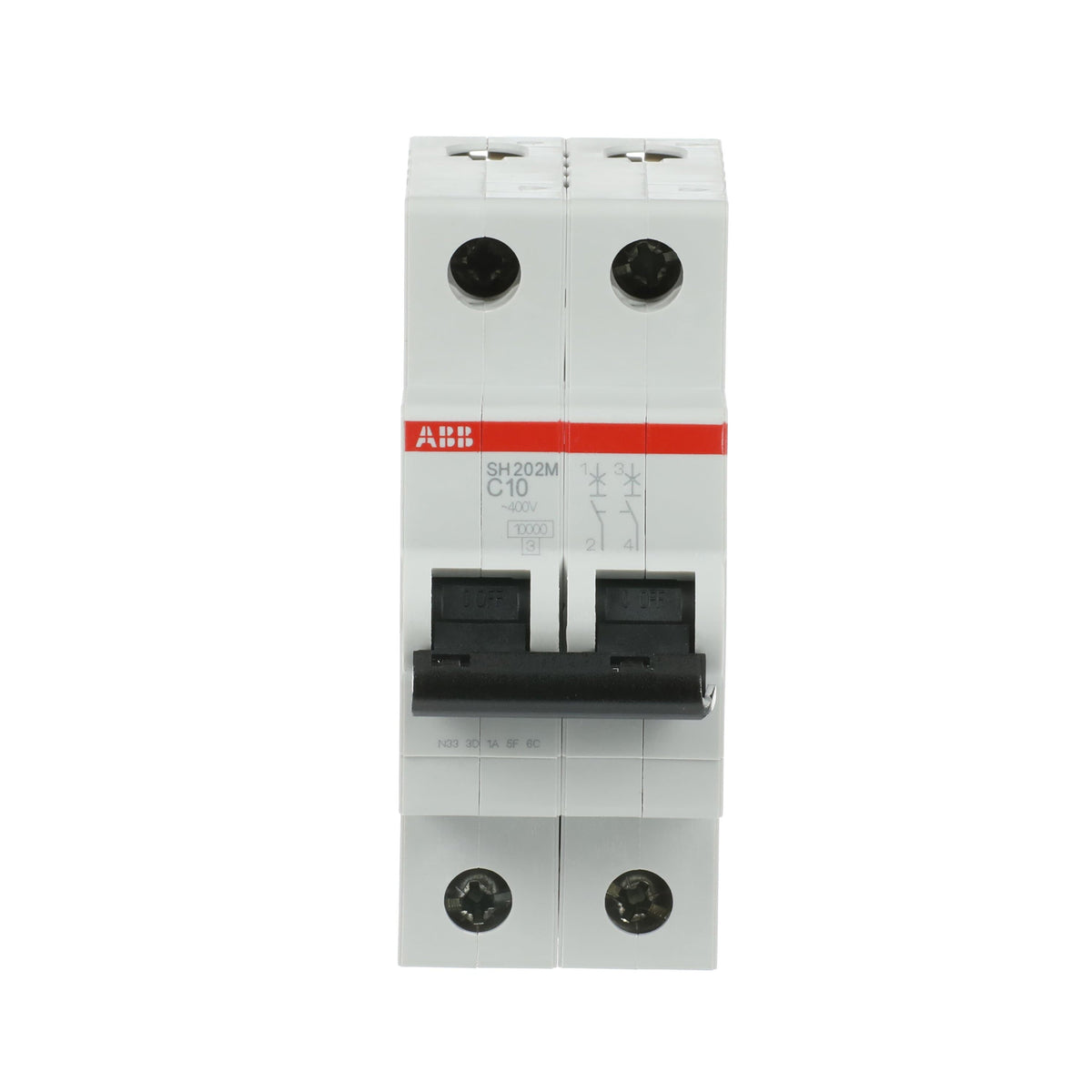

ABB SH202M-C10 2CDS272011R0104 2P 10A type C miniature circuit breaker - 10kA 400V
ABB SH202M-C10 2CDS272011R0104 2P 10A type C miniature circuit breaker - 10kA 400V

ABB 2CDS272011R0104 SH202M-C10 2P 10A C-Curve 10kA Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CDS272011R0104
Catalog No: SH202M-C10
Series: SH200M
Tariff Code (HS): 853620
Rated Current: 10
Breaking Capacity: 10 kA
Breaking Type: Type C
Rated Voltage: 400 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$20.27

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB SH202M-C10 (SKU 2CDS272011R0104) is a 2-pole, 10 A miniature circuit breaker from the SH200M series, rated 10 kA breaking capacity at 400 V AC. Its type C tripping characteristic trips instantaneously between 5 and 10 times In, suiting loads with moderate inrush current, and it mounts on standard DIN rail with cage terminals rated 25 mm² for quick wiring.

Technical Specifications

SKU 2CDS272011R0104
Brand ABB
Series SH200M
Catalog Designation SH202M-C10
EAN 4016779700689
Number of Poles 2P
Tripping Characteristic Type C
Rated Current (In) 10 A
Rated Operational Voltage 400 V (IEC 60898-1)
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Short-Circuit Capacity 10 kA at 400 V AC
Energy Limiting Class 3
Overvoltage Category III
Degree of Protection IP20 (IP40 with cover)
Pollution Degree 2
Connecting Capacity Flexible 0.75-16 mm² / Rigid 0.75-25 mm²
Width 35 mm (2 modules)
Net Weight 0.204 kg
Mounting Type DIN-Rail (TH35-15 / TH35-7.5)

Certifications & Standards

  • IEC/EN 60898-1

Selection Notes

Type C trips instantaneously at 5-10× In, wider than a B-curve's 3-5× In, so it tolerates the inrush of small transformers, fluorescent ballasts or short motor starts without nuisance tripping. At In 10 A and 2P, the SH202M-C10 protects lighter two-pole circuits; the higher-current members of the SH200M series cover heavier loads needing the same instantaneous-trip margin. Its 10 kA breaking capacity at 400 V AC matches typical European distribution fault levels, so no upstream current-limiting device is required at this current rating in most installations.

Technical Details

Short Description
ABB SH202M-C10 2P type C miniature circuit breaker, In 10 A, 10 kA breaking capacity at 400 V AC, DIN-rail mounted.
Rated Current (Ampere)
10
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
400 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SH202M-C10
Number of Poles
2P
Standards
IEC/EN 60898-1
Delivery Date (Days)
30 days
Model Number
SH202M-C10
Tariff Code
853620
