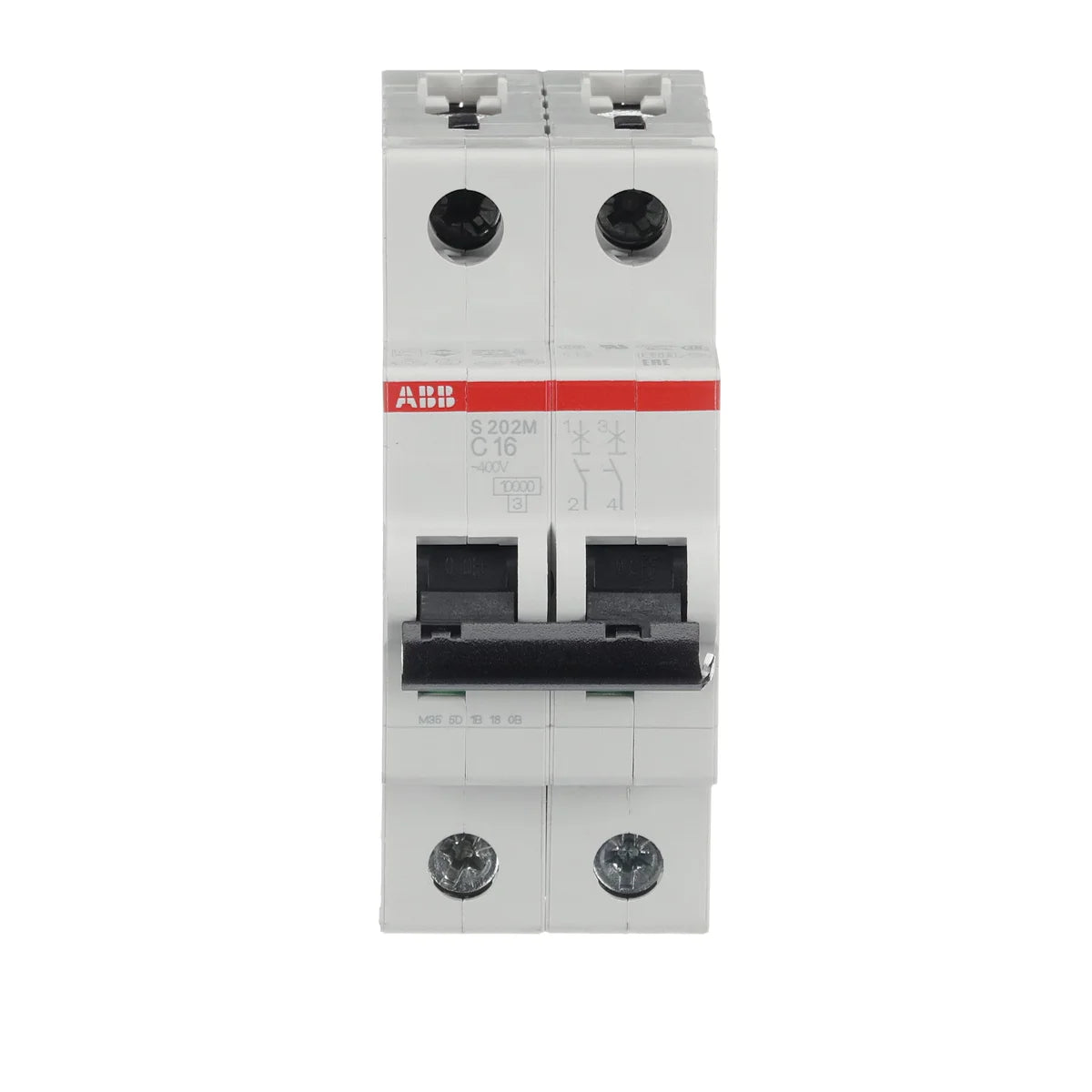

ABB 2CDS272001R0164 S202M-C16 2P 16A 10kA C-Curve 230/400V AC Miniature Circuit Breaker

The ABB S202M-C16 miniature circuit breaker (MCB), reference 2CDS272001R0164, is a 2-pole 16A device from the S200M series delivering 10 kA breaking capacity at 230/400V AC. Designed for residential and commercial distribution boards, the S202M-C16 provides reliable overcurrent and short-circuit protection in space-constrained control panels, with a compact 35mm × 88mm × 69mm footprint and a C-curve tripping characteristic suited to standard inductive and resistive loads.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International and European standard for circuit breakers for overcurrent protection in household and similar installations
• IEC/EN 60947-2: International and European standard for low-voltage switchgear — circuit breakers
• IEC 60898-1: IEC standard for circuit breakers for overcurrent protection
• EN 60898-1: European harmonised standard for circuit breakers in household installations
• IEC/EN 60898: Combined IEC/EN standard for circuit breakers
• IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
• IEC 60898-1400: IEC standard variant for circuit breaker performance
• IEC 60947-2440: IEC standard variant for low-voltage circuit breakers
• IEC 60068-2: Environmental testing standard for electrotechnical products
• EN 60898: European standard for circuit breakers for overcurrent protection
• EN 60947-2: European standard for low-voltage switchgear — circuit breakers
• EN 45555: General methods for the assessment of the ability to recover resources from electrical and electronic equipment
• EN 60664: Insulation coordination for equipment in low-voltage systems
• EN 60947: European standard for low-voltage switchgear and controlgear
• UL 1077: UL standard for supplementary protectors for use in electrical equipment
• CSA: Canadian Standards Association certified
• CE: Compliant with applicable European Union directives
• UKCA: UK Conformity Assessed marking for Great Britain market
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU chemicals regulation (EC) No 1907/2006
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

• Overcurrent and short-circuit protection in residential and commercial distribution boards
• Protection of lighting circuits, socket-outlet circuits, and general wiring installations
• Industrial control panels requiring compact 2-pole MCB protection at 400V AC
• Building automation and HVAC systems requiring reliable branch-circuit protection
• DIN rail mounting in switchgear enclosures and metering cabinets
