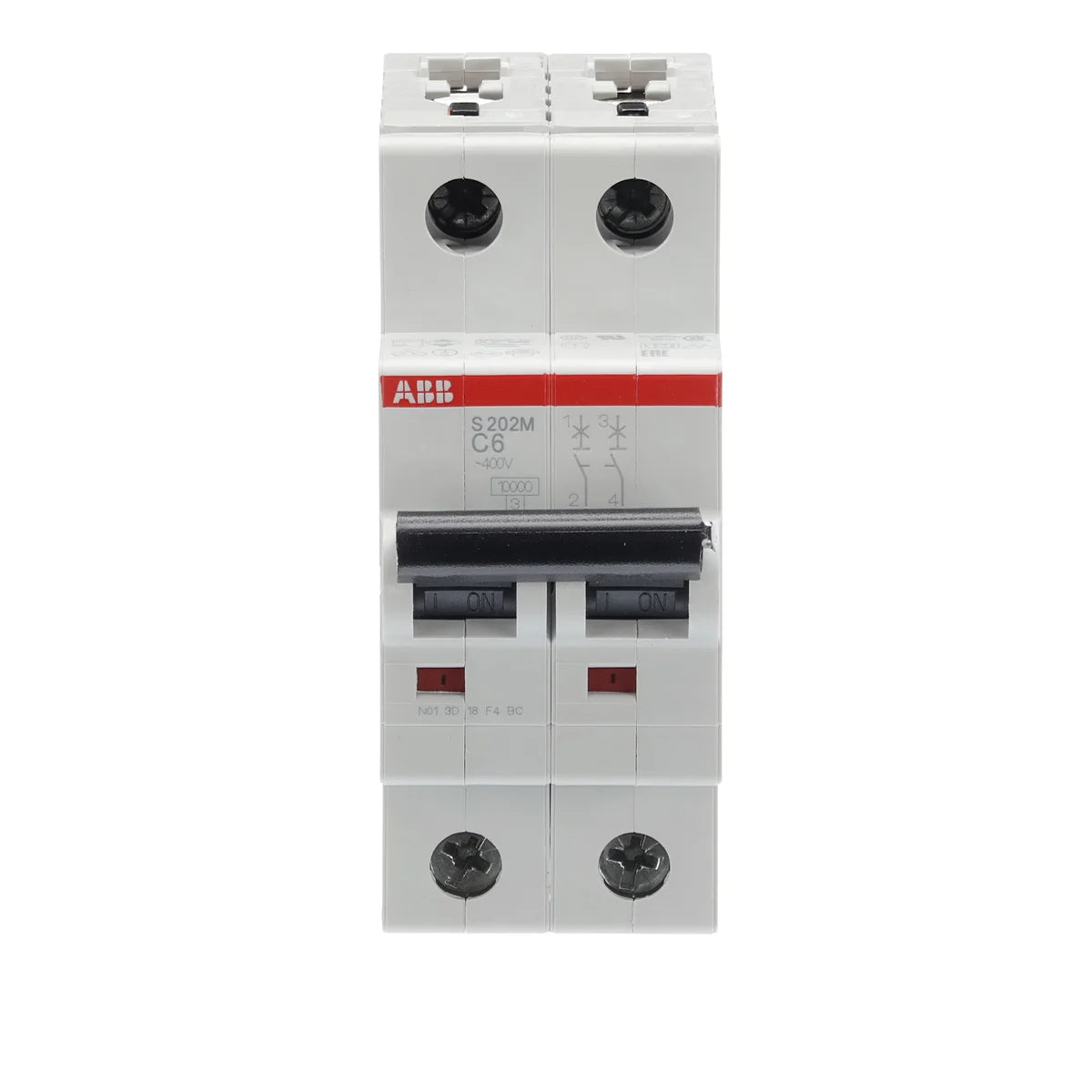

ABB 2CDS272001R0064 S202M-C6 2P 6A 10kA Curve-C Miniature Circuit Breaker (MCB)

The ABB S202M-C6 (SKU: 2CDS272001R0064) is a 2-pole 6A C-curve miniature circuit breaker (MCB) from the high-performance S200M series, engineered for demanding industrial and commercial electrical installations. Delivering a breaking capacity of 10kA at 230V AC under IEC/EN 60898-1, the S202M-C6 provides robust overcurrent and short-circuit protection for control panels, distribution boards, and building services applications. With compact DIN-rail dimensions of 35mm × 88mm × 69mm and a weight of just 0.224kg, this MCB is optimised for space-efficient panel design.

Technical Specifications

Certifications & Standards

• IEC 60898-1: International standard for household and similar installations MCBs
• EN 60898-1: European harmonised standard for MCBs in residential and commercial use
• IEC/EN 60898: Combined IEC and EN compliance for circuit-breaker performance
• IEC/EN 60947-2: Standard for low-voltage switchgear and controlgear — circuit breakers
• IEC/EN60898: Verified compliance with the international/European MCB performance standard
• IEC 60898-1400: Extended IEC 60898-1 test compliance variant
• IEC 60947-2440: Extended IEC 60947-2 test compliance variant
• IEC 60068-2: Environmental testing standard for mechanical and climatic robustness
• EN 60898: European standard for overcurrent protection devices
• EN 60947-2: European low-voltage switchgear standard for circuit breakers
• EN45555: General methods for the assessment of the lifetime of energy-related products
• EN60664: Insulation coordination for equipment within low-voltage systems
• EN60898: EN circuit breaker performance standard
• EN60947: EN low-voltage switchgear and controlgear general standard
• CSA: Canadian Standards Association certification for North American market compliance
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: EU chemicals regulation compliance (SVHC substances)
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• CE: European Conformity marking — meets all applicable EU safety and performance directives
• UKCA: UK Conformity Assessed marking for Great Britain market access post-Brexit

Applications & Use Cases

• Overcurrent and short-circuit protection in industrial control panels and distribution boards
• Protection of motor branch circuits with inrush tolerance (C-curve) in automation systems
• Commercial building services: HVAC controls, lighting circuits, and power distribution
• Machine building and OEM panel construction requiring high breaking capacity in compact format
• Feeder protection in sub-distribution boards within manufacturing facilities

Frequently Asked Questions

What does the C-curve designation mean on the S202M-C6?
The C-curve (trip curve C) means the MCB trips instantaneously at 5–10× the rated current (30–60A for a 6A device). This makes the ABB S202M-C6 ideal for loads with moderate inrush currents such as small motors, transformers, and fluorescent lighting circuits.

What is the breaking capacity of the ABB S202M-C6?
The S202M-C6 has a rated breaking capacity (Icu) of 10kA at 230V AC per IEC/EN 60898-1, making it suitable for installations with high prospective short-circuit currents.

Is the S202M-C6 DIN rail mountable?
Yes. The ABB S202M-C6 mounts on standard 35mm DIN rail and occupies a width of 35mm, equivalent to 2 module widths in a standard distribution enclosure.
