ABB 2CDS271061R0084 S201M-C8UC 1P 8A 10kA DIN Rail Miniature Circuit Breaker (MCB)

% $-34.02

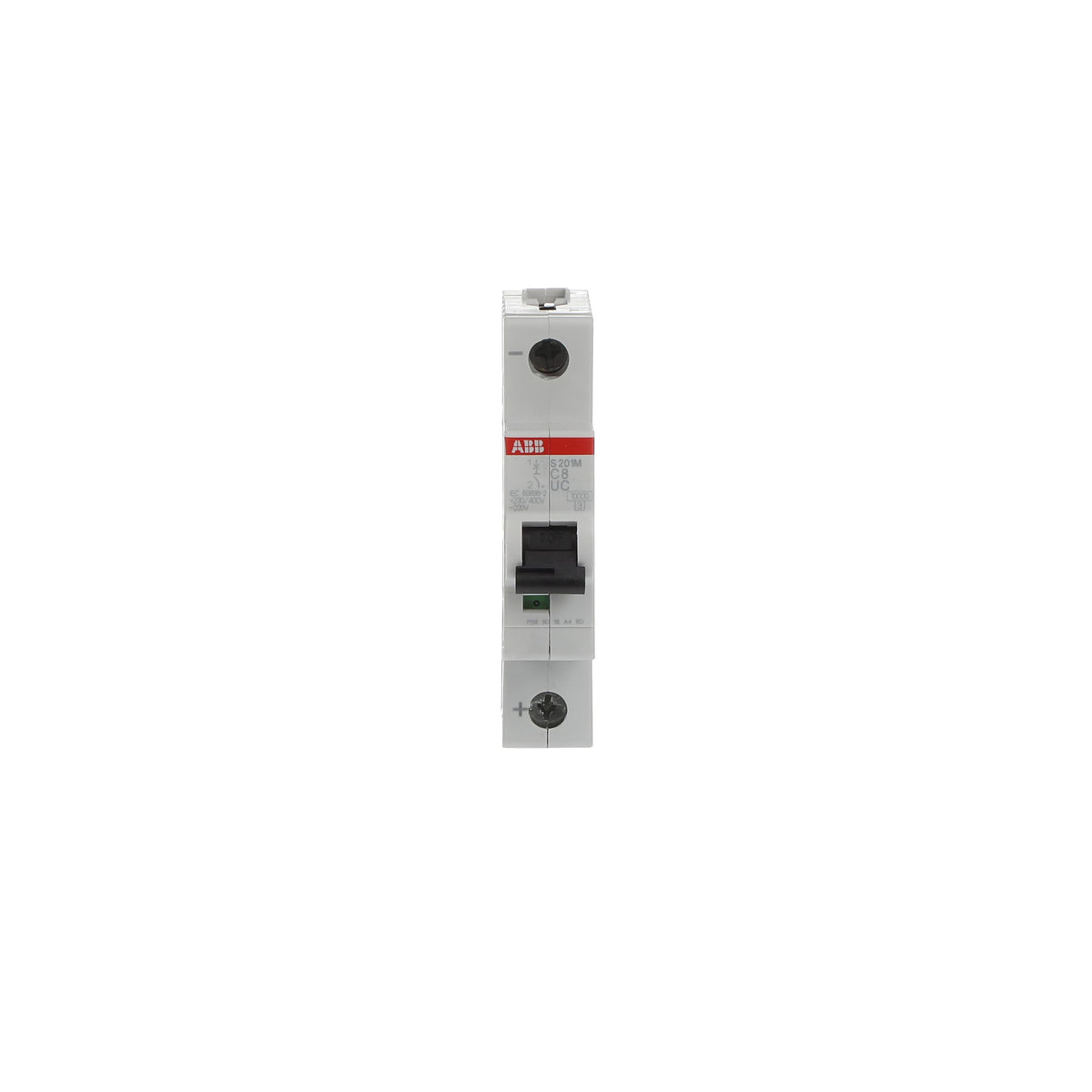

ABB 2CDS271061R0084 S201M-C8UC MCB 1P 8A - 10kA breaking capacity
ABB 2CDS271061R0084 S201M-C8UC MCB 1P 8A - 10kA breaking capacity

ABB 2CDS271061R0084 S201M-C8UC 1P 8A 10kA DIN Rail Miniature Circuit Breaker (MCB)

Brand: ABB
Reference No: 2CDS271061R0084
Catalog No: S201M-C8UC
Series: S200MUC
Tariff Code (HS): 853620
Rated Current: 8
Breaking Capacity: 10 kA
Breaking Type: Curve C
Rated Voltage: 230 V AC
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$34.02

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's S201M-C8UC, order code 2CDS271061R0084, is an 8 A, 1-pole miniature circuit breaker in the System pro M compact S200MUC range, with a C tripping characteristic for AC or DC service. It delivers a 10 kA breaking capacity (AC) under IEC 60898-2 at up to 230 V AC or 220 V DC, and mounts on standard TH35 DIN rail.

Technical Specifications

SKU 2CDS271061R0084
Brand ABB
Series S200MUC
Catalog Designation S201M-C8UC
EAN 4013614430763
Number of Poles 1P
Rated Current (In) 8 A
Tripping Characteristic C
Input Voltage Type AC/DC
Rated Short-Circuit Capacity (Icn, IEC 60898-2, AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 20 kA at 110 V DC / 10 kA at 220 V DC, 230 V AC, 253 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) 10 kA at 110 V DC
Rated Operational Voltage 230 V AC / 220 V DC (IEC 60898-2); 253 V AC / 220 V DC (IEC 60947-2)
Rated Insulation Voltage (Ui) 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV (6.2 kV at sea level)
Rated Frequency (f) 50/60 Hz / DC
Power Loss 1.54 W total
Overvoltage Category III
Degree of Protection IP20 / IP40 with cover
Mounting TH35 DIN-Rail, any position
Net Weight 0.117 kg

Certifications & Standards

  • IEC/EN 60898-2
  • IEC/EN 60947-2

Selection Notes

At 8 A, this C-curve breaker trips instantaneously at 5-10x In, enough margin for small transformer or lighting-ballast inrush without nuisance tripping. The AC/DC rating lets 2CDS271061R0084 protect a 220 V DC control circuit as well as a 230 V AC branch, provided the DC terminals are wired with correct polarity. For higher branch currents, the same S201M-C frame runs up to 63 A; size the breaker to the load rather than defaulting to this rating.

Technical Details

Short Description
ABB S201M-C8UC miniature circuit breaker, 1P, 8 A, C curve, AC/DC, 10 kA breaking capacity, DIN-rail mount.
Rated Current (Ampere)
8
Breaking Capacity (kA)
10 kA
Rated Voltage (VAC)
230 V AC
Mounting Type
DIN-Rail
Protection Type
IP40
Catalog No
S201M-C8UC
Number of Poles
1P
Standards
IEC/EN 60898-2, IEC/EN 60947-2
Delivery Date (Days)
30 days
Model Number
S201M-C8UC
Tariff Code
853620
