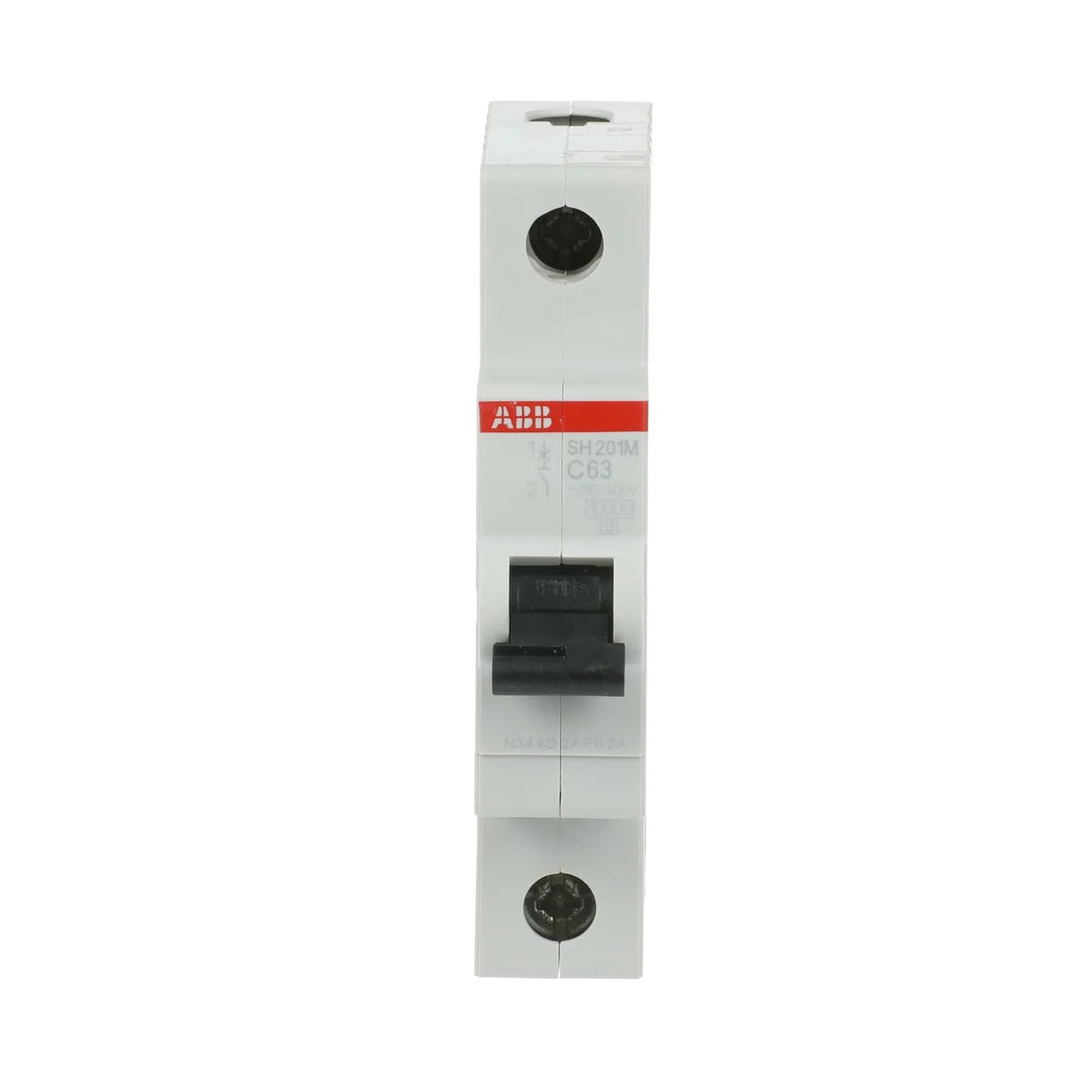

ABB 2CDS271011R0634 SH201M-C63 1P 63A 10kA Miniature Circuit Breaker

The ABB SH201M-C63 miniature circuit breaker (SKU: 2CDS271011R0634) is a 1-pole, 63 A MCB from the SH200M series, delivering a 10 kA breaking capacity to IEC 60898-1 standards. Designed for reliable overcurrent and short-circuit protection in residential, commercial, and light industrial control panels, the SH201M-C63 combines compact 17.5 mm module width with robust performance and full RoHS/REACH compliance.

Technical Specifications

Certifications & Standards

• IEC 60898-1: International standard for household and similar installations — miniature circuit breakers for overcurrent protection
• EN 60898-1: European harmonised standard equivalent to IEC 60898-1 for MCB performance and safety
• IEC/EN 60898-1: Combined IEC and EN designation confirming dual international and European compliance
• IEC 60898: Base IEC standard series covering circuit breakers for overcurrent protection
• IEC 60068-2: Environmental testing standard covering climatic and mechanical durability
• EN 60664: Insulation coordination standard for equipment within low-voltage systems
• EN 45555: General methods for the assessment of the ability of energy-related products to be repaired, reused, or recycled
• RoHS: EU Restriction of Hazardous Substances Directive — free from restricted hazardous materials
• REACH: EU REACH regulation compliance — substances of very high concern (SVHC) verified
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

• Overcurrent and short-circuit protection in residential distribution boards
• Commercial building electrical panel protection
• Light industrial control panel circuit protection
• Final circuit protection in consumer units and switchboards
• DIN rail mounted installations requiring compact 17.5 mm module footprint
