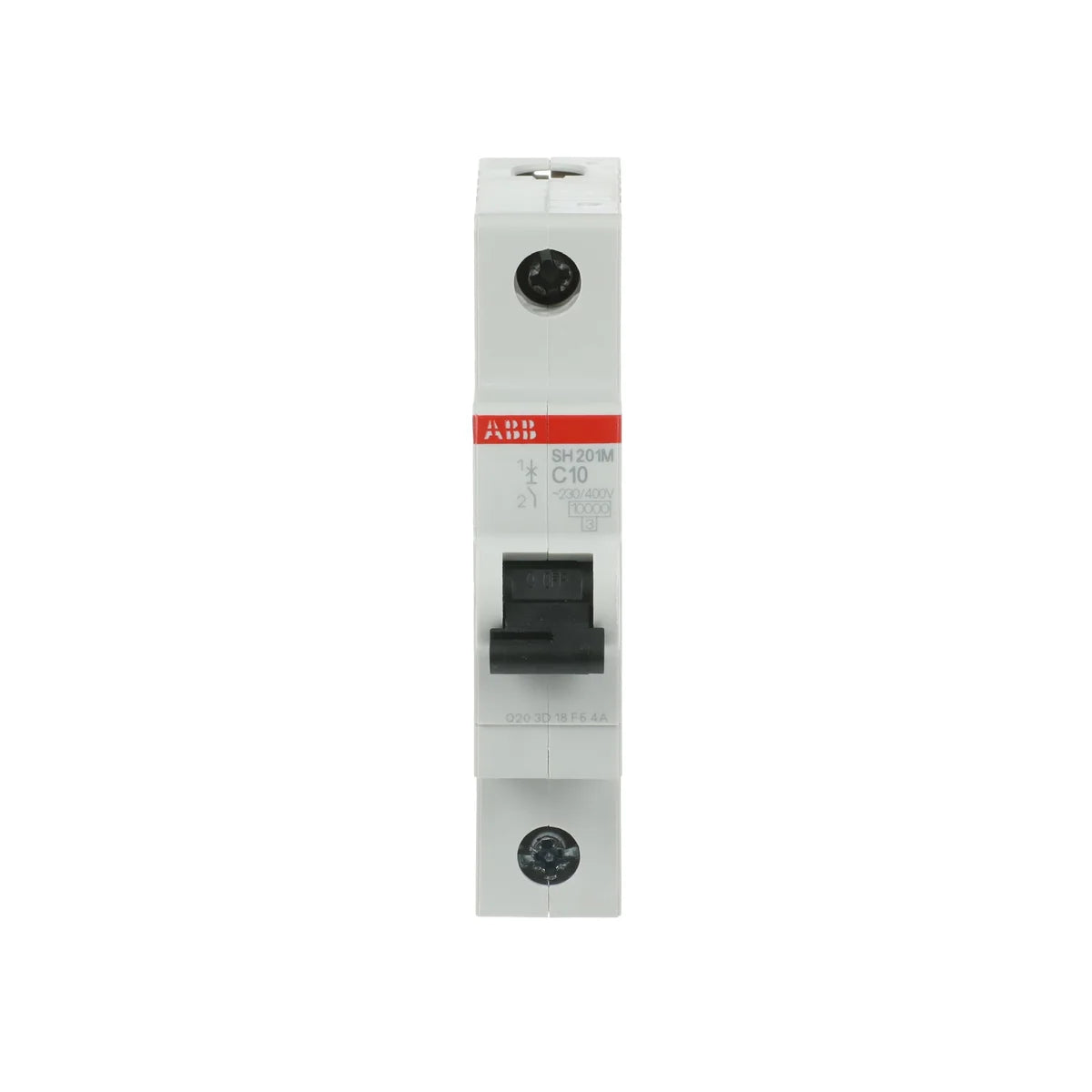

ABB 2CDS271011R0104 SH201M-C10 1P 10A 10kA Miniature Circuit Breaker
Other ratings in ABB SH200
All 9 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 6 | 2CDS271011R0064 | In stock | $9.40 | |
| 10 | 2CDS271011R0104This part | In stock | $7.84 | |
| 16 | 2CDS271011R0164 | On request | $7.84 | |
| 20 | 2CDS271011R0204 | In stock | $8.15 | |
| 25 | 2CDS271011R0254 | In stock | $8.15 |
Description
About the SH201M-C10
About the SH201M-C10
The ABB SH201M-C10 miniature circuit breaker (SKU: 2CDS271011R0104) is a 1-pole, 10 A, 10 kA breaking capacity MCB from the SH200M series, designed for reliable overcurrent and short-circuit protection in residential, commercial, and light industrial installations. Compact at 17.5 mm wide, the SH201M-C10 fits easily into standard DIN rail distribution boards and delivers consistent performance to IEC 60898-1 and EN 60898-1 standards.
Certifications & Standards
- IEC 60898-1: International standard for circuit breakers for overcurrent protection in household and similar installations
- EN 60898-1: European harmonised standard equivalent to IEC 60898-1
- IEC/EN 60898-1: Combined IEC and EN compliance designation for MCB performance and safety
- IEC 60898: Base IEC standard series governing miniature circuit breaker requirements
- IEC 60068-2: Environmental testing standard covering robustness under temperature, humidity, and mechanical stress
- EN 45555: European standard for general methods for the assessment of the lifetime of energy-related products
- EN 60664: Insulation coordination for equipment within low-voltage systems
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive — free from restricted substances
- REACH: Compliant with EU REACH regulation on chemical substance registration and authorisation
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for end-of-life recycling
Applications & Use Cases
- Final circuit protection in residential distribution boards and consumer units
- Commercial building sub-distribution panels requiring compact 17.5 mm single-pole breakers
- Light industrial control panels where IEC 60898-1 certified MCBs are specified
- Retrofit and upgrade of existing SH200M series installations requiring a C10 tripping characteristic
- Protection of lighting circuits, socket outlet circuits, and small motor loads up to 10 A
Specification
Full specification
Technical 18
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Power Supply Connection | Arbitrary |
| Contact Position Indication | ON / OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Tightening Torque | 2 N·m |
| Screw Terminal Type | Cage Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Conductor 25 / 25 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
Electrical 11
| Tripping Characteristic | C |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 230 V |
| Operational Voltage | Maximum (Incl. Tolerance) 253 V AC, Minimum 12 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 10 A |
| Rated Short-Circuit Capacity | (AC) 10 kA, (230 / 400 V AC) 10 kA, (230 V) 10 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 2.1 W, at Rated Operating Conditions per Pole 2.1 W |
| Overvoltage Category | III |
Design 1
| Housing Material | Insulation Group II, RAL 7035 |
|---|
Show all 72 specifications ↓ Show less ↑42 more values in Identification, Material Compliance, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.
Identification 11
| Part number | 2CDS271011R0104 |
|---|---|
| Type designation | SH201M-C10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779699488 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 1.06 kg |
Material Compliance 6
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
Environmental 7
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, Enclosure with Cover IP40 |
| Pollution Degree | 2 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Dimensions 7
| Width in Number of Modular Spacings | 1 |
|---|---|
| Product Net Width | 17.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.102 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
Installation 2
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|---|---|
| Mounting Position | any |
External Classifications and Standards 5
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-1 |
| Certification Agency | EN, IEC |
Logistics 4
| Shipping weight | 0.102 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 2CDS271011R0104
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 9 ratings in ABB SH200
ABB ABB SH200 series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 6 A | 2CDS271011R0064 | SH201M-C6 | In stock | $9.40 | |||
| 10 A | 2CDS271011R0104 This part | SH201M-C10 | In stock | $7.84 | |||
| 16 A | 2CDS271011R0164 | SH201M-C16 | On request | — | $7.84 | Quote | |
| 20 A | 2CDS271011R0204 | SH201M-C20 | In stock | $8.15 | |||
| 25 A | 2CDS271011R0254 | SH201M-C25 | In stock | $8.15 | |||
| 32 A | 2CDS271011R0324 | SH201M-C32 | In stock | $10.19 | |||
| 40 A | 2CDS271011R0404 | SH201M-C40 | In stock | $10.60 | |||
| 50 A | 2CDS271011R0504 | SH201M-C50 | In stock | $12.22 | |||
| 63 A | 2CDS271011R0634 | SH201M-C63 | In stock | $13.86 |
Certifications
Certifications and standards
- RoHS
- IEC/EN 60898-1
Quick answers
Questions about the SH201M-C10
What is the rated current of SH201M-C10?
The rated current of SH201M-C10 is 10 A.
What is the HS code of SH201M-C10 for customs?
The tariff (HS) code on file for SH201M-C10 is 853620.
What is the EAN of SH201M-C10?
The EAN (GTIN) of SH201M-C10 is 4016779699488.
Where does SH201M-C10 ship from, and how fast?
SH201M-C10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
