Part number
2CDS253001R0824
Model no
S203-C100
$133.75 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

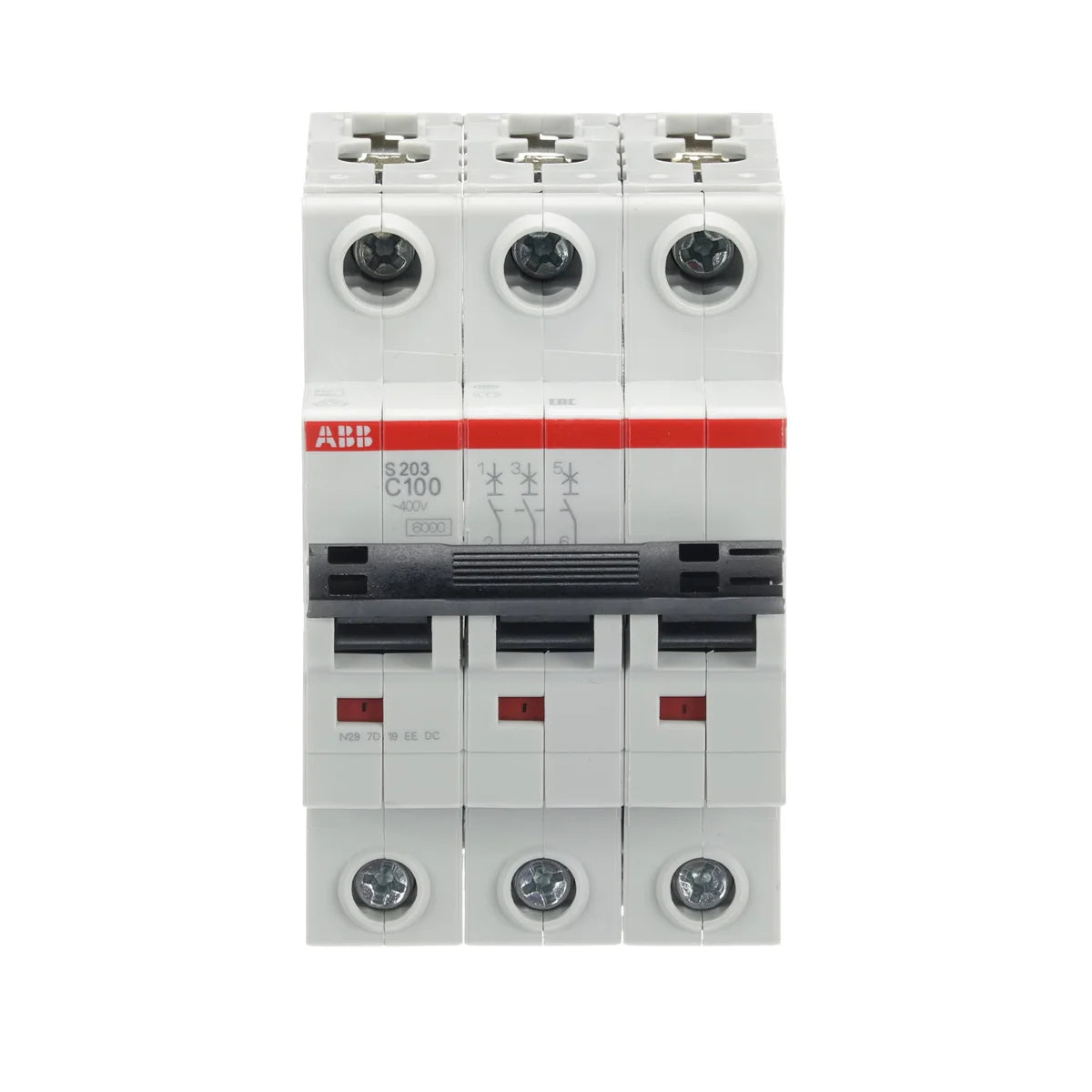

ABB 2CDS253001R0824 S203-C100 3P 100A 6kA 400V AC Miniature Circuit Breaker (MCB)

Rated current
100 A
Rated operational voltage
400 V AC
Poles
3P
Breaking capacity
(230) 10 kA
EAN
4016779916288
Other ratings in ABB S200 All 2 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
80 2CDS253001R0804 In stock $107.00
100 2CDS253001R0824This part In stock $133.75
Description

About the S203-C100

The ABB S203-C100 miniature circuit breaker (SKU: 2CDS253001R0824) is a 3-pole, 100 A, 6 kA breaking capacity MCB rated at 400 V AC, designed for reliable overload and short-circuit protection in industrial and commercial control panels. Part of ABB's trusted S200 series, the S203-C100 features a Type C tripping characteristic suitable for loads with moderate inrush currents such as motors, transformers, and capacitive loads. Its compact 52.5 mm × 88 mm × 69 mm footprint and 0.36 kg weight make it ideal for space-conscious panel designs.

Certifications & Standards

  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — authorised for placement on the Great Britain market
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — SVHC compliant
  • WEEE: Waste Electrical and Electronic Equipment Directive — compliant with EU Directive 2012/19/EU
  • IEC 60898-1: International standard for circuit breakers for overcurrent protection in household and similar installations
  • EN 60898-1: European harmonised standard equivalent to IEC 60898-1
  • IEC/EN 60898-1: Combined IEC and EN compliance for circuit breaker performance and safety
  • IEC 60898: Broader IEC standard family for circuit breakers
  • IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
  • EN 60664: European harmonised insulation coordination standard
  • IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers (industrial application)
  • EN 60947-2: European harmonised standard for low-voltage circuit breakers
  • IEC 60947: General rules for low-voltage switchgear and controlgear
  • IEC 60068-2: Environmental testing — mechanical and climatic test methods

Applications & Use Cases

  • Overload and short-circuit protection in industrial control panels and distribution boards
  • Protection of motors, transformers, and capacitive loads (Type C characteristic)
  • Commercial building electrical distribution systems at 400 V AC
  • Machine tool and automation panel protection
  • Sub-distribution boards in manufacturing facilities
Specification

Full specification

75 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 10 kA, (400 V AC) 6 kA, (400 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (400 V AC) 6 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 3
Number of Poles 3P
Tightening Torque 3 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 16/16 mm², Conductor 2.5 ... 50 mm², Flexible 4 ... 35 mm², Rigid 2.5 ... 50 mm², Stranded 2.5 ... 50 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 400 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC
Rated Current (In) 100 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA, (230 V AC) 6 kA, (400 V AC) 6 kA, (400 V) 6 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss 29.4 W, at Rated Operating Conditions per Pole 9.8 W
Overvoltage Category III

Design 1

Housing Material Insulation Group I, RAL 7035
Show all 75 specifications ↓ Show less ↑43 more values in Identification, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS253001R0824
Type designation S203-C100
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779916288
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.6 kg

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 6

Width in Number of Modular Spacings 3
Product Net Width 52.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.36 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC185394_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 16.0 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS253001R0824

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 2 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
80 A 2CDS253001R0804 S203-C80 In stock $107.00
100 A 2CDS253001R0824 This part S203-C100 In stock $133.75
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
Quick answers

Questions about the S203-C100

What is the rated current of S203-C100?

The rated current of S203-C100 is 100 A.

Which supply voltage is S203-C100 rated for?

The rated operational voltage of S203-C100 is 400 V AC.

What is the HS code of S203-C100 for customs?

The tariff (HS) code on file for S203-C100 is 853620.

What is the EAN of S203-C100?

The EAN (GTIN) of S203-C100 is 4016779916288.

Where does S203-C100 ship from, and how fast?

S203-C100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
