Part number
2CDS251001R0824
Model no
S201-C100
$29.73 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

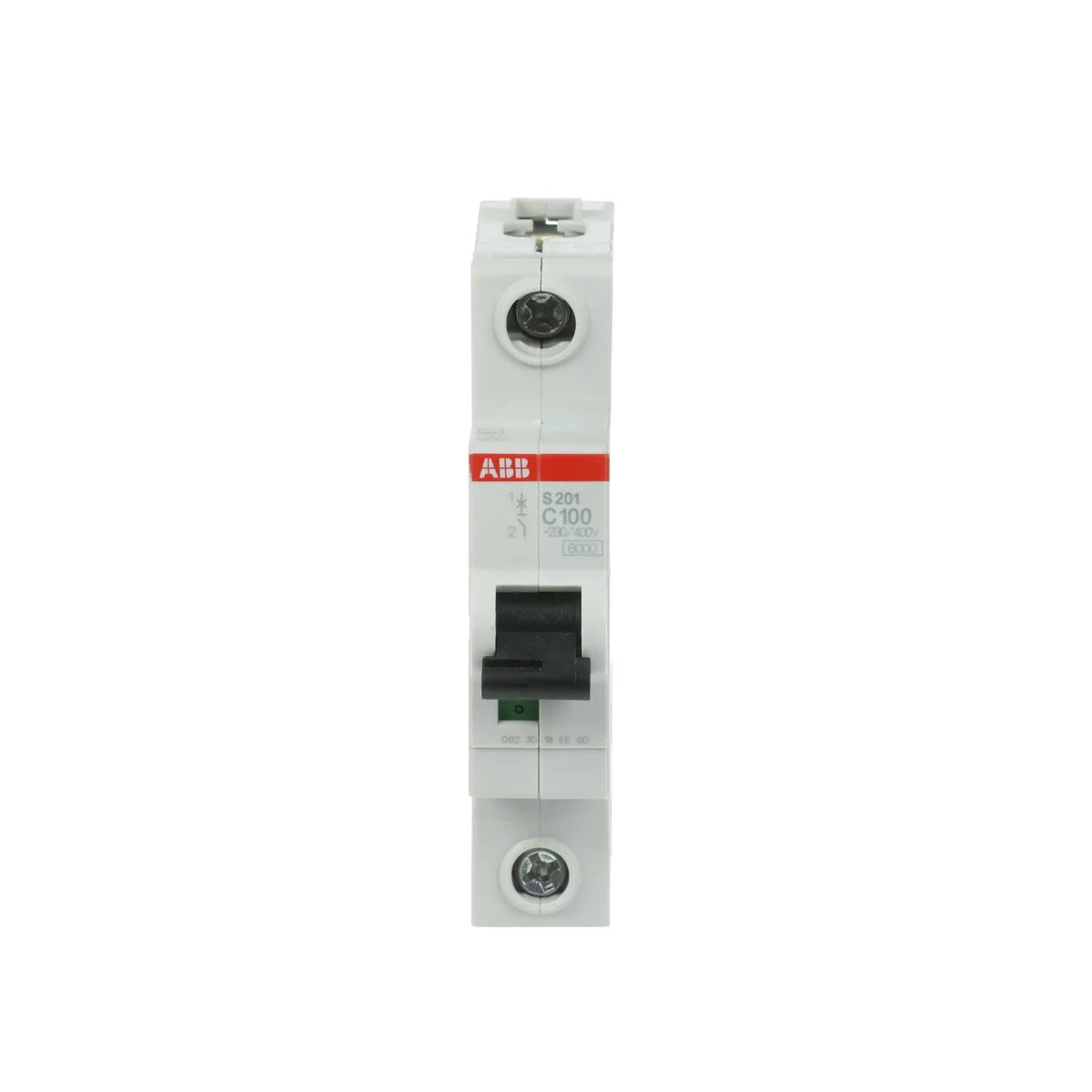

ABB 2CDS251001R0824 S201-C100 1P 100A 10kA Curve-C Miniature Circuit Breaker

Rated current
100 A
Rated operational voltage
230–400 V AC
Poles
1P
Breaking capacity
(230) 6 kA
EAN
4016779916523
Other ratings in ABB S200 All 2 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
80 2CDS251001R0804 In stock $23.78
100 2CDS251001R0824This part In stock $29.73
Description

About the S201-C100

The ABB S201-C100 miniature circuit breaker (SKU: 2CDS251001R0824) is a 1-pole, 100 A, C-curve MCB from the ABB S200 series, rated for 230/400 V AC with a breaking capacity of 10 kA at 400 V AC. Designed for industrial control panels and distribution boards, the S201-C100 provides reliable overcurrent and short-circuit protection in demanding environments, conforming to IEC 60898-1 and EN 60898-1 standards.

Certifications & Standards

  • CE: Conformité Européenne — meets EU health, safety, and environmental requirements
  • UKCA: UK Conformity Assessed — meets Great Britain market requirements post-Brexit
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU compliance
  • WEEE: Waste Electrical and Electronic Equipment Directive — compliant with EU Directive 2012/19/EU
  • IEC 60898-1: International standard for circuit breakers for overcurrent protection in household and similar installations
  • EN 60898-1: European harmonised standard equivalent to IEC 60898-1
  • IEC/EN 60898-1: Combined IEC and EN standard for miniature circuit breaker performance and testing
  • IEC 60898-1230: Supplementary IEC standard specification for miniature circuit breakers
  • IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
  • EN 60664: European standard for insulation coordination in low-voltage systems
  • IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers
  • EN 60947-2: European standard for low-voltage circuit breaker performance
  • IEC 60947: General rules for low-voltage switchgear and controlgear
  • IEC 60068-2: Environmental testing for electronic and electrical components
Specification

Full specification

75 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 / 400 V AC) 6 kA, (230 V AC) 6 kA, (400 V AC) 10 kA, (230 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 6 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 3 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 16/16 mm², Conductor 2.5 ... 50 mm², Flexible 4 ... 35 mm², Rigid 2.5 ... 50 mm², Stranded 2.5 ... 50 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 230/400 V AC, acc. to IEC 60947-2 230 V AC
Operational Voltage Maximum (Incl. Tolerance) 253 / 440 V AC, Maximum (Incl. Tolerance) 60 V DC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC
Rated Current (In) 100 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA, (60 V DC) 6 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss 9.8 W, at Rated Operating Conditions per Pole 9.8 W
Overvoltage Category III

Design 1

Housing Material Insulation Group I, RAL 7035
Show all 75 specifications ↓ Show less ↑43 more values in Identification, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS251001R0824
Type designation S201-C100
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779916523
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 10 piece
Package Level 1 Gross Weight 1.24 kg

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 6

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 85 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.12 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC185394_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 1.3 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS251001R0824

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 2 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
80 A 2CDS251001R0804 S201-C80 In stock $23.78
100 A 2CDS251001R0824 This part S201-C100 In stock $29.73
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
Quick answers

Questions about the S201-C100

What is the rated current of S201-C100?

The rated current of S201-C100 is 100 A.

Which supply voltage is S201-C100 rated for?

The rated operational voltage of S201-C100 is 230–400 V AC.

What is the HS code of S201-C100 for customs?

The tariff (HS) code on file for S201-C100 is 853620.

What is the EAN of S201-C100?

The EAN (GTIN) of S201-C100 is 4016779916523.

Where does S201-C100 ship from, and how fast?

S201-C100 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
