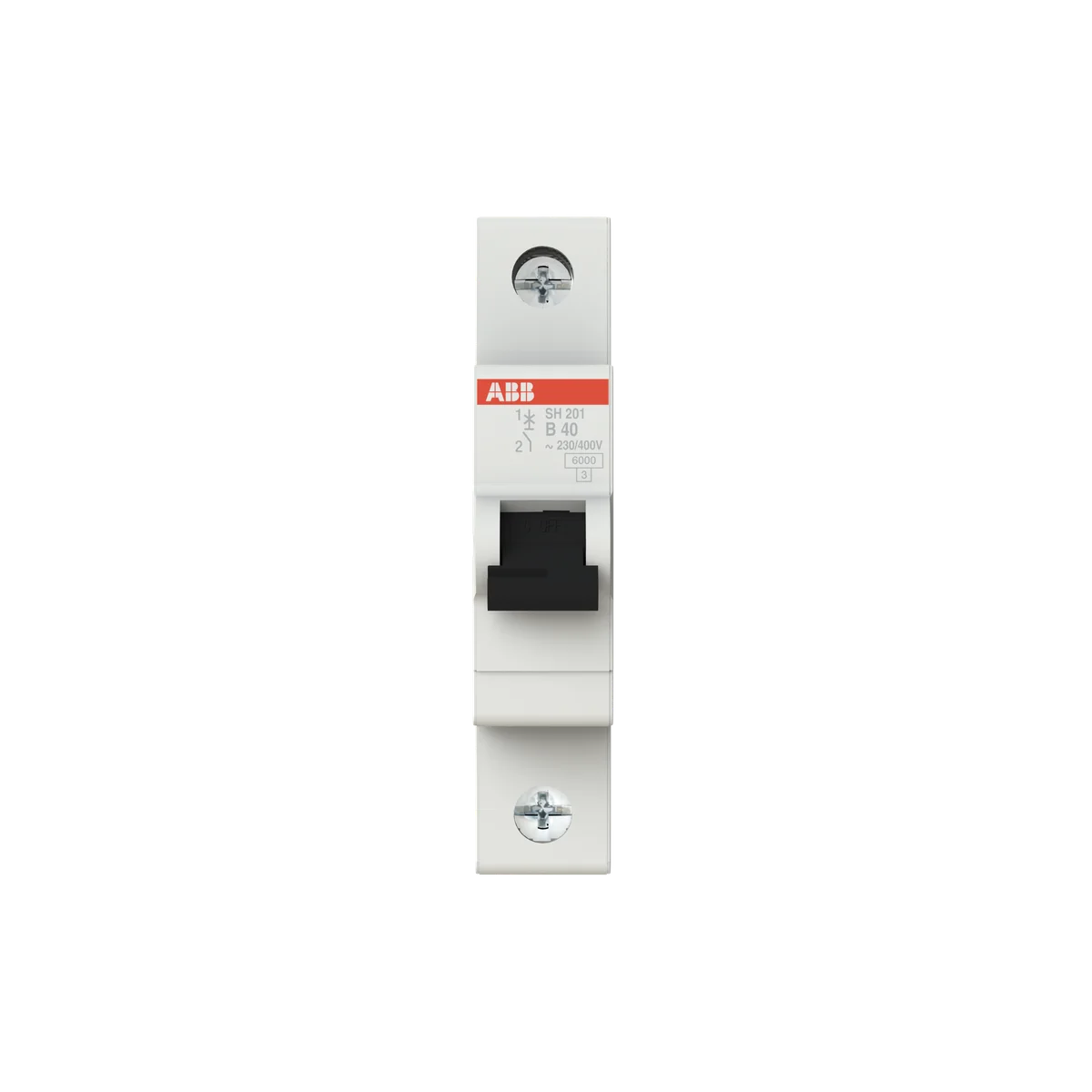

ABB 2CDS211001R0405 SH201-B40 1P 40A 6kA B-Curve 230/400V AC Miniature Circuit Breaker

The ABB SH201-B40 miniature circuit breaker (MCB), catalog number SH201-B40 / SKU 2CDS211001R0405, is a 1-pole, 40 A, B-curve device rated at 230/400 V AC with a breaking capacity of 6 kA. Designed for residential and light commercial distribution boards, this SH200 series MCB provides reliable overcurrent and short-circuit protection for final circuits in control panels and building installations.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International and European standard for household and similar installations miniature circuit breakers
• IEC 60898-1: IEC standard for circuit breakers for overcurrent protection in household and similar installations
• EN 60898-1: European harmonised standard for miniature circuit breakers
• IEC/EN60898-1: Combined IEC/EN compliance for MCB performance and safety
• IEC 60898: Broader IEC framework for miniature circuit breaker requirements
• IEC 60068-2: Environmental testing standard for climatic and mechanical durability
• EN45555: General methods for the assessment of the ability of energy-related products to be repaired, reused and recycled
• EN45555-92: Extended provisions under EN45555 sustainability assessment
• EN60664: Insulation coordination for equipment within low-voltage systems
• EN60898-1: EN standard for circuit breakers — overcurrent protection in household and similar installations
• REACH: EU Regulation (EC) No 1907/2006 — compliance with chemical substance restrictions
• RoHS: EU Directive 2011/65/EU — restriction of hazardous substances in electrical and electronic equipment
• SNI: Indonesian National Standard certification
• WEEE: EU Directive 2012/19/EU — waste electrical and electronic equipment compliance
