ABB 2CDD284101R0032 SD204/32 4P 32A 440V AC Switch Disconnector

% $-54.49

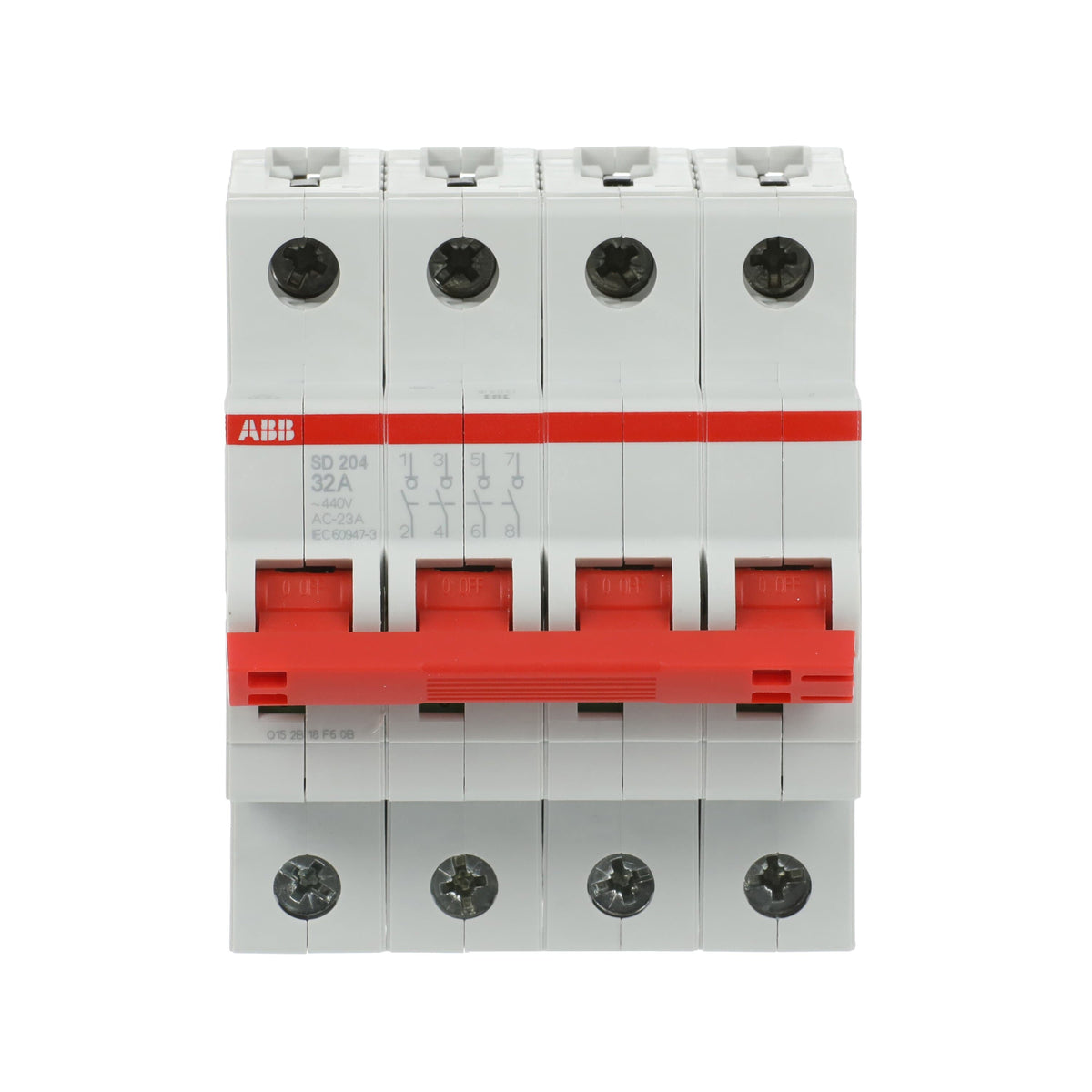

ABB SD204/32 2CDD284101R0032 4P 32A switch disconnector - 440V AC
ABB SD204/32 2CDD284101R0032 4P 32A switch disconnector - 440V AC

ABB 2CDD284101R0032 SD204/32 4P 32A 440V AC Switch Disconnector

Brand: ABB
Reference No: 2CDD284101R0032
Catalog No: SD204/32
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 32
Rated Voltage: 440 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$54.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Where its 25 A sibling covers lighter loads, the ABB SD204/32 (SKU 2CDD284101R0032) extends the same four-pole platform to 32 A, still at up to 440 V AC with a 25 kA conditional short-circuit rating. It keeps the four-module width and four NO contacts of the lower-current variant, so retrofitting a panel for higher load current needs no extra DIN-rail space.

Technical Specifications

SKU 2CDD284101R0032
Brand ABB
Series Switch Disconnectors
Catalog Designation SD204/32
EAN 4016779904261
Number of Poles 4P
Rated Current (In) 32 A
Rated Operational Voltage 440 V AC
Rated Voltage (Ur) 440 V (12 V minimum)
Rated Short-Circuit Capacity 25 kA at 230/400 V AC
Rated Conditional Short-Circuit Current (Inc) 25 kA
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Degree of Protection IP20 (IP40 with cover)
Pollution Degree 3
Connecting Capacity Flexible 0.75-25 mm² / Rigid 0.75-35 mm²
Width 70 mm (4 modules)
Net Weight 0.34 kg
Mounting Type DIN-Rail

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

The SD204/32 brings the four-pole, phase-plus-neutral isolation of the SD204 family up to In 32 A, for circuits whose continuous current exceeds the 25 A variant's rating. The 4-module, 70 mm width stays the same across both current ratings, so upgrading from the lower-current device to this one needs no extra panel space. As a disconnector it isolates rather than interrupts fault current, so size the upstream protective device to the circuit independently.

Technical Details

Short Description
ABB SD204/32 4P switch disconnector, In 32 A, 440 V AC, 25 kA conditional short-circuit rating, DIN-rail mounted.
Rated Current (Ampere)
32
Rated Voltage (VAC)
440 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SD204/32
Number of Poles
4P
Standards
IEC/EN 60947-3
Delivery Date (Days)
30 days
Model Number
SD204/32
Tariff Code
853650
