ABB 2CDD283101R0032 SD203/32 3P 32A 440V AC Switch Disconnector

% $-40.80

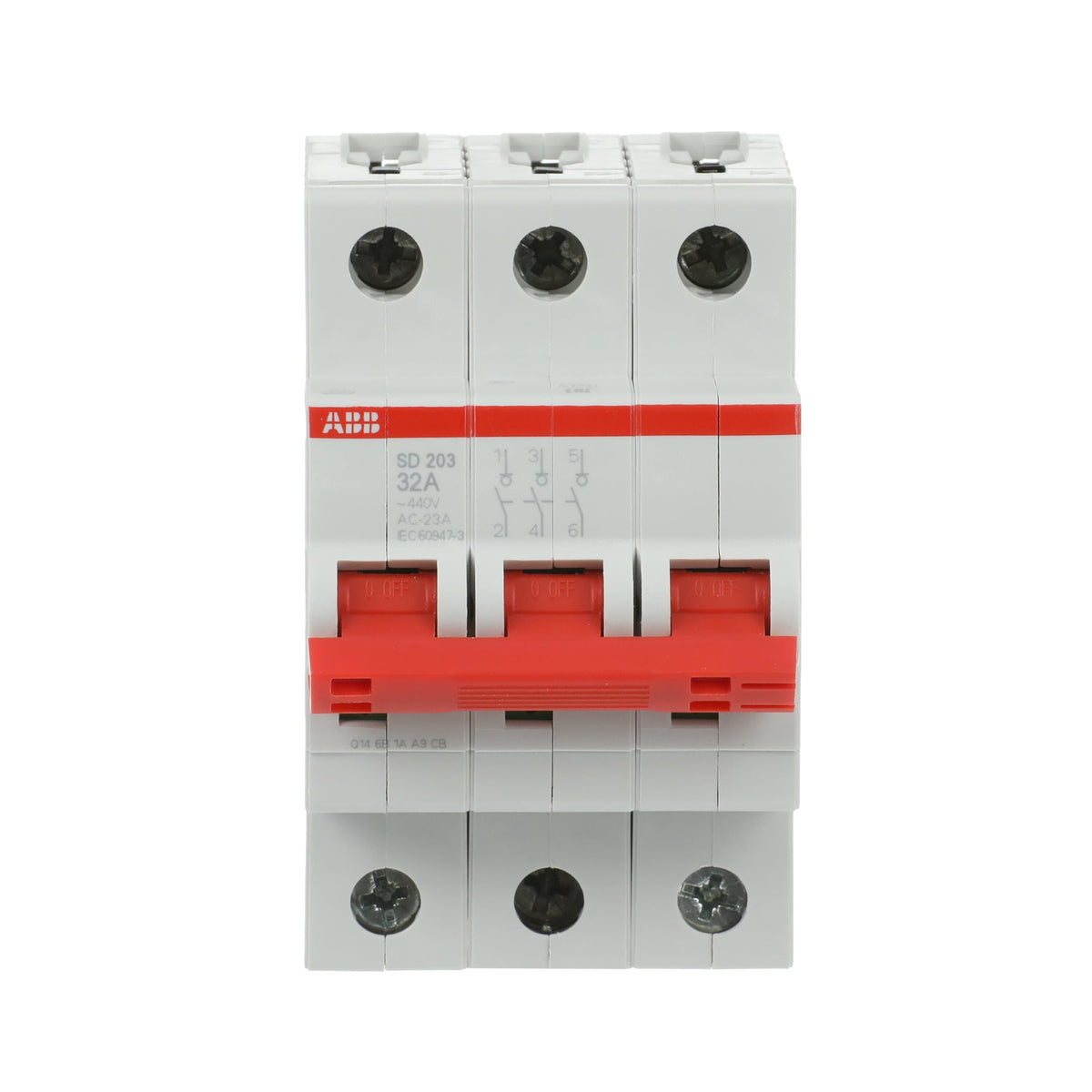

ABB SD203/32 2CDD283101R0032 3P 32A switch disconnector - 440V AC
ABB SD203/32 2CDD283101R0032 3P 32A switch disconnector - 440V AC

ABB 2CDD283101R0032 SD203/32 3P 32A 440V AC Switch Disconnector

Brand: ABB
Reference No: 2CDD283101R0032
Catalog No: SD203/32
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 32
Rated Voltage: 440 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$40.80

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

At 32 A and up to 440 V AC, the ABB SD203/32 (SKU 2CDD283101R0032) is the higher-current three-pole variant in the SD203 switch disconnector line. Like the 25 A version, it spans three 17.5 mm modules and carries a 25 kA conditional short-circuit rating, so the only real selection criterion between the two is the three-phase load current it needs to isolate.

Technical Specifications

SKU 2CDD283101R0032
Brand ABB
Series Switch Disconnectors
Catalog Designation SD203/32
EAN 4016779904209
Number of Poles 3P
Rated Current (In) 32 A
Rated Operational Voltage 440 V AC
Rated Voltage (Ur) 440 V (12 V minimum)
Rated Short-Circuit Capacity 25 kA at 230/400 V AC
Rated Conditional Short-Circuit Current (Inc) 25 kA
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Degree of Protection IP20 (IP40 with cover)
Pollution Degree 3
Connecting Capacity Flexible 0.75-25 mm² / Rigid 0.75-35 mm²
Width 52.5 mm (3 modules)
Net Weight 0.255 kg
Mounting Type DIN-Rail

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

At In 32 A, the SD203/32 extends the three-pole SD203 disconnector to heavier three-phase loads than its 25 A sibling while keeping the same 52.5 mm, 3-module width. Three-pole switching disengages all three phases together, important for safe isolation of three-phase motors or sub-distribution without disturbing a separate neutral. Because it is rated for load switching, not fault interruption, pair it with upstream short-circuit protection sized to the circuit.

Technical Details

Short Description
ABB SD203/32 3P switch disconnector, In 32 A, 440 V AC, 25 kA conditional short-circuit rating, DIN-rail mounted.
Rated Current (Ampere)
32
Rated Voltage (VAC)
440 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SD203/32
Number of Poles
3P
Standards
IEC/EN 60947-3
Delivery Date (Days)
30 days
Model Number
SD203/32
Tariff Code
853650
