ABB 2CDD282101R0032 SD202/32 2P 32A 440V AC Switch Disconnector

% $-26.01

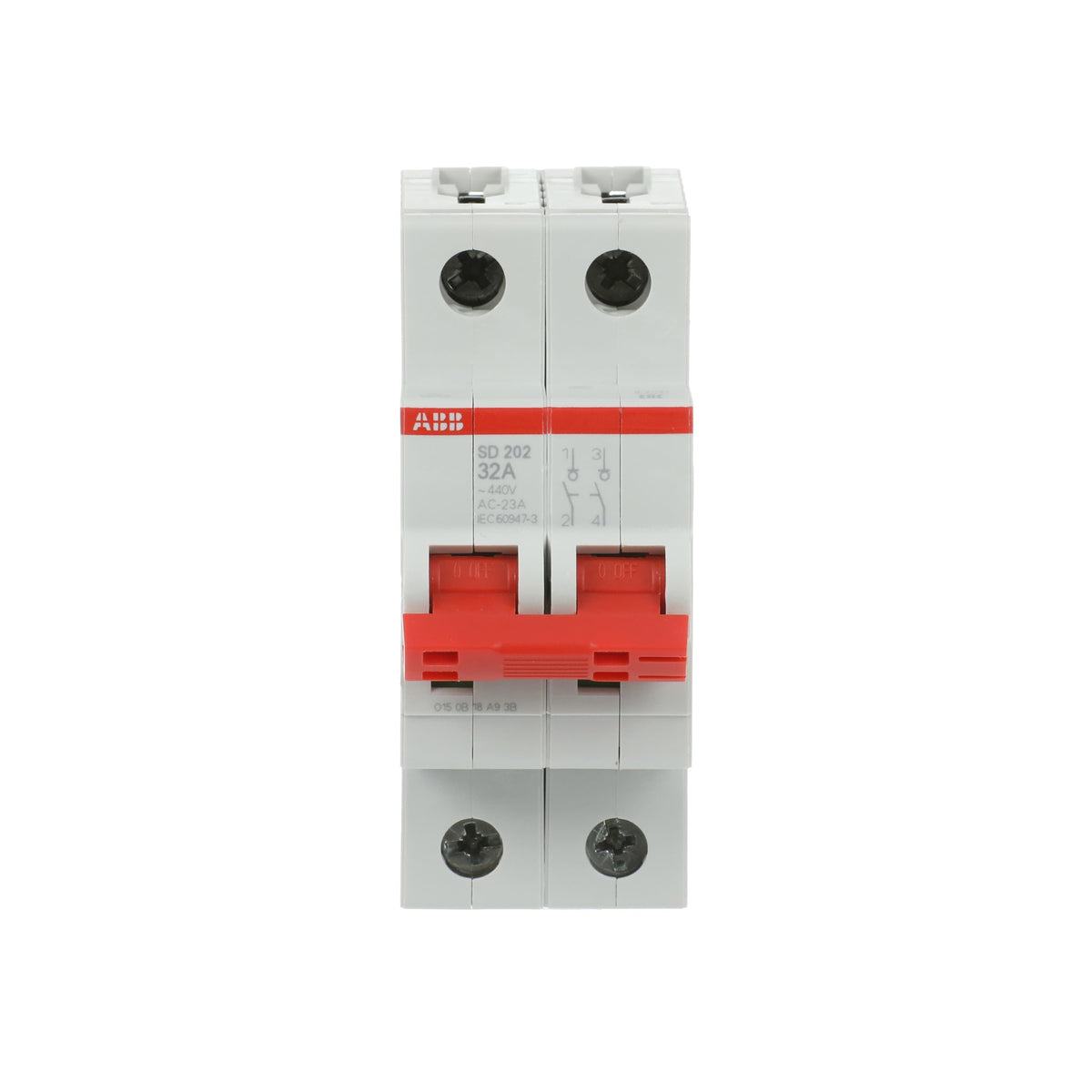

ABB SD202/32 2CDD282101R0032 2P 32A switch disconnector - 440V AC
ABB SD202/32 2CDD282101R0032 2P 32A switch disconnector - 440V AC

ABB 2CDD282101R0032 SD202/32 2P 32A 440V AC Switch Disconnector

Brand: ABB
Reference No: 2CDD282101R0032
Catalog No: SD202/32
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 32
Rated Voltage: 440 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$26.01

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB SD202/32 (SKU 2CDD282101R0032) steps the two-pole SD202 switch disconnector up to 32 A while keeping the same 440 V AC rating and 25 kA conditional short-circuit current as the 25 A version. Two modules wide, it mounts on standard DIN rail and switches both poles of a circuit simultaneously through a single toggle actuator.

Technical Specifications

SKU 2CDD282101R0032
Brand ABB
Series Switch Disconnectors
Catalog Designation SD202/32
EAN 4016779904148
Number of Poles 2P
Rated Current (In) 32 A
Rated Operational Voltage 440 V AC / 125 V DC
Rated Voltage (Ur) 440 V (12 V minimum)
Rated Short-Circuit Capacity 25 kA at 230/400 V AC
Rated Conditional Short-Circuit Current (Inc) 25 kA
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Degree of Protection IP20 (IP40 with cover)
Pollution Degree 3
Connecting Capacity Flexible 0.75-25 mm² / Rigid 0.75-35 mm²
Width 35 mm (2 modules)
Net Weight 0.17 kg
Mounting Type DIN-Rail

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

Stepping up to In 32 A, the SD202/32 handles heavier two-pole loads than its 25 A counterpart while keeping the same 35 mm, 2-module width and 440 V AC rating. Two-pole switching disconnects both conductors together, useful on circuits without a dedicated neutral reference. As with the rest of the SD200 line, size it to the connected load's current since it isolates rather than trips on overcurrent.

Technical Details

Short Description
ABB SD202/32 2P switch disconnector, In 32 A, 440 V AC, 25 kA conditional short-circuit rating, DIN-rail mounted.
Rated Current (Ampere)
32
Rated Voltage (VAC)
440 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SD202/32
Number of Poles
2P
Standards
IEC/EN 60947-3
Delivery Date (Days)
30 days
Model Number
SD202/32
Tariff Code
853650
