ABB 2CDD282101R0025 SD202/25 2P 25A 440V AC Switch Disconnector

% $-24.38

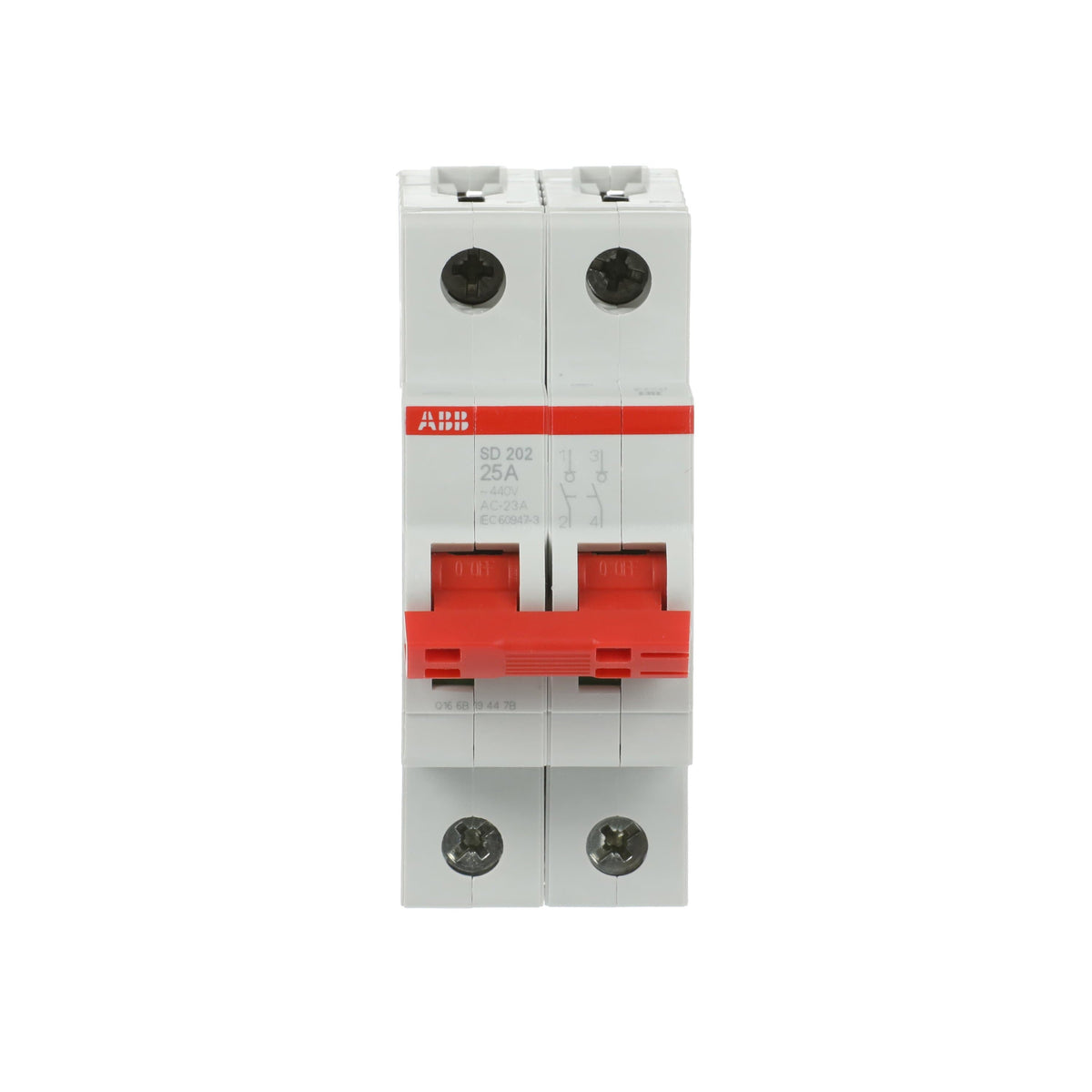

ABB SD202/25 2CDD282101R0025 2P 25A switch disconnector - 440V AC
ABB SD202/25 2CDD282101R0025 2P 25A switch disconnector - 440V AC

ABB 2CDD282101R0025 SD202/25 2P 25A 440V AC Switch Disconnector

Brand: ABB
Reference No: 2CDD282101R0025
Catalog No: SD202/25
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 25
Rated Voltage: 440 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

For two-pole isolation at up to 440 V AC, ABB offers the SD202/25 (SKU 2CDD282101R0025), a 25 A DIN-rail switch disconnector built on the same SD200 platform as its single-pole counterpart. Its two modules house two NO contacts with ON/OFF position indication and a 25 kA conditional short-circuit rating, so it isolates both poles of a two-wire circuit with a single toggle.

Technical Specifications

SKU 2CDD282101R0025
Brand ABB
Series Switch Disconnectors
Catalog Designation SD202/25
EAN 4016779904131
Number of Poles 2P
Rated Current (In) 25 A
Rated Operational Voltage 440 V AC / 125 V DC
Rated Voltage (Ur) 440 V (12 V minimum)
Rated Short-Circuit Capacity 25 kA at 230/400 V AC
Rated Conditional Short-Circuit Current (Inc) 25 kA
Rated Impulse Withstand Voltage (Uimp) 4 kV
Overvoltage Category III
Degree of Protection IP20 (IP40 with cover)
Pollution Degree 3
Connecting Capacity Flexible 0.75-25 mm² / Rigid 0.75-35 mm²
Width 35 mm (2 modules)
Net Weight 0.17 kg
Mounting Type DIN-Rail

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

The SD202/25's two poles switch both conductors of a two-wire circuit simultaneously, which matters where local codes or equipment require double-pole isolation rather than single-pole switching. At 440 V AC and In 25 A, it fits lighter two-pole loads; heavier ones fit the 32 A version in the same 2-module frame. Like all SD200-series disconnectors, it isolates but does not interrupt fault current, so it belongs upstream of a fuse or breaker, not in place of one.

Technical Details

Short Description
ABB SD202/25 2P switch disconnector, In 25 A, 440 V AC, 25 kA conditional short-circuit rating, DIN-rail mounted.
Rated Current (Ampere)
25
Rated Voltage (VAC)
440 V
Mounting Type
DIN-Rail
Protection Type
IP20
Catalog No
SD202/25
Number of Poles
2P
Standards
IEC/EN 60947-3
Delivery Date (Days)
30 days
Model Number
SD202/25
Tariff Code
853650
